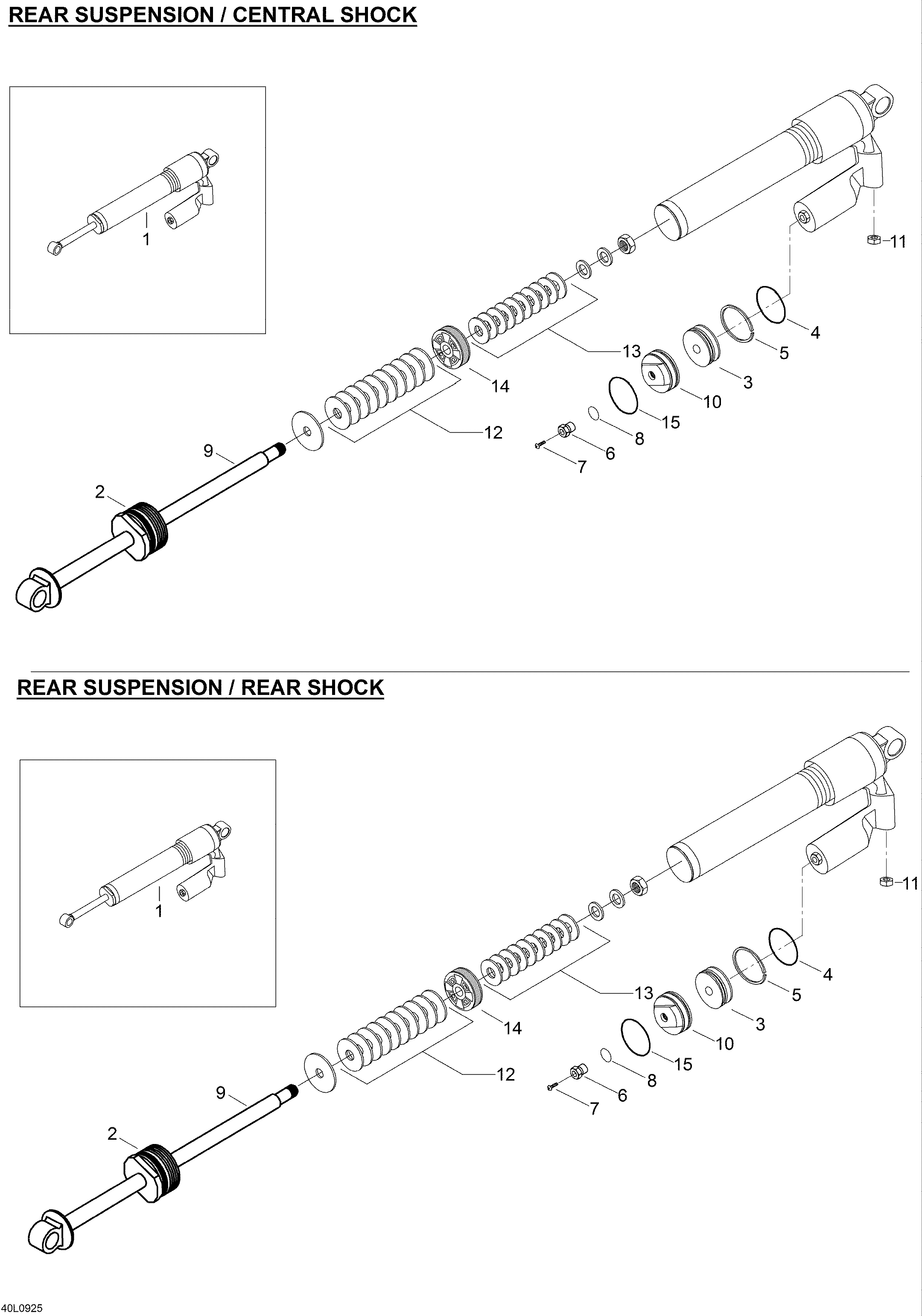

07- Take Apart Shock rear для BRP Lynx Rave RE 600 E-TEC - 2009

  • №
    Артикул
    Название
  • 4
    415093807 O-ring
    O-ring
  • 5
    503189006 Piston ring
    Piston ring
  • 6
    505070398 Air valve ass'y
    Air valve ass'y
  • 7
    505070399 Screw
    Screw
  • 8
    505070400 O-ring
    O-ring
  • 10
    619300009 Seal carrier assy
    Seal carrier assy
  • 12
    230029 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 12
    230030 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 12
    230031 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 12
    230032 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 12
    503189016 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 12
    503189017 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 12
    503189018 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 12
    503189019 Leaf valve 24x0.254
    Leaf valve 24x0.254
  • 12
    503189021 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 12
    503189022 Leaf valve 26x0.152
    Leaf valve 26x0.152
  • 12
    503189024 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 12
    503189027 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 12
    503189028 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 12
    503189029 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 12
    503189031 Leaf valve 30x0.114
    Leaf valve 30x0.114
  • 12
    503189032 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 12
    503189033 Leaf valve 30x0.203
    Leaf valve 30x0.203
  • 12
    230082 Leaf valve 32x0.114
    Leaf valve 32x0.114
  • 12
    230033 Leaf valve 34x0.114
    Leaf valve 34x0.114
  • 12
    230034 Leaf valve 34x0.152
    Leaf valve 34x0.152
  • 12
    230035 Leaf valve 34x0.203
    Leaf valve 34x0.203
  • 12
    230036 Leaf valve 34x0.254
    Leaf valve 34x0.254
  • 12
    230037 Leaf valve 36x0.114
    Leaf valve 36x0.114
  • 12
    503189036 Leaf valve 36x0.152
    Leaf valve 36x0.152
  • 12
    503189037 Leaf valve 36x0.203
    Leaf valve 36x0.203
  • 12
    503189038 Leaf valve 36x0.254
    Leaf valve 36x0.254
  • 12
    230040 Leaf valve 38x0.152
    Leaf valve 38x0.152
  • 12
    230041 Leaf valve 38x0.203
    Leaf valve 38x0.203
  • 12
    230042 Leaf valve 38x0.254
    Leaf valve 38x0.254
  • 12
    503189039 Leaf valve 40x0.114
    Leaf valve 40x0.114
  • 12
    503189040 Leaf valve 40x0.203
    Leaf valve 40x0.203
  • 12
    503189041 Leaf valve 40x0.254
    Leaf valve 40x0.254
  • 13
    230029 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 13
    230030 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 13
    230031 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 13
    230032 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 13
    503189013 Leaf valve 22x0.203
    Leaf valve 22x0.203
  • 13
    503189014 Leaf valve 22x0.254
    Leaf valve 22x0.254
  • 13
    503189016 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 13
    503189017 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 13
    503189018 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 13
    503189019 Leaf valve 24x0.254
    Leaf valve 24x0.254
  • 13
    503189020 Leaf valve 24x0.305
    Leaf valve 24x0.305
  • 13
    503189021 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 13
    503189022 Leaf valve 26x0.152
    Leaf valve 26x0.152
  • 13
    503189024 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 13
    503189027 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 13
    503189028 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 13
    503189029 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 13
    503189031 Leaf valve 30x0.114
    Leaf valve 30x0.114
  • 13
    503189032 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 13
    503189033 Leaf valve 30x0.203
    Leaf valve 30x0.203
  • 13
    230082 Leaf valve 32x0.114
    Leaf valve 32x0.114
  • 13
    230033 Leaf valve 34x0.114
    Leaf valve 34x0.114
  • 13
    230034 Leaf valve 34x0.152
    Leaf valve 34x0.152
  • 13
    230035 Leaf valve 34x0.203
    Leaf valve 34x0.203
  • 13
    230036 Leaf valve 34x0.254
    Leaf valve 34x0.254
  • 13
    230037 Leaf valve 36x0.114
    Leaf valve 36x0.114
  • 13
    503189036 Leaf valve 36x0.152
    Leaf valve 36x0.152
  • 13
    503189037 Leaf valve 36x0.203
    Leaf valve 36x0.203
  • 13
    503189038 Leaf valve 36x0.254
    Leaf valve 36x0.254
  • 13
    230040 Leaf valve 38x0.152
    Leaf valve 38x0.152
  • 13
    230041 Leaf valve 38x0.203
    Leaf valve 38x0.203
  • 13
    230042 Leaf valve 38x0.254
    Leaf valve 38x0.254
  • 13
    503189039 Leaf valve 40x0.114
    Leaf valve 40x0.114
  • 13
    503189040 Leaf valve 40x0.203
    Leaf valve 40x0.203
  • 13
    503189041 Leaf valve 40x0.254
    Leaf valve 40x0.254
  • 14
    503189003 Piston 1.2 mm (front arm)
    Piston 1.2 mm (front arm)
  • 14
    503189002 Piston 1.7 mm (rear arm)
    Piston 1.7 mm (rear arm)
  • 14
    230039 Piston 2.0 mm
    Piston 2.0 mm
  • 14
    230043 Piston
    Piston
  • 15
    415093804 O-ring
    O-ring
