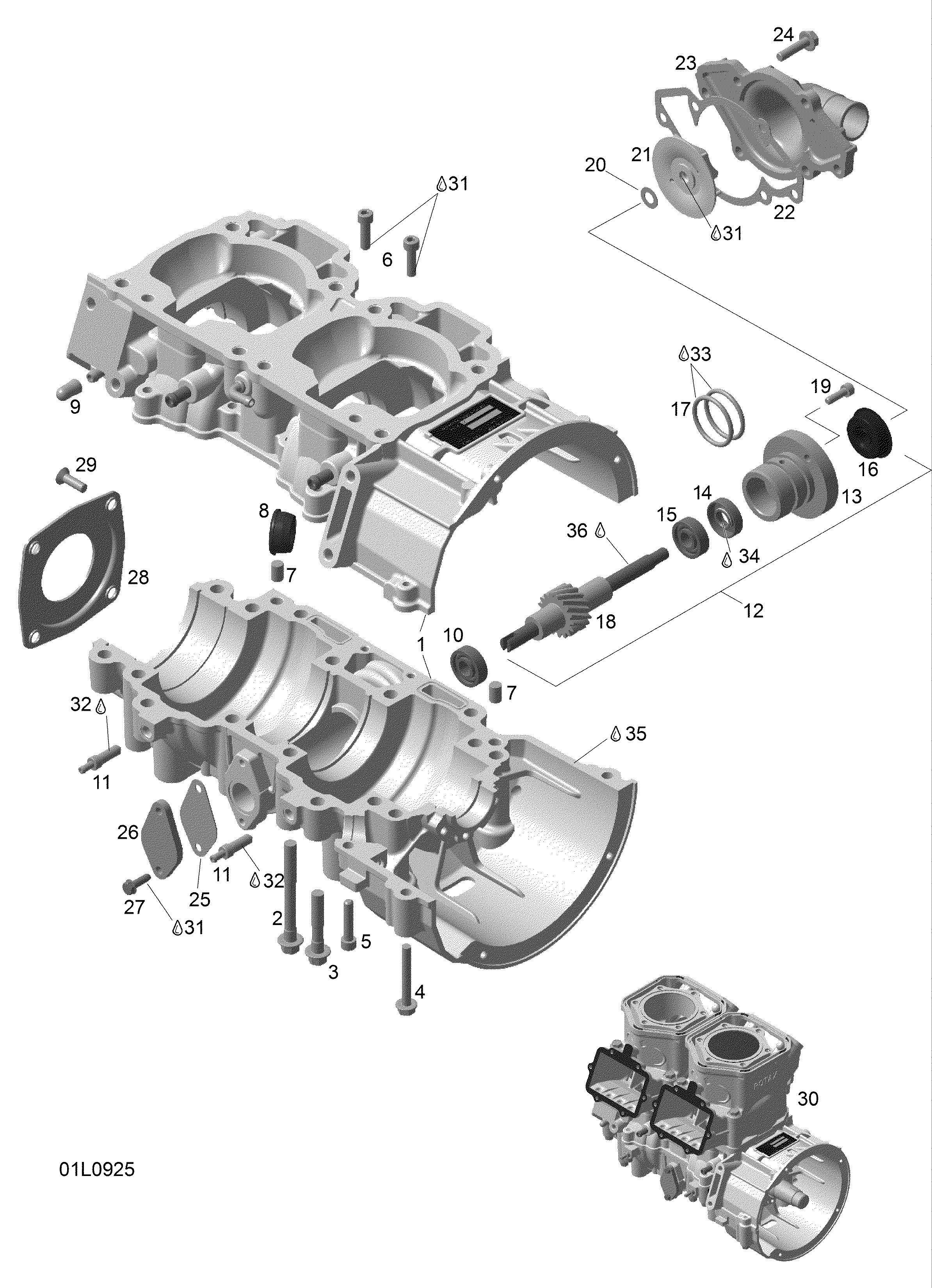

01- Crankcase для BRP Lynx Rave RE 600 E-TEC - 2009

  • №
    Артикул
    Название
  • 1
    420890222 Crankcase ass'y. Includes 1 to 12
    Crankcase ass'y. Includes 1 to 12
  • 2
    420640836 Hex. Collar screw M8 x 75
    Hex. Collar screw M8 x 75
  • 3
    420640431 Hex. Collar screw M8 x 45
    Hex. Collar screw M8 x 45
  • 4
    420640311 Hex. Collar screw M6 x 45
    Hex. Collar screw M6 x 45
  • 5
    205063044 Socket head screw M6 x 30
    Socket head screw M6 x 30
  • 6
    420840401 Socket head screw M6 x 22
    Socket head screw M6 x 22
  • 7
    420632010 Dowel pin
    Dowel pin
  • 8
    420660890 Cable grommet
    Cable grommet
  • 9
    420960770 Cap
    Cap
  • 10
    420232100 Ball bearing
    Ball bearing
  • 11
    420956070 Check valve
    Check valve
  • 12
    420837421 Water pump assy. Includes 13 to 18
    Water pump assy. Includes 13 to 18
  • 14
    420230196 Oil seal
    Oil seal
  • 15
    420232100 Ball bearing
    Ball bearing
  • 16
    420650370 Oil seal
    Oil seal
  • 17
    420950890 O-ring
    O-ring
  • 19
    420840511 Socket head screw M5 x 16
    Socket head screw M5 x 16
  • 20
    420227945 Thrust washer
    Thrust washer
  • 21
    420222505 Water impeller
    Water impeller
  • 22
    420931810 Gasket
    Gasket
  • 23
    420922630 Water pump housing
    Water pump housing
  • 24
    420240031 Hex. Screw M6 x 25
    Hex. Screw M6 x 25
  • 25
    420931565 Gasket
    Gasket
  • 26
    420810825 Cover plate
    Cover plate
  • 27
    420941925 Taptite screw M5 x 16
    Taptite screw M5 x 16
  • 28
    420812420 Oil seal cover
    Oil seal cover
  • 29
    420941436 Hexalobular countersunk screw M6x20
    Hexalobular countersunk screw M6x20
  • 30
    300059351 Short block assy
    Short block assy
  • 31
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 32
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 33
    293550033 Syntetic grease
    Syntetic grease
  • 34
    420899271 Grease Petamo Ghy 133N, 400 g
    Grease Petamo Ghy 133N, 400 g
  • 35
    420297906 Sealing compound, 30 ml
    Sealing compound, 30 ml
  • 36
    413802900 Injection oil (12 x1 liter)
    Injection oil (12 x1 liter)
