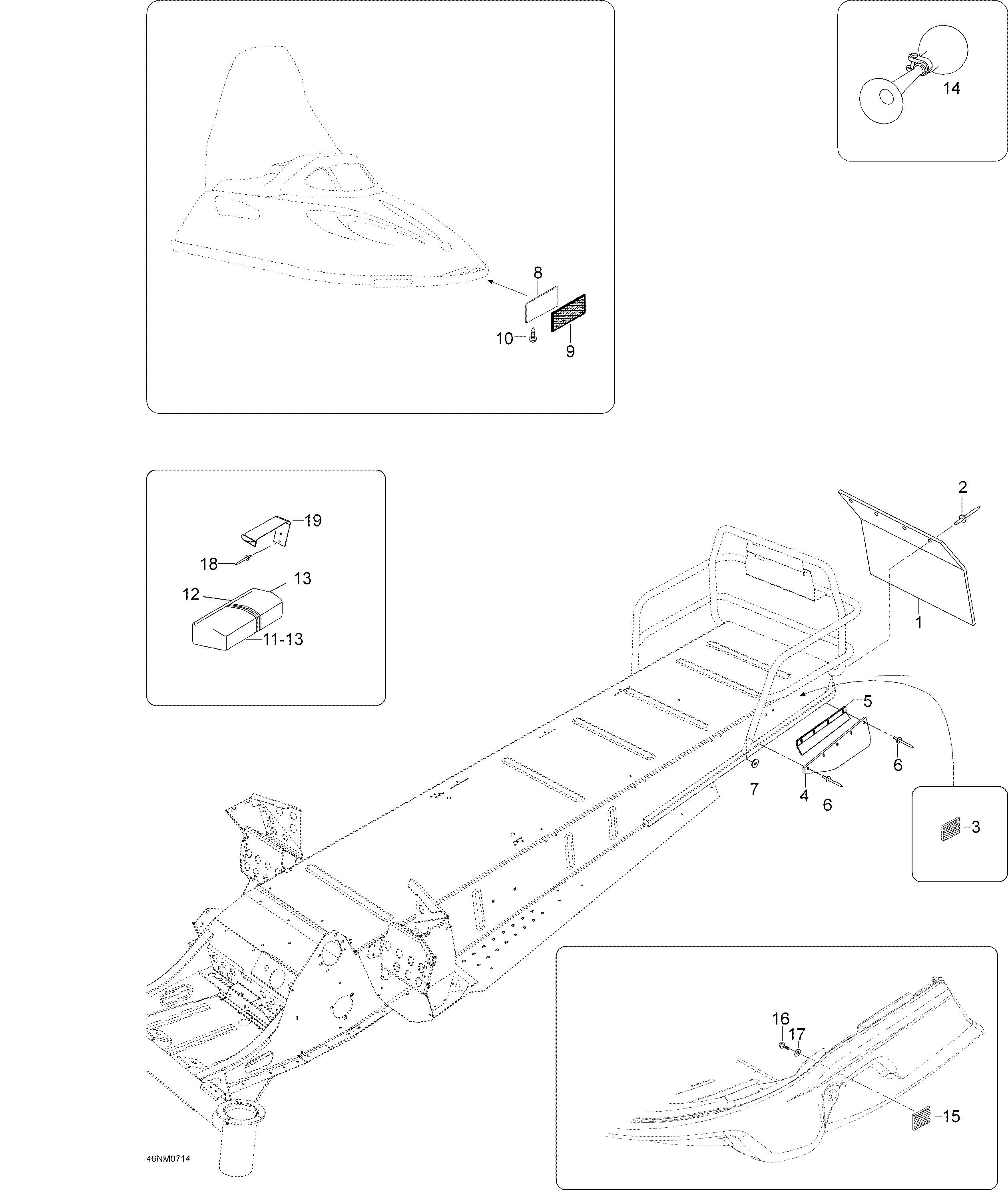

09- Utilities для BRP Lynx Forest Fox 440 El - 2007

  • №
    Артикул
    Название
  • 1
    534727 Snow guard
    Snow guard
  • 2
    36036 Rivet
    Rivet
  • 3
    21121 Reflector, yellow
    Reflector, yellow
  • 4
    5142828 Side snowguard
    Side snowguard
  • 5
    5346740 R.H. Support
    R.H. Support
  • 5
    5346741 L.H. Support
    L.H. Support
  • 6
    36097 Rivet
    Rivet
  • 7
    20037 Washer A4,3
    Washer A4,3
  • 8
    5446916 Bracket
    Bracket
  • 9
    21118 Reflector, bright
    Reflector, bright
  • 10
    40888 Wronic-screw 4,2 x 19
    Wronic-screw 4,2 x 19
  • 11
    5445403 Tool set. Includes 11 to 13
    Tool set. Includes 11 to 13
  • 12
    708200041 Tool box
    Tool box
  • 13
    572036310 Cover
    Cover
  • 14
    21003 Boll
    Boll
  • 15
    414510200 Reflector, Amber
    Reflector, Amber
  • 16
    40063 Screw M5 x 12
    Screw M5 x 12
  • 17
    20018 Serrated lock washer A5,3
    Serrated lock washer A5,3
  • 18
    36489 Rivet
    Rivet
  • 19
    5346728 Spring plate
    Spring plate
