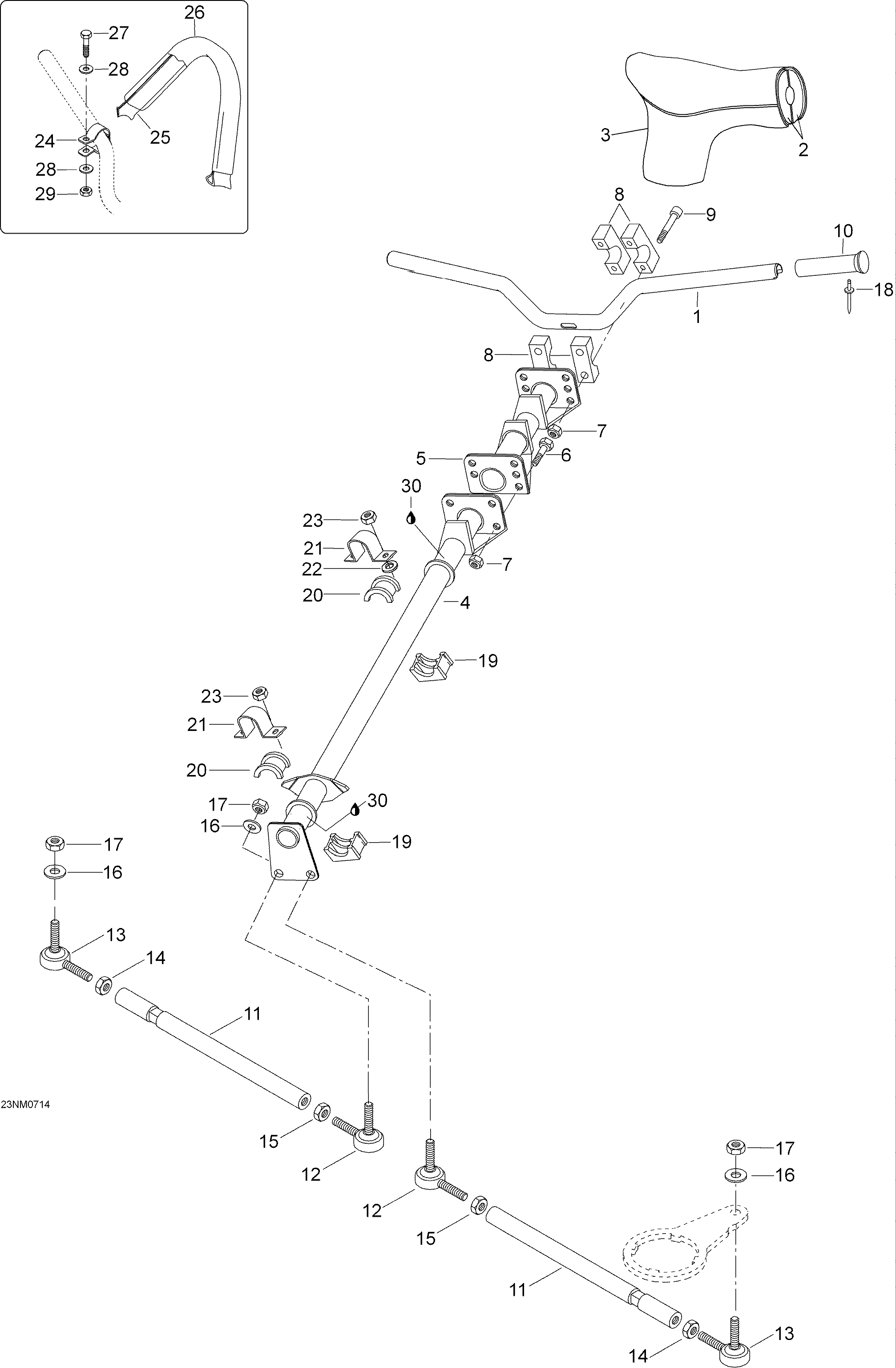

07- Steering System для BRP Lynx Forest Fox 440 El - 2007

  • №
    Артикул
    Название
  • 1
    605249033 Handle bar
    Handle bar
  • 2
    605250305 Steering padding, front
    Steering padding, front
  • 2
    605250306 Steering padding, rear
    Steering padding, rear
  • 3
    605254816 Cover
    Cover
  • 4
    5245963 Main tube
    Main tube
  • 5
    605250820 Extension
    Extension
  • 6
    40035 Hex. screw M8 x 16
    Hex. screw M8 x 16
  • 7
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 8
    548448 Steering support
    Steering support
  • 9
    40286 Socket head screw M8 x 45
    Socket head screw M8 x 45
  • 10
    5340464 Grip
    Grip
  • 11
    548983 Tie rod
    Tie rod
  • 12
    506151495 L.H. Ball joint
    L.H. Ball joint
  • 13
    506151492 R.H. Ball joint
    R.H. Ball joint
  • 14
    33019 R.H. Nut M10
    R.H. Nut M10
  • 15
    33017 L.H. Nut M10
    L.H. Nut M10
  • 16
    20047 Washer B10
    Washer B10
  • 17
    33023 Elastic stop nut M10
    Elastic stop nut M10
  • 18
    36005 Rivet
    Rivet
  • 19
    572064400 Half housing
    Half housing
  • 20
    572064500 Half housing
    Half housing
  • 21
    5343381 Support
    Support
  • 22
    31081 Washer
    Washer
  • 23
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 24
    506151792 Support plate
    Support plate
  • 25
    415090200 Grip
    Grip
  • 26
    415095500 Tie-down
    Tie-down
  • 27
    40031 Hex. screw M6 x 25
    Hex. screw M6 x 25
  • 28
    20003 Washer A6,4
    Washer A6,4
  • 29
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 30
    413711500 Synthetic grease
    Synthetic grease
