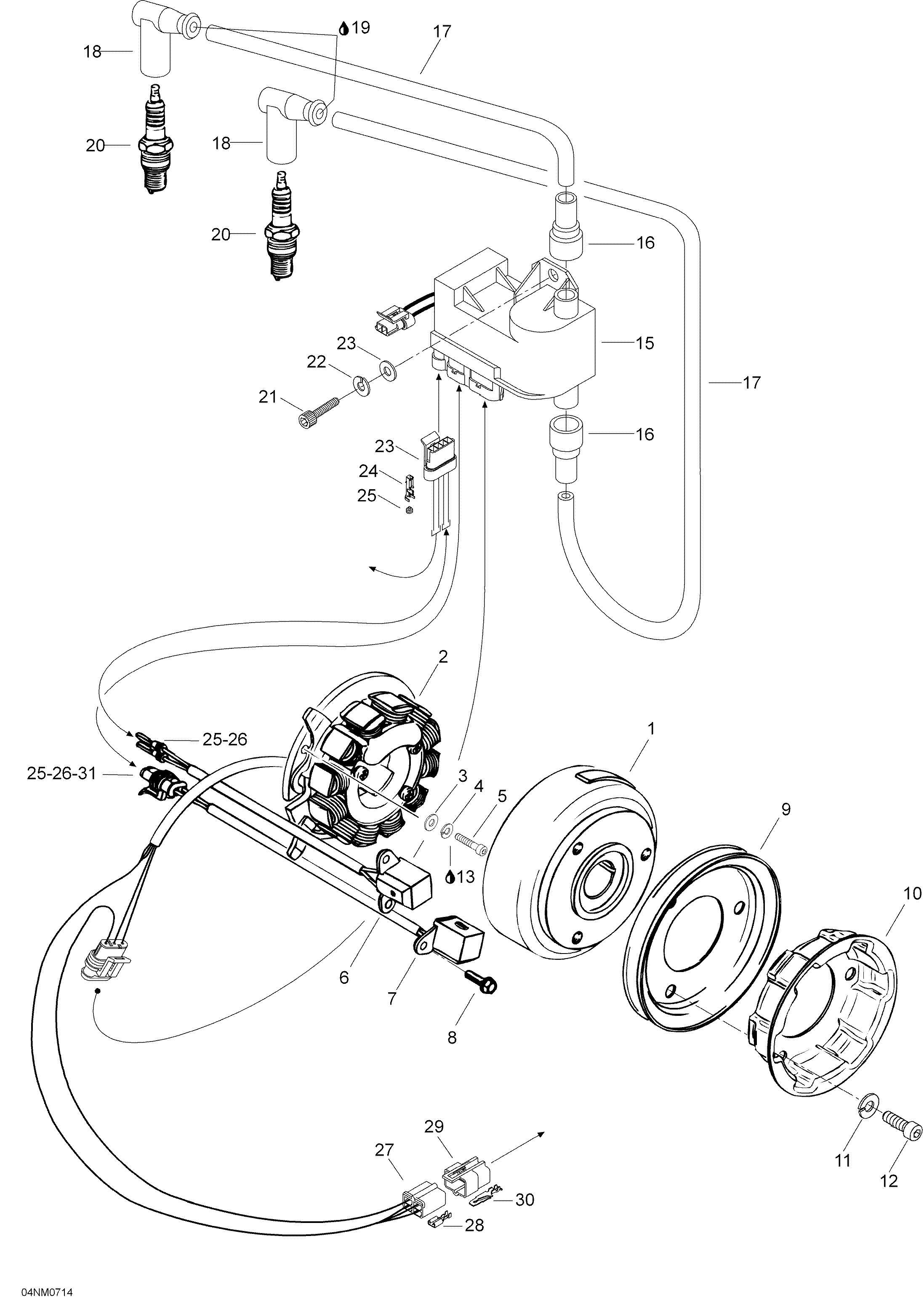

01- Ignition для BRP Lynx Forest Fox 440 El - 2007
-
№АртикулНазвание
-
-420887654 Magneto 12V/240W. Includes 1 to 2Magneto 12V/240W. Includes 1 to 2
-
1420996824 Fly wheelFly wheel
-
2420886603 Stator plate assyStator plate assy
-
3420927571 WasherWasher
-
420013 Sring washerSring washer
-
5420840515 Socket head screw M5 x 18Socket head screw M5 x 18
-
6420966548 Pick up assy for reversePick up assy for reverse
-
7420966546 Pick up assyPick up assy
-
8420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
9420980486 V-belt pulleyV-belt pulley
-
10420852414 Starting pulleyStarting pulley
-
11420845311 Lock washerLock washer
-
12420841521 Socket head screw M8 x 12Socket head screw M8 x 12
-
13293800060 Loctite 243, 10mlLoctite 243, 10ml
-
1542507 Electronic box ass'yElectronic box ass'y
-
16515174900 Cap. Includes 15 to 18Cap. Includes 15 to 18
-
17278001268 Ignition cableIgnition cable
-
18278000237 Spark plug connectorSpark plug connector
-
19293550004 Dielectric-grease, 150gDielectric-grease, 150g
-
20414961100 Spark plug BR-9ESSpark plug BR-9ES
-
2140332 Socket head screw M6 x 16Socket head screw M6 x 16
-
2220052 Washer A6Washer A6
-
2320003 Lock washer A6,4Lock washer A6,4
-
24409209700 Connector housingConnector housing
-
25278001014 Female terminalFemale terminal
-
26278001013 SealSeal
-
27409204900 Connector housingConnector housing
-
28515175253 Female terminalFemale terminal
-
29409209300 Connector housingConnector housing
-
30409210000 Male terminalMale terminal
-
31409209500 Connector housingConnector housing
