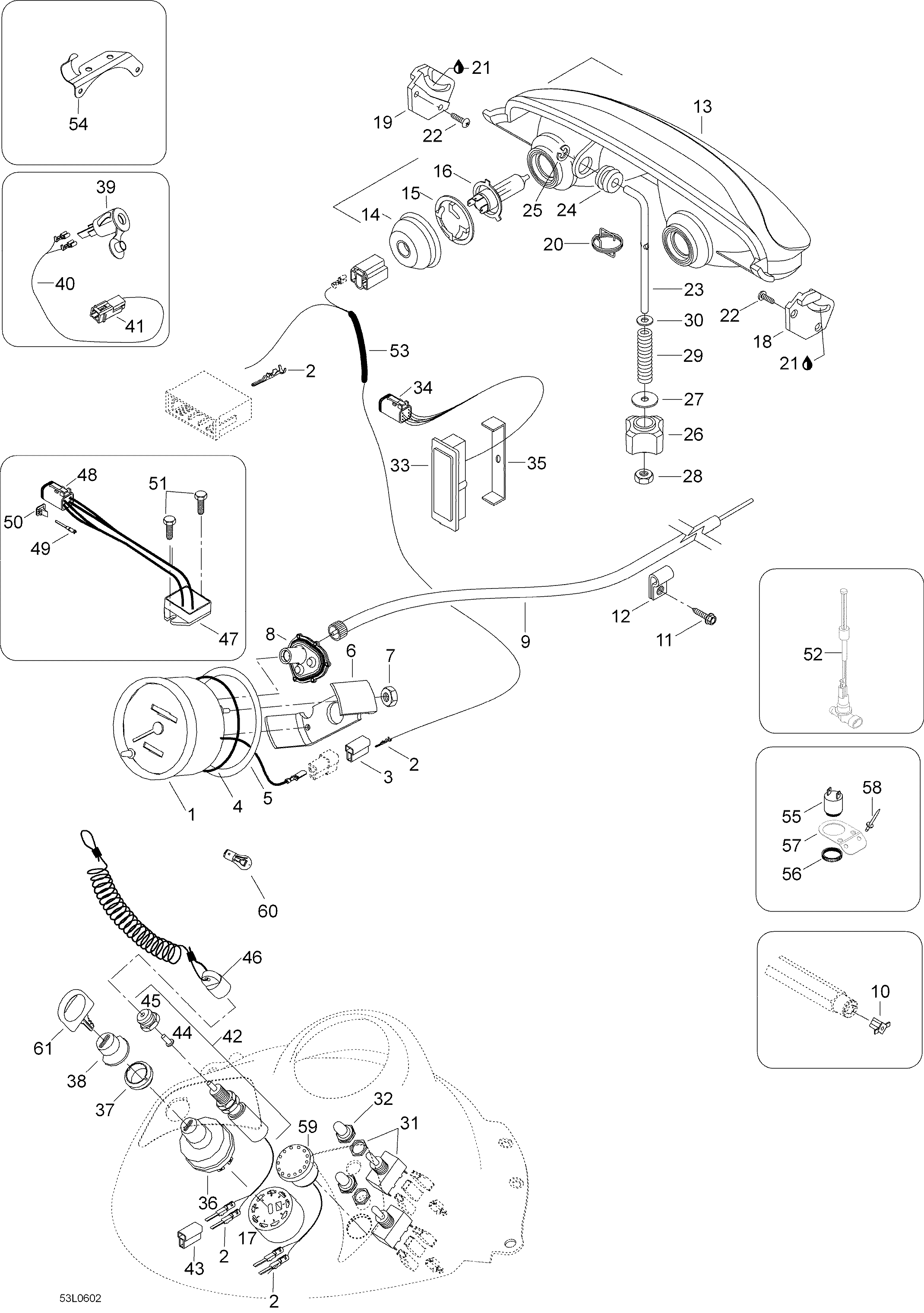

10- Electrical Acessories для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1605152889 Speedometer, whiteSpeedometer, white
-
2605642628 Male terminalMale terminal
-
342608 Connector housing (2 circuits)Connector housing (2 circuits)
-
4414807100 O-ringO-ring
-
5517258500 WasherWasher
-
6414806500 HolderHolder
-
733062 Elastic flanged nut M5Elastic flanged nut M5
-
8515175400 Drive angleDrive angle
-
9415101500 Speedometer cableSpeedometer cable
-
10572010100 Insert-speedoInsert-speedo
-
1140870 ScrewScrew
-
1227025 ClampClamp
-
13515175909 Halogen headlamp ass'y. Includes 13 to 16Halogen headlamp ass'y. Includes 13 to 16
-
14410607100 CoverCover
-
15410608300 Bulb holderBulb holder
-
16410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
17572150700 Ignition blockIgnition block
-
18517289300 R.H. Headlamp supportR.H. Headlamp support
-
19517289400 L.H. headlamp supportL.H. headlamp support
-
205447238 SpringSpring
-
21413707500 Grease, 400gGrease, 400g
-
2240177 Screw B4,8 x 16Screw B4,8 x 16
-
23517295800 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Nut PushNut Push
-
26515175548 HandleHandle
-
2720038 WasherWasher
-
2833010 Elastic stop nut M6Elastic stop nut M6
-
29415100600 SpringSpring
-
3020003 Washer A6,4Washer A6,4
-
31410107300 SwitchSwitch
-
32515175281 Rubber cover for switchRubber cover for switch
-
335348029 Signal lamp assySignal lamp assy
-
3442622 male connector housing (15 circuits)male connector housing (15 circuits)
-
355442157 Fit plateFit plate
-
3642019 Ignition switchIgnition switch
-
37410112100 NutNut
-
38570013700 Boot switchBoot switch
-
3942026 Flush mounted socketFlush mounted socket
-
40605352304 Wiring harnessWiring harness
-
4142624 Female connector housing (2 circuits)Female connector housing (2 circuits)
-
42515175571 Emergency switchEmergency switch
-
4342608 Connector housing (2 circuits)Connector housing (2 circuits)
-
44570151100 CoverCover
-
45515145900 NutNut
-
46515151500 Emergency switch lockEmergency switch lock
-
47515175656 Voltage regulator. Includes 47 to 50Voltage regulator. Includes 47 to 50
-
48278001477 Connector housingConnector housing
-
49515175568 ConnectorConnector
-
50278001478 LasLas
-
5140322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
52605452095 SensorSensor
-
535347991 Wiring harness, headlampWiring harness, headlamp
-
54515175254 Cable supportCable support
-
55515176035 DC-hornDC-horn
-
56414805101 Ring nutRing nut
-
575447941 BracketBracket
-
5836005 RivetRivet
-
59415101200 Reverse buttonReverse button
-
60410504200 Instrumentation bulpInstrumentation bulp
-
61414991700 Blank keyBlank key
