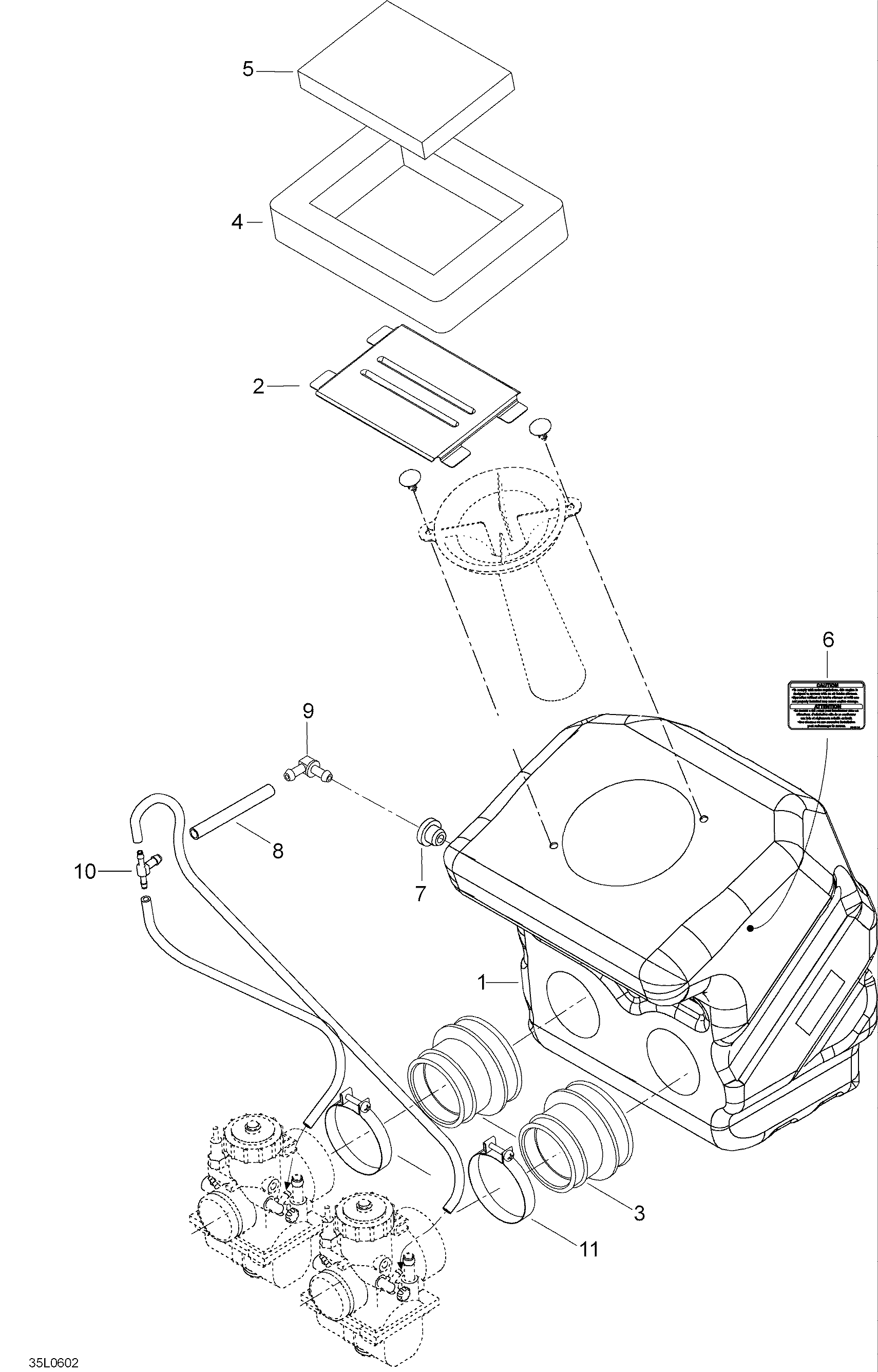

02- Air Silencer для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1508000317 Air intake ass'y. Includes 1 to 7Air intake ass'y. Includes 1 to 7
-
2508000004 Intake grillIntake grill
-
3508000203 Intake adaptorIntake adaptor
-
4508000245 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
839038 HoseHose
-
9414580600 Male connectorMale connector
-
10572045500 T-FittingT-Fitting
-
11508000344 ClampClamp
