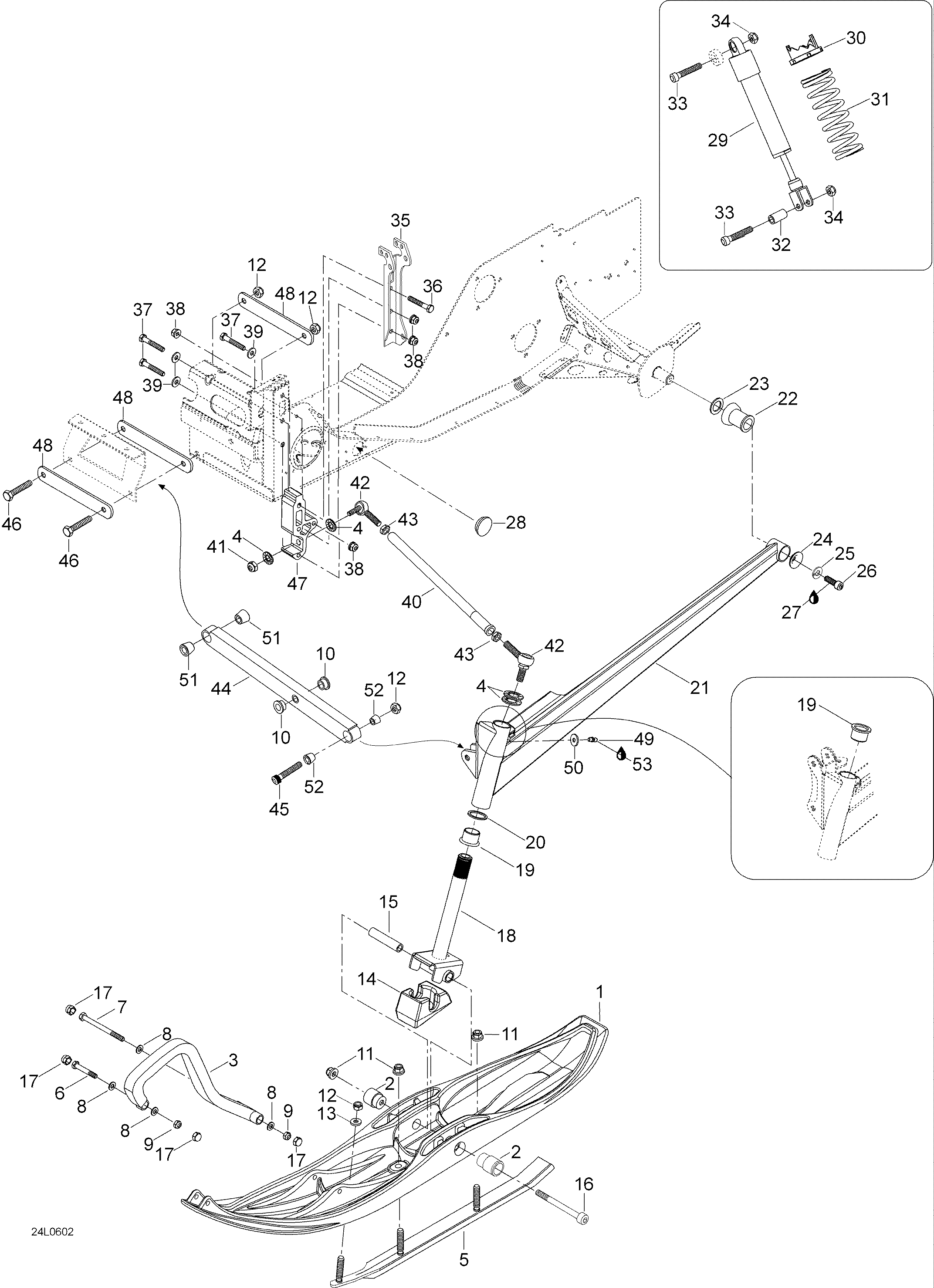

07- Front Suspension And Ski для BRP Lynx Ranger 550 - 2006

  • №
    Артикул
    Название
  • 1
    605153775 ADJ-ski. Includes 1 to 2
    ADJ-ski. Includes 1 to 2
  • 2
    605348392 Sleeve
    Sleeve
  • 3
    505070963 Handle
    Handle
  • 4
    20074 Lock washer M12
    Lock washer M12
  • 5
    619400006 Runner carbide ass'y. Includes 5 and 11
    Runner carbide ass'y. Includes 5 and 11
  • 6
    40009 Hex. screw M8 x 50
    Hex. screw M8 x 50
  • 7
    40264 Hex. screw M8 x 90
    Hex. screw M8 x 90
  • 8
    20004 Washer A8,4
    Washer A8,4
  • 9
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 10
    31029 Cushion
    Cushion
  • 11
    33074 Cushion
    Cushion
  • 12
    33012 Elastic stop nut M10
    Elastic stop nut M10
  • 13
    20028 Washer
    Washer
  • 14
    605351977 Rubber damper
    Rubber damper
  • 15
    506133300 Sleeve
    Sleeve
  • 16
    40225 Socket head screw M10 x 140
    Socket head screw M10 x 140
  • 17
    28056 Cap
    Cap
  • 18
    5245502 Ski leg
    Ski leg
  • 19
    505070003 Cushion
    Cushion
  • 20
    505070004 Washer
    Washer
  • 21
    605248970 R.H. Swing arm (Full Moon)
    R.H. Swing arm (Full Moon)
  • 21
    605248969 L.H. Swing arm (Full Moon)
    L.H. Swing arm (Full Moon)
  • 22
    570062200 Rubber damper
    Rubber damper
  • 23
    503146700 Washer
    Washer
  • 24
    506079600 Cup
    Cup
  • 25
    20014 Lock washer A8
    Lock washer A8
  • 26
    40289 Socket head screw M8 x 25
    Socket head screw M8 x 25
  • 27
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 28
    414916600 Plug
    Plug
  • 29
    23147 Shock. Includes 28 to 30
    Shock. Includes 28 to 30
  • 30
    503183700 Adjusting cam
    Adjusting cam
  • 32
    5441433 Sleeve
    Sleeve
  • 33
    40837 Socket head screw M10 x 55
    Socket head screw M10 x 55
  • 34
    33012 Elastic stop nut M10
    Elastic stop nut M10
  • 35
    5247702 Shock bracket
    Shock bracket
  • 36
    40010 Hex. screw M8 x 55
    Hex. screw M8 x 55
  • 37
    40264 Hex. screw M8 x 90
    Hex. screw M8 x 90
  • 38
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 39
    20104 Washer, hardened M8
    Washer, hardened M8
  • 40
    605348813 Upper arm
    Upper arm
  • 41
    33087 Nut M12
    Nut M12
  • 42
    31092 Ball joint
    Ball joint
  • 43
    33048 Nut M12
    Nut M12
  • 44
    605251494 Lower arm ass'y (Full Moon)
    Lower arm ass'y (Full Moon)
  • 45
    40858 Socket head screw M10 x 50
    Socket head screw M10 x 50
  • 46
    40814 Hex. screw M10 x 110
    Hex. screw M10 x 110
  • 47
    5447559 L.H. Upper bracket
    L.H. Upper bracket
  • 47
    5447566 R.H. Upper bracket
    R.H. Upper bracket
  • 48
    5346112 Support plate
    Support plate
  • 49
    34011 Grease fitting
    Grease fitting
  • 50
    20007 Washer A6,4
    Washer A6,4
  • 51
    5447769 Sleeve
    Sleeve
  • 52
    5447770 Sleeve
    Sleeve
  • 53
    293550033 Synthetic grease
    Synthetic grease
