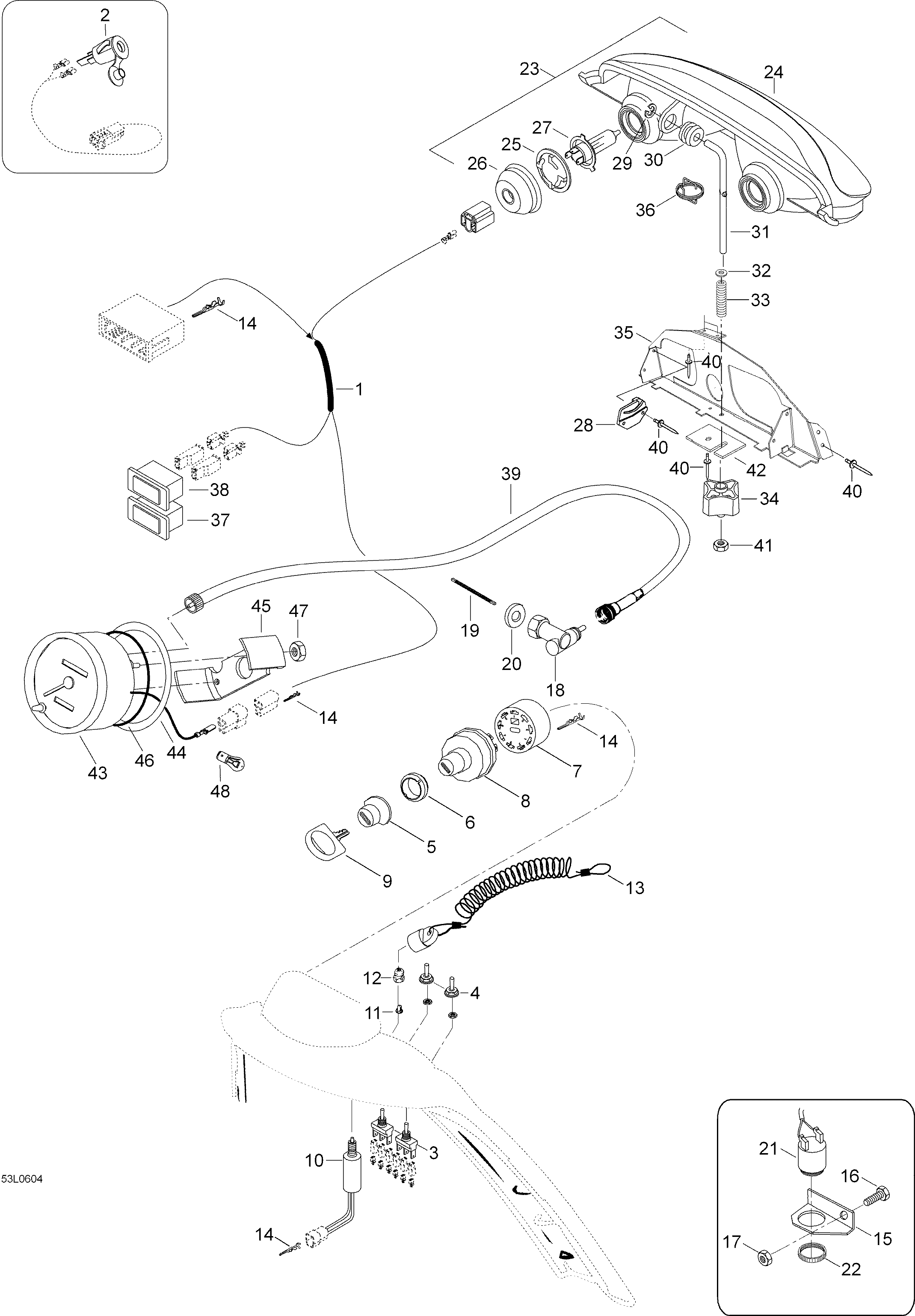

10- Electrical System для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
15348360 harness ass'yharness ass'y
-
242026 Flush Mounted SocketFlush Mounted Socket
-
3410107300 SwitchSwitch
-
4515175281 CoverCover
-
5570013700 BootBoot
-
6410112100 Face nutFace nut
-
7572150700 Ignition blockIgnition block
-
842019 Ignition switchIgnition switch
-
9414991700 Blank keyBlank key
-
10515175571 Brake switch assyBrake switch assy
-
11570151100 Plunger capPlunger cap
-
12515145900 Switch nutSwitch nut
-
13515151500 Cap assyCap assy
-
1442603 Male terminalMale terminal
-
15549459 Support for back up alarmSupport for back up alarm
-
1640029 Hex. screw M6 x 16Hex. screw M6 x 16
-
1733200 Elastic flanged nut M6Elastic flanged nut M6
-
1835021 Drive angleDrive angle
-
1945075 Insert cableInsert cable
-
205444186 GasketGasket
-
21414792102 Back up alarmBack up alarm
-
22414805101 Nut for back up alarmNut for back up alarm
-
23515175909 Headlamp assy. Includes 23 to 27Headlamp assy. Includes 23 to 27
-
25410607100 CoverCover
-
26410608300 Bulb holderBulb holder
-
27410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
28517289300 R.H. headlamp supportR.H. headlamp support
-
28517289400 L.H. headlamp supportL.H. headlamp support
-
29732610072 Nut PushNut Push
-
30415100800 GrommetGrommet
-
315448100 Adjuster rodAdjuster rod
-
3220003 Washer A6,4Washer A6,4
-
33415100600 SpringSpring
-
34515175548 HandleHandle
-
355248092 BracketBracket
-
365445737 SpringSpring
-
37410109600 Pilot lamp (Headlamp)Pilot lamp (Headlamp)
-
38410109500 Pilot lamp (Oil level)Pilot lamp (Oil level)
-
395344162 Speedometer wireSpeedometer wire
-
4036005 RivetRivet
-
4133010 Elastic stop nut M6Elastic stop nut M6
-
425448320 Locking plateLocking plate
-
43605152889 Speedometer, whiteSpeedometer, white
-
44517258500 WasherWasher
-
45414806500 HolderHolder
-
46414807100 O-ringO-ring
-
4733062 Elastic flanged nut M5Elastic flanged nut M5
-
48410504200 Instrumentation bulbInstrumentation bulb
