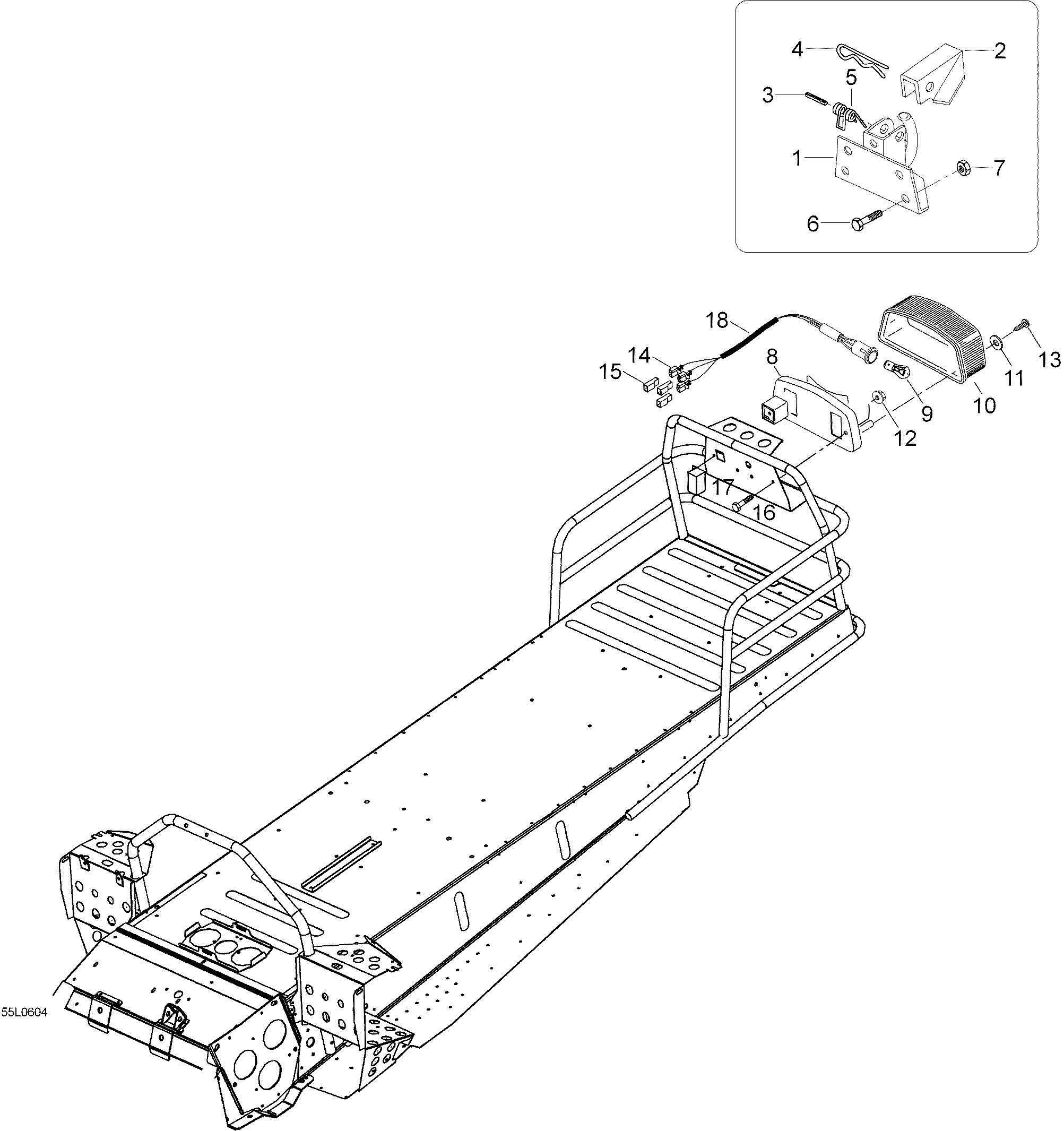

09- Rack для BRP Lynx 5900 FCE - 2006

  • №
    Артикул
    Название
  • -
    5344156 Hitch Assy. Includes 1 to 5
    Hitch Assy. Includes 1 to 5
  • 1
    5344208 Hitch Weld
    Hitch Weld
  • 2
    5440767 Lock
    Lock
  • 3
    41012 Spring Pin
    Spring Pin
  • 4
    41029 Needle Pin
    Needle Pin
  • 5
    545693 Spring
    Spring
  • 6
    40336 Hex. screw M8 x 20
    Hex. screw M8 x 20
  • 7
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 8
    510004061 Tail lamp housing
    Tail lamp housing
  • 9
    410504000 Bulb tail lamp
    Bulb tail lamp
  • 10
    414513700 Lens
    Lens
  • 11
    414516400 Washer
    Washer
  • 12
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 13
    414516300 Screw
    Screw
  • 14
    42178 Female terminal
    Female terminal
  • 15
    42179 Connector housing
    Connector housing
  • 16
    40032 Screw M6 x 30
    Screw M6 x 30
  • 17
    5345713 Cover
    Cover
