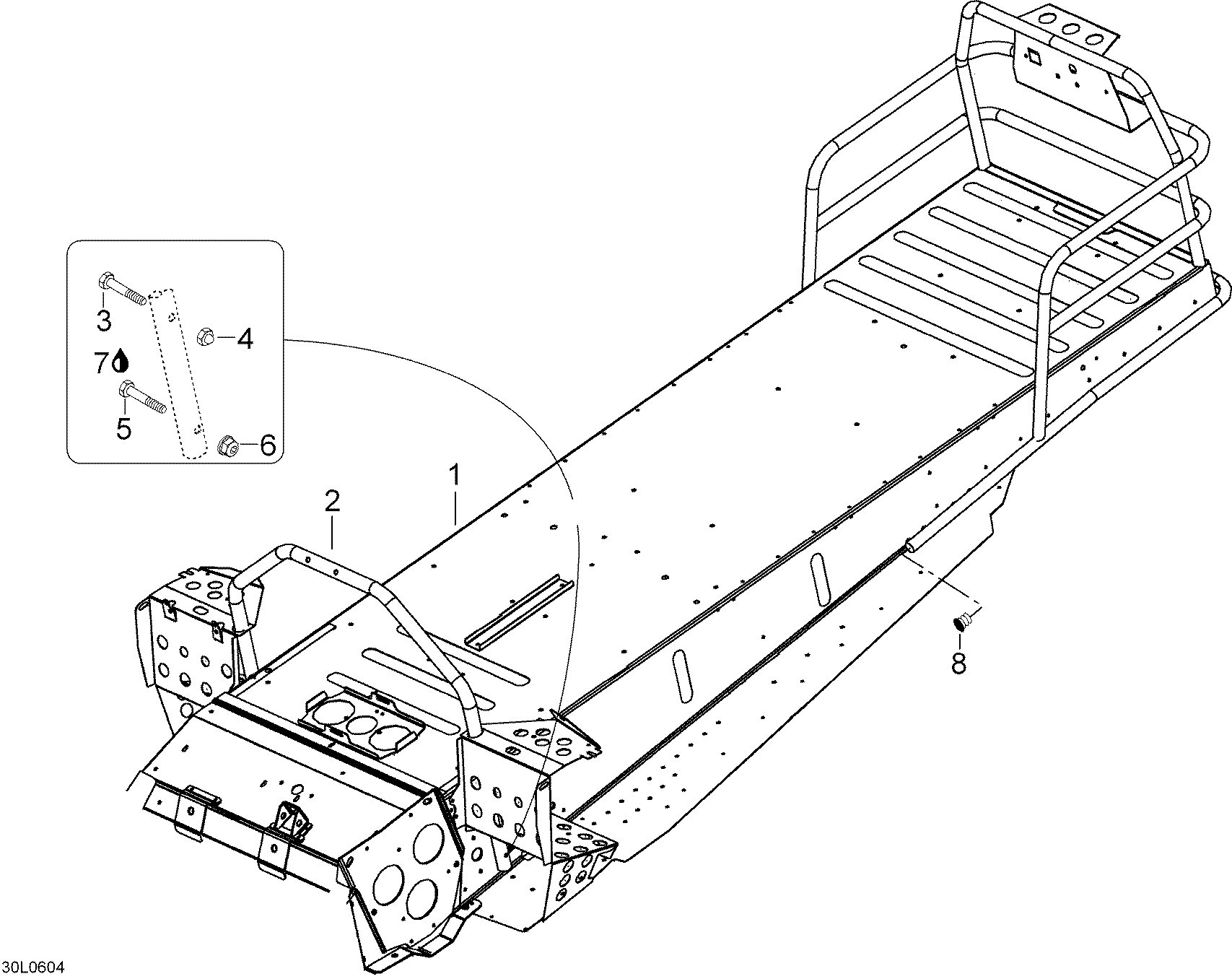

09- Frame для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
1605153752 ChassisChassis
-
2605150258 Handle steering supp.Handle steering supp.
-
340032 Screw M6 x 30Screw M6 x 30
-
433051 Nut M6Nut M6
-
540002 Screw M6 x 40Screw M6 x 40
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
732028 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
828136 PlugPlug
