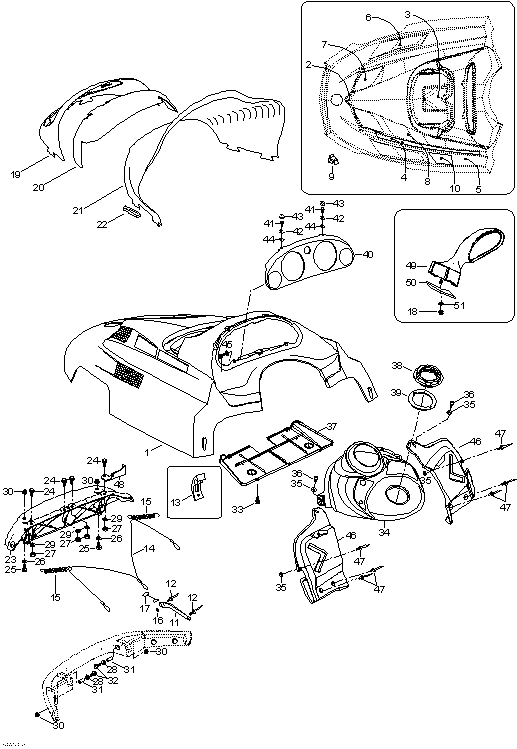

09- Hood для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1605151473 Hood. pre ass'y, Seashore. Includes 1 to 12Hood. pre ass'y, Seashore. Includes 1 to 12
-
2605350919 Heat protectorHeat protector
-
3605350920 Heat protectorHeat protector
-
4605350921 Heat protectorHeat protector
-
5605350922 Heat protectorHeat protector
-
6605350923 L.H. GrillL.H. Grill
-
6605350924 R.H. GrillR.H. Grill
-
7605350925 L.H. GrillL.H. Grill
-
7605350926 R.H. GrillR.H. Grill
-
8605350927 Grill, rearGrill, rear
-
9414227300 PidikejousiPidikejousi
-
10605350929 Heat protectorHeat protector
-
11605452657 BracketBracket
-
1236002 RivetRivet
-
13517302152 LatchLatch
-
14605351372 Retainer cableRetainer cable
-
155442675 SpringSpring
-
1620001 Washer A4,3Washer A4,3
-
175442870 BracketBracket
-
1833008 Elastic stop nut M4Elastic stop nut M4
-
19517302158 Moulding Head LampMoulding Head Lamp
-
20517302003 Windshiel supportWindshiel support
-
21605152073 Windshield, highWindshield, high
-
22570023800 Windshield latchWindshield latch
-
23517302631 Hinge halfHinge half
-
2440030 Hex. screw screw M6 x 20Hex. screw screw M6 x 20
-
2540381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2620117 Washer 6mmWasher 6mm
-
2733010 Elastic stop nut M6Elastic stop nut M6
-
2820003 Washer A 6,4Washer A 6,4
-
2920009 Washer A 6,4Washer A 6,4
-
3033200 Elastic flanged nut M6Elastic flanged nut M6
-
31517302179 BushingBushing
-
3240003 Hex. screw M6 x 35Hex. screw M6 x 35
-
33243141640 Screw M4,8 x 16Screw M4,8 x 16
-
34517302729 Center consoleCenter console
-
3520008 Washer A 5,3Washer A 5,3
-
36732600030 ScrewScrew
-
37605151831 Air intake plateAir intake plate
-
38517302043 Plastic nutPlastic nut
-
395447116 GasketGasket
-
40605351374 Indicator supportIndicator support
-
4140611 Screw, Plastofast 4 x 10Screw, Plastofast 4 x 10
-
42414436800 CirclipCirclip
-
43414436900 CapCap
-
44234042600 WasherWasher
-
4520039 Washer 4mmWasher 4mm
-
46605250613 L.H. ConsoleL.H. Console
-
46605250614 R.H. ConsoleR.H. Console
-
4736037 RivetRivet
-
48605351463 L.H. support, hoodL.H. support, hood
-
48605351464 R.H. support, hoodR.H. support, hood
-
49605250583 R.H. MirrorR.H. Mirror
-
49605250582 L.H. MirrorL.H. Mirror
-
50605350577 R.H. AdaptorR.H. Adaptor
-
50605350576 L.H. AdaptorL.H. Adaptor
-
5120037 Washer A4,3Washer A4,3
