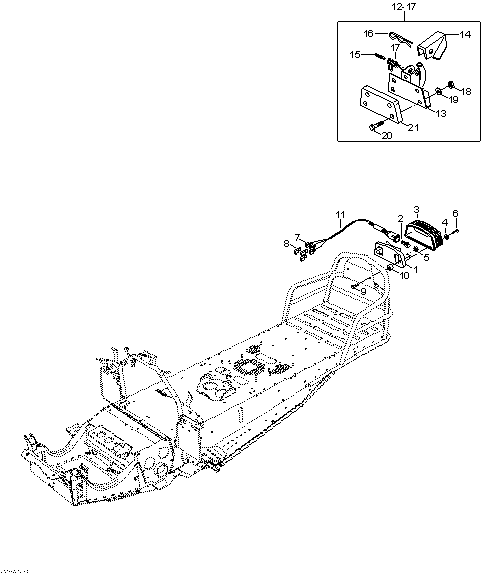

09- Frame And Components для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1510004061 Tail lamp housingTail lamp housing
-
2410504000 Bulp tail lampBulp tail lamp
-
3414513700 LensLens
-
4414516400 WasherWasher
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
6414516300 ScrewScrew
-
742178 Female terminalFemale terminal
-
842179 Female terminal housingFemale terminal housing
-
940065 Locking screw M6 x 45Locking screw M6 x 45
-
10549103 SleeveSleeve
-
1139023 TubingTubing
-
125344156 Hitch ass'y. Includes 12 to 17Hitch ass'y. Includes 12 to 17
-
135344208 HitchHitch
-
145440767 LatchLatch
-
1541012 Cotter pinCotter pin
-
1641029 PinPin
-
17545693 SpringSpring
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1920004 Washer A8,4Washer A8,4
-
2040009 Screw M8 x 50Screw M8 x 50
-
21605351510 ExtensionExtension
