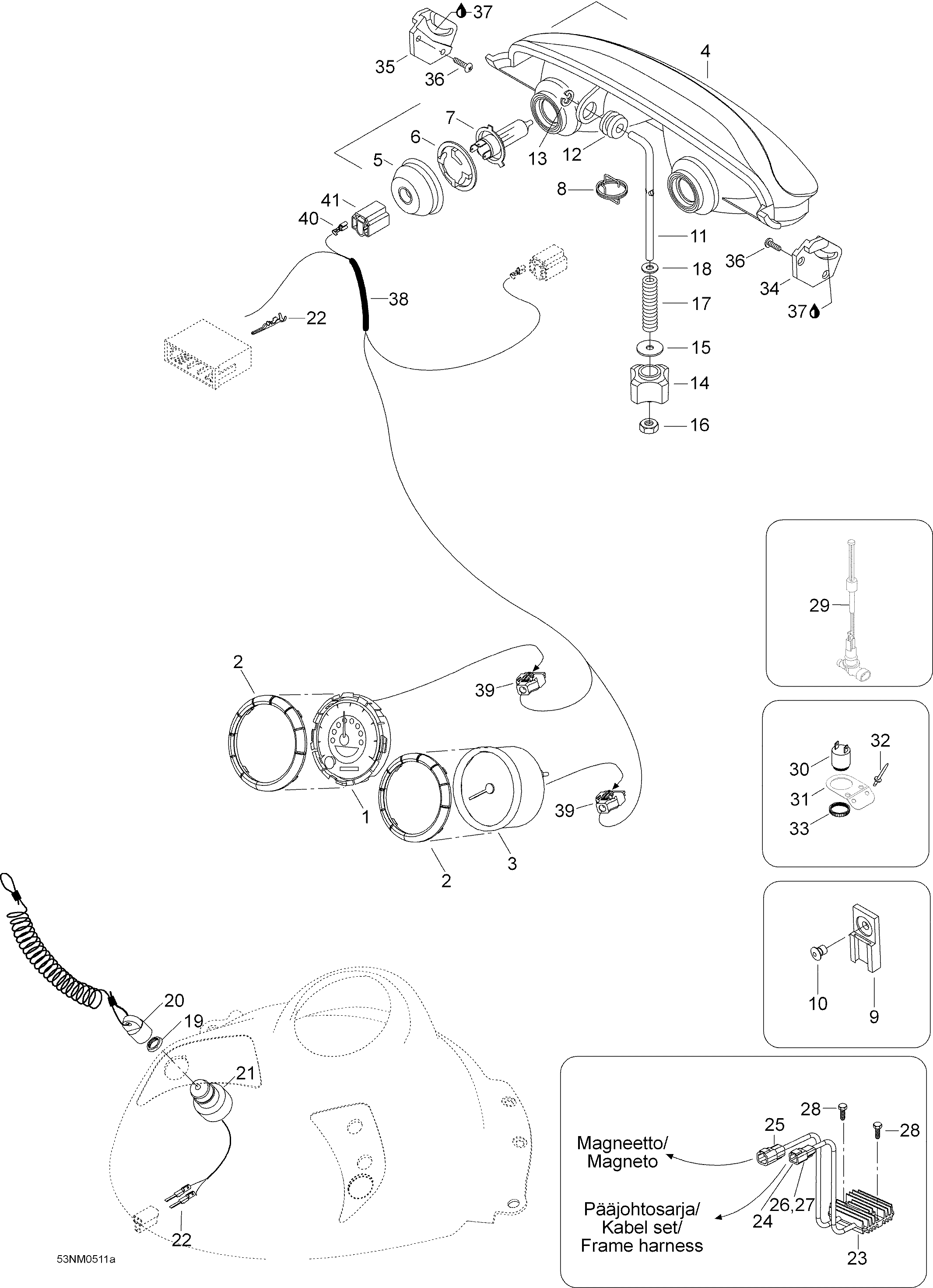

10- Electrical Acessories для BRP Lynx Adventure 800HO - 2005
-
№АртикулНазвание
-
1515176263 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515176275 TachometerTachometer
-
45347352 halogen headlamp. Includes 4 to 7halogen headlamp. Includes 4 to 7
-
5410607100 CoverCover
-
6410608300 Bulp holderBulp holder
-
7410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
85447238 SpringSpring
-
9270000141 ClipClip
-
1036005 RivetRivet
-
11517295800 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13732610072 Nut PushNut Push
-
14515175548 KnobKnob
-
1520038 WasherWasher
-
1633010 Elastic stop nut M6Elastic stop nut M6
-
17415100600 SpringSpring
-
1820003 Washer A6,4Washer A6,4
-
19278000508 Plastic nutPlastic nut
-
20515166900 DESS capDESS cap
-
21515175145 DESS switchDESS switch
-
2242603 ConnectorConnector
-
23515175968 Volt regulator. Includes 23 to 27Volt regulator. Includes 23 to 27
-
24278001674 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
26515175568 Male terminalMale terminal
-
27278001671 Female lockFemale lock
-
2840377 Self tapping screw M6 x 20Self tapping screw M6 x 20
-
29515176016 SensorSensor
-
30515176035 HornHorn
-
315447941 BracketBracket
-
3236005 RivetRivet
-
33414805101 Ring nutRing nut
-
34517289300 R.H. Headlamp SupportR.H. Headlamp Support
-
35517289400 L.H. Headlamp SupportL.H. Headlamp Support
-
3640177 Screw B4,8 x 16Screw B4,8 x 16
-
37413707500 Grease, 400gGrease, 400g
-
38605348931 Wiring harness, headlampWiring harness, headlamp
-
39515175801 Female terminal housing (24 circuits)Female terminal housing (24 circuits)
-
40515175321 Female terminalFemale terminal
-
41409202700 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
