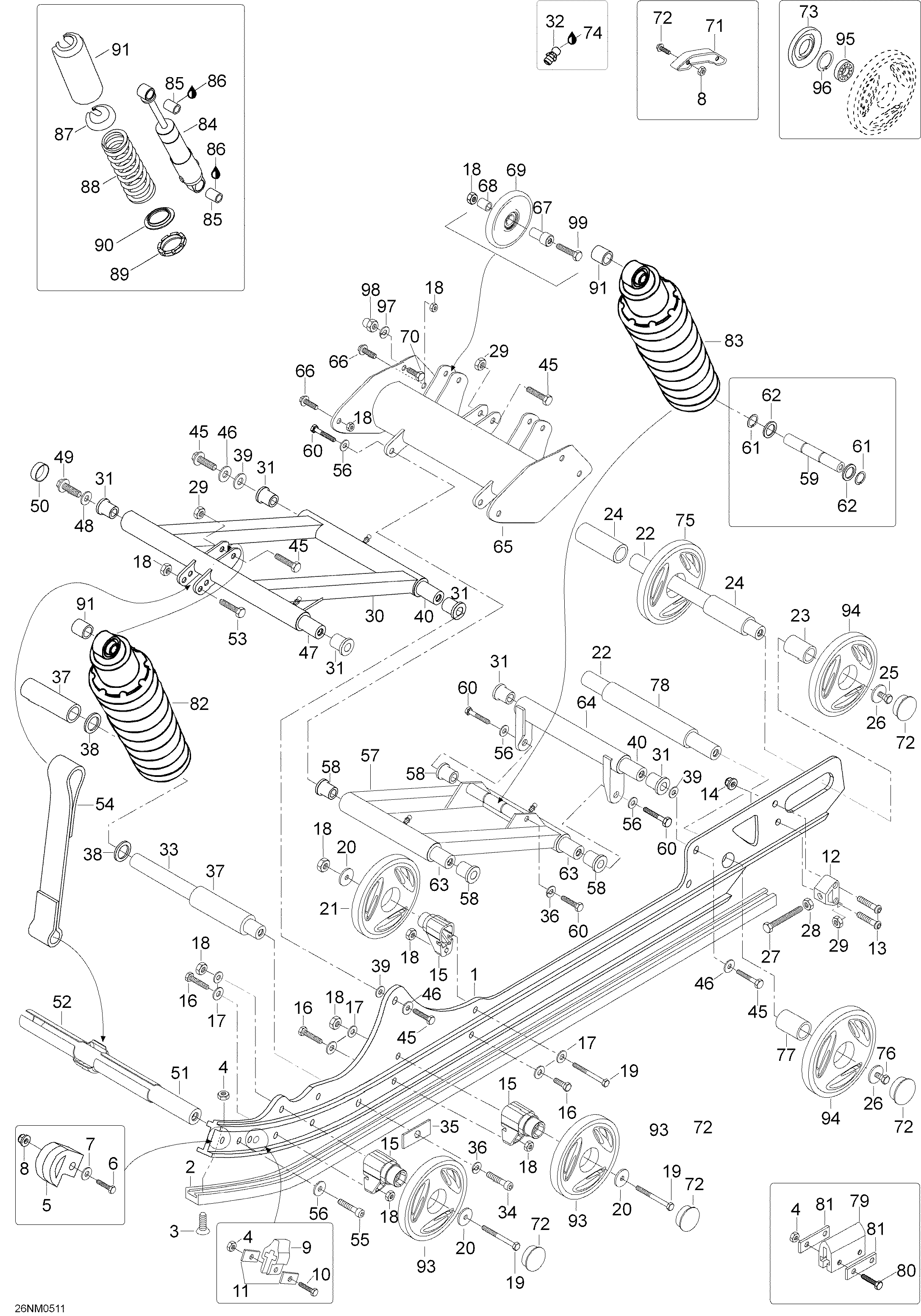

08- Rear Suspension для BRP Lynx Adventure 800HO - 2005

  • №
    Артикул
    Название
  • 1
    605252294 Runner
    Runner
  • 2
    5343347 Runner shoe
    Runner shoe
  • 3
    40059 Socket head screw M6 x 60
    Socket head screw M6 x 60
  • 4
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 5
    605348954 Runner protector
    Runner protector
  • 6
    40031 He. screw M6 x 25
    He. screw M6 x 25
  • 7
    20003 Washer A6,4
    Washer A6,4
  • 8
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 9
    5442328 Rubber Stopper
    Rubber Stopper
  • 10
    40032 Hex. screw M6 x 30
    Hex. screw M6 x 30
  • 11
    548470 Washer
    Washer
  • 12
    5341633 Tensioner
    Tensioner
  • 13
    40392 Socket head screw M8 x 45
    Socket head screw M8 x 45
  • 14
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 15
    605450182 Support
    Support
  • 16
    40037 Hex. screw M8 x 25
    Hex. screw M8 x 25
  • 17
    20104 Washer, hardened M8
    Washer, hardened M8
  • 18
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 19
    40089 Hex. screw M8 x 75
    Hex. screw M8 x 75
  • 20
    503183100 Washer, hardened M8
    Washer, hardened M8
  • 21
    503191029 Wheel black 135mm/musta
    Wheel black 135mm/musta
  • 22
    605348720 Rear shaft
    Rear shaft
  • 23
    5441512 Sleeve
    Sleeve
  • 24
    605450572 Sleeve
    Sleeve
  • 25
    40050 Hex. screw M10 x 35
    Hex. screw M10 x 35
  • 26
    503183300 Washer, hardened M10
    Washer, hardened M10
  • 27
    40239 Screw M10 x 100
    Screw M10 x 100
  • 28
    33004 Nut M10
    Nut M10
  • 29
    33012 Nut elastic M10
    Nut elastic M10
  • 30
    5145588 Welded front arm
    Welded front arm
  • 31
    31024 Cushion
    Cushion
  • 32
    34011 Crease nipple
    Crease nipple
  • 33
    5347633 Shaft, shock
    Shaft, shock
  • 34
    40536 Allen screw M10 x 45
    Allen screw M10 x 45
  • 35
    5446786 Support plate
    Support plate
  • 36
    20068 Lock washer D10
    Lock washer D10
  • 37
    5346649 Spacer
    Spacer
  • 38
    31013 Shim
    Shim
  • 39
    20116 Washer
    Washer
  • 40
    5346900 Shaft
    Shaft
  • 45
    40016 Hex. screw M10 x 45
    Hex. screw M10 x 45
  • 46
    512056700 Lock washer
    Lock washer
  • 47
    5346135 Shaft
    Shaft
  • 48
    20090 Lock washer
    Lock washer
  • 49
    40243 Hex. screw M12 x 60
    Hex. screw M12 x 60
  • 50
    5448025 Cap
    Cap
  • 51
    5343471 Shaft
    Shaft
  • 52
    605349381 Retainer for stopper strap
    Retainer for stopper strap
  • 53
    40008 Hex. screw M8 x 45
    Hex. screw M8 x 45
  • 54
    605449385 Stopper strap
    Stopper strap
  • 55
    40134 Allen screw M10 x 45
    Allen screw M10 x 45
  • 56
    20105 Washer, hardened M10
    Washer, hardened M10
  • 57
    605349313 Rear Arm
    Rear Arm
  • 58
    31027 Cushion
    Cushion
  • 59
    605451897 Shaft
    Shaft
  • 60
    40014 Hex. screw M10 x 40
    Hex. screw M10 x 40
  • 61
    31007 Circlip
    Circlip
  • 62
    31091 Shim
    Shim
  • 63
    5346865 Shaft
    Shaft
  • 64
    5345535 Rear arm
    Rear arm
  • 65
    5248370 Upper arm
    Upper arm
  • 66
    40058 Locking screw M8 x 20
    Locking screw M8 x 20
  • 67
    605448742 Sleeve
    Sleeve
  • 68
    605448743 Sleeve
    Sleeve
  • 69
    46027 Idler Wheel black
    Idler Wheel black
  • 70
    40056 Locking screw M8 x 16
    Locking screw M8 x 16
  • 71
    5343191 Slide part
    Slide part
  • 72
    40064 Hex. screw M6 x 40
    Hex. screw M6 x 40
  • 72
    570063600 Cap
    Cap
  • 73
    572089000 Labyrinth seal
    Labyrinth seal
  • 74
    293550033 Synt. grease
    Synt. grease
  • 75
    503189478 Wheel 165
    Wheel 165
  • 76
    40335 Hex. screw m10 x 30
    Hex. screw m10 x 30
  • 77
    5444099 Sleeve
    Sleeve
  • 78
    605449516 Sleeve
    Sleeve
  • 79
    570023100 Rubber damper
    Rubber damper
  • 80
    40002 Hex. screw m6 x 40
    Hex. screw m6 x 40
  • 81
    548387 Washer
    Washer
  • 82
    605348900 Shock ass'y, front arm. Includes 82 to 90
    Shock ass'y, front arm. Includes 82 to 90
  • 83
    605348902 Shock ass'y, rear arm. Includes 83 to 90
    Shock ass'y, rear arm. Includes 83 to 90
  • 84
    23173 Shock
    Shock
  • 84
    23174 Shock ass'y, rear arm
    Shock ass'y, rear arm
  • 85
    31094 Cushion
    Cushion
  • 86
    320006 Loctite
    Loctite
  • 87
    5346750 Spring stopper
    Spring stopper
  • 88
    25064 Spring, front arm
    Spring, front arm
  • 88
    25055 Spring, rear arm
    Spring, rear arm
  • 89
    230048 Cam
    Cam
  • 90
    230049 Spring guide
    Spring guide
  • 91
    5346754 Protector
    Protector
  • 92
    5446652 Sleeve
    Sleeve
  • 93
    572097603 Idler wheel 135mm (Viper Red)
    Idler wheel 135mm (Viper Red)
  • 94
    503189477 Idler wheel 165mm (Viper Red)
    Idler wheel 165mm (Viper Red)
  • 95
    503190795 Ball bearing
    Ball bearing
  • 96
    371901700 Circlip
    Circlip
  • 97
    20072 Lock washer
    Lock washer
  • 98
    33044 Nut M8
    Nut M8
  • 99
    40011 Hex. screw M8 x 60
    Hex. screw M8 x 60
