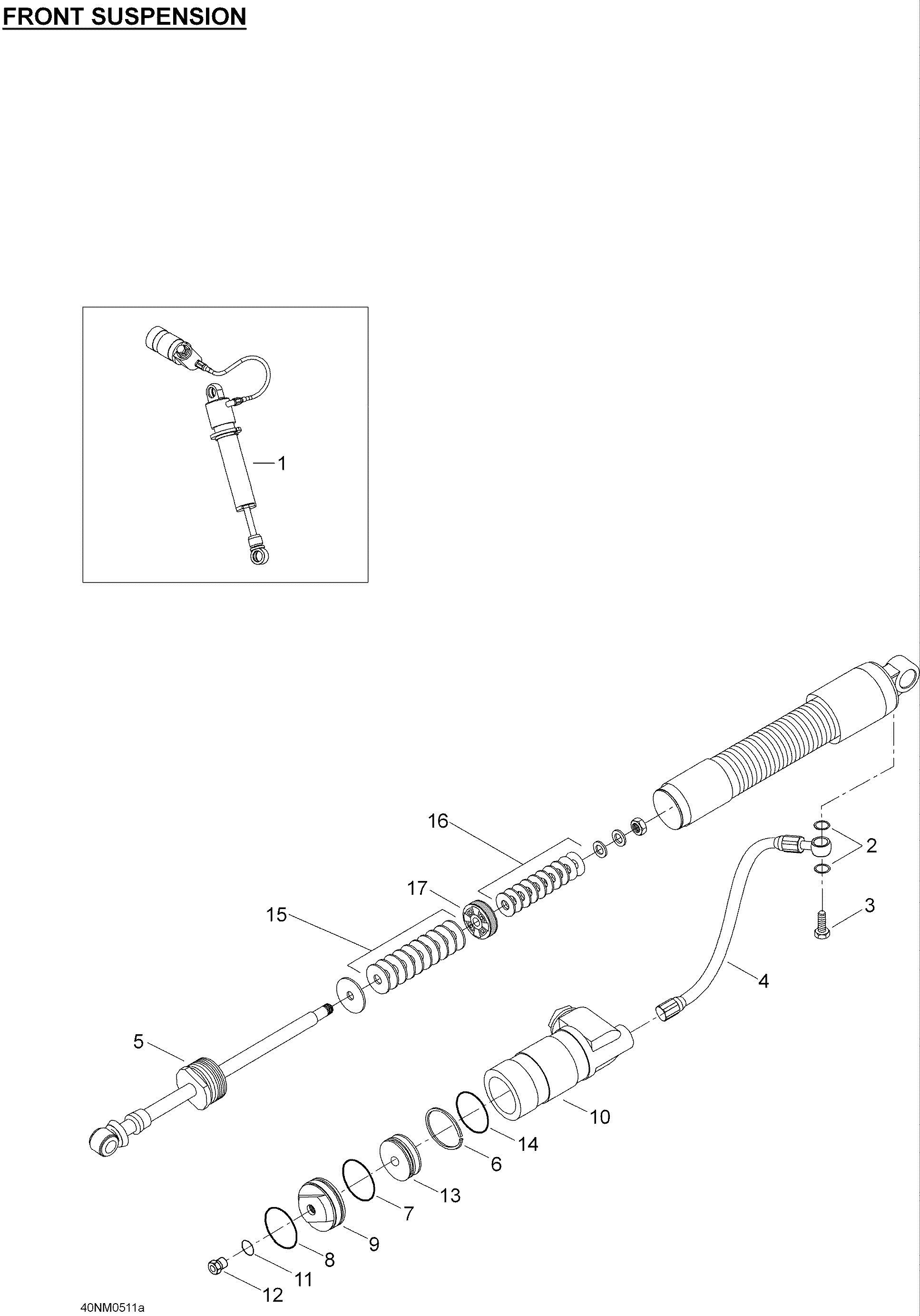

07- Take Apart Shock, Ski для BRP Lynx Adventure 800HO - 2005

  • №
    Артикул
    Название
  • 1
    23197 Shock. Includes 1 to 14
    Shock. Includes 1 to 14
  • 2
    415038700 O-ring
    O-ring
  • 3
    415093810 Banjo-bolt
    Banjo-bolt
  • 4
    230062 Hose
    Hose
  • 6
    415093806 Piston ring
    Piston ring
  • 7
    415093804 O-ring
    O-ring
  • 8
    415093805 Stop ring
    Stop ring
  • 11
    230050 O-ring
    O-ring
  • 12
    230061 Air valve
    Air valve
  • 13
    415093812 Free piston
    Free piston
  • 14
    415093807 O-ring
    O-ring
  • 15
    415038800 Leaf valve 12x0.114
    Leaf valve 12x0.114
  • 15
    414888339 Leaf valve 12x0.152
    Leaf valve 12x0.152
  • 15
    414888338 Leaf valve 12x0.203
    Leaf valve 12x0.203
  • 15
    414888337 Leaf valve 15x0.114
    Leaf valve 15x0.114
  • 15
    414888336 Leaf valve 15x0.152
    Leaf valve 15x0.152
  • 15
    414888335 Leaf valve 15x0.203
    Leaf valve 15x0.203
  • 15
    414888334 Leaf valve 15x0.254
    Leaf valve 15x0.254
  • 15
    415038900 Leaf valve 16x0.114
    Leaf valve 16x0.114
  • 15
    414888333 Leaf valve 16x0.152
    Leaf valve 16x0.152
  • 15
    414888332 Leaf valve 16x0.203
    Leaf valve 16x0.203
  • 15
    414888331 Leaf valve 16x0.254
    Leaf valve 16x0.254
  • 15
    230015 Leaf valve 18x0.114
    Leaf valve 18x0.114
  • 15
    414888330 Leaf valve 18x0.152
    Leaf valve 18x0.152
  • 15
    414888329 Leaf valve 18x0.203
    Leaf valve 18x0.203
  • 15
    230016 Leaf valve 18x0.254
    Leaf valve 18x0.254
  • 15
    414888328 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 15
    414888327 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 15
    414888326 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 15
    230017 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 15
    230018 Leaf valve 22x0.114
    Leaf valve 22x0.114
  • 15
    414888325 Leaf valve 22x0.152
    Leaf valve 22x0.152
  • 15
    414888324 Leaf valve 22x0.203
    Leaf valve 22x0.203
  • 15
    230019 Leaf valve 22x0.254
    Leaf valve 22x0.254
  • 15
    230021 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 15
    230022 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 15
    230023 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 15
    230024 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 15
    414888323 Leaf valve 26x0.152
    Leaf valve 26x0.152
  • 15
    414888322 Leaf valve 26x0.203
    Leaf valve 26x0.203
  • 15
    415039000 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 15
    230025 Leaf valve 28x0.114
    Leaf valve 28x0.114
  • 15
    414888321 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 15
    230026 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 15
    414888320 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 15
    414888319 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 15
    414888318 Leaf valve 30 x 0.203
    Leaf valve 30 x 0.203
  • 15
    415039100 Leaf valve 30x0.254
    Leaf valve 30x0.254
  • 16
    415038800 Leaf valve 12x0.114
    Leaf valve 12x0.114
  • 16
    414888339 Leaf valve 12x0.152
    Leaf valve 12x0.152
  • 16
    414888338 Leaf valve 12x0.203
    Leaf valve 12x0.203
  • 16
    414888337 Leaf valve 15x0.114
    Leaf valve 15x0.114
  • 16
    414888336 Leaf valve 15x0.152
    Leaf valve 15x0.152
  • 16
    414888335 Leaf valve 15x0.203
    Leaf valve 15x0.203
  • 16
    414888334 Leaf valve 15x0.254
    Leaf valve 15x0.254
  • 16
    415038900 Leaf valve 16x0.114
    Leaf valve 16x0.114
  • 16
    414888333 Leaf valve 16x0.152
    Leaf valve 16x0.152
  • 16
    414888332 Leaf valve 16x0.203
    Leaf valve 16x0.203
  • 16
    414888331 Leaf valve 16x0.254
    Leaf valve 16x0.254
  • 16
    230015 Leaf valve 18x0.114
    Leaf valve 18x0.114
  • 16
    414888330 Leaf valve 18x0.152
    Leaf valve 18x0.152
  • 16
    414888329 Leaf valve 18x0.203
    Leaf valve 18x0.203
  • 16
    230016 Leaf valve 18x0.254
    Leaf valve 18x0.254
  • 16
    414888328 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 16
    414888327 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 16
    414888326 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 16
    230017 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 16
    230018 Leaf valve 22x0.114
    Leaf valve 22x0.114
  • 16
    414888325 Leaf valve 22x0.152
    Leaf valve 22x0.152
  • 16
    414888324 Leaf valve 22x0.203
    Leaf valve 22x0.203
  • 16
    230019 Leaf valve 22x0.254
    Leaf valve 22x0.254
  • 16
    230021 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 16
    230022 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 16
    230023 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 16
    230024 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 16
    414888323 Leaf valve 26x0.152
    Leaf valve 26x0.152
  • 16
    414888322 Leaf valve 26x0.203
    Leaf valve 26x0.203
  • 16
    415039000 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 16
    230025 Leaf valve 28x0.114
    Leaf valve 28x0.114
  • 16
    414888321 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 16
    230026 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 16
    414888320 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 16
    414888319 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 16
    414888318 Leaf valve 30 x 0.203
    Leaf valve 30 x 0.203
  • 16
    415039100 Leaf valve 30x0.254
    Leaf valve 30x0.254
  • 17
    230027 Piston, 1 slits
    Piston, 1 slits
  • 17
    414888305 Manta, 2 slits
    Manta, 2 slits
  • 17
    230028 Piston, 3 slits
    Piston, 3 slits
  • 17
    414888306 Piston, 4 slits
    Piston, 4 slits
