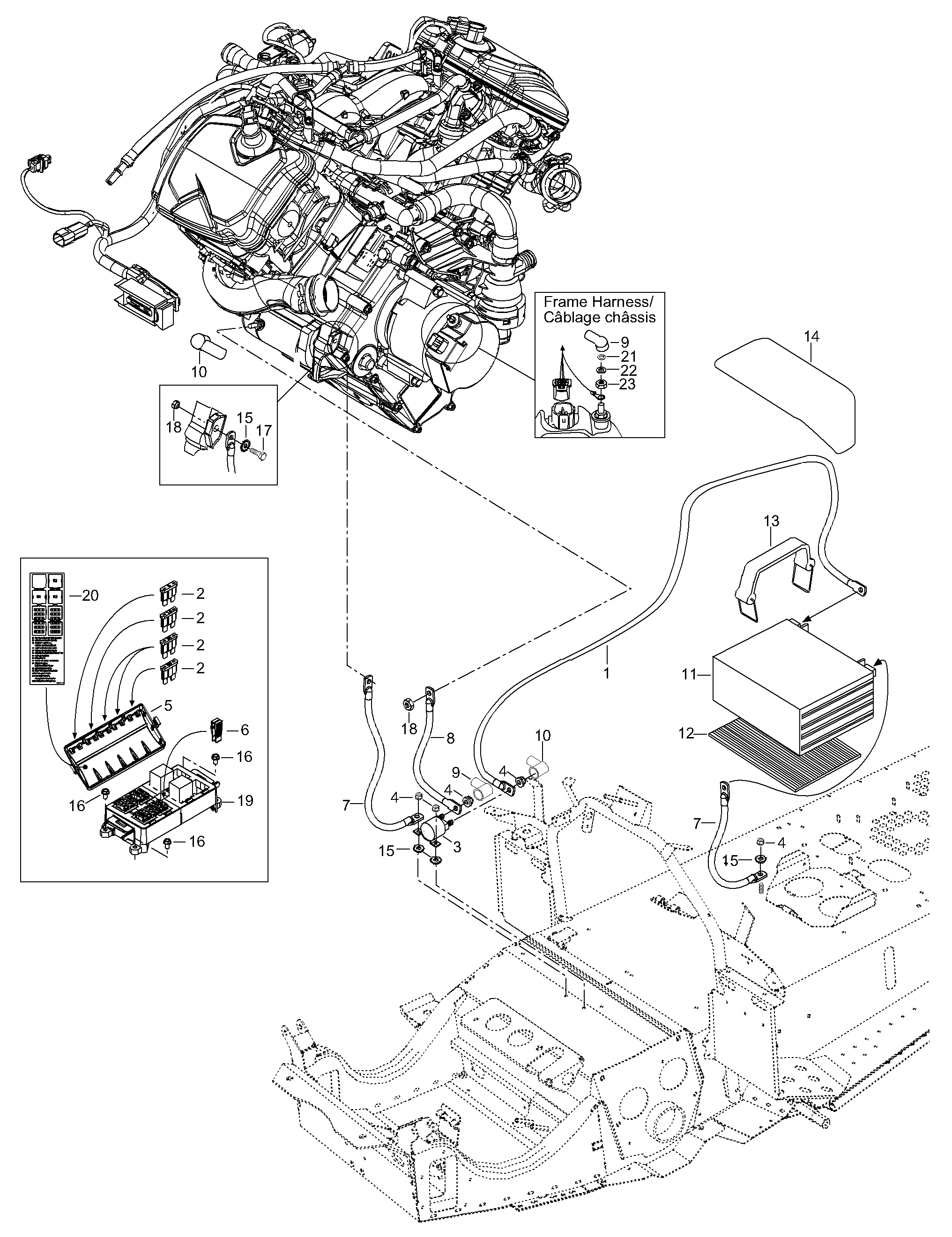

10- Electric Starter Kit для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1605350150 Battery wireBattery wire
-
2278000344 Fuse 5 AFuse 5 A
-
2278000704 Fuse 7.5 AFuse 7.5 A
-
2278001143 Fuse 20 AFuse 20 A
-
2410917200 Fuse 30 AFuse 30 A
-
2409012800 Fuse 1 AFuse 1 A
-
2415128525 Fuse 0.5 AFuse 0.5 A
-
3515176011 Relay-starterRelay-starter
-
433200 Elastic flanged nut M6Elastic flanged nut M6
-
5515176066 CoverCover
-
6515175811 ToolTool
-
7515175483 Ground wireGround wire
-
8515175793 Battery wireBattery wire
-
9570151000 Cap protection, blackCap protection, black
-
10278000020 Cap protectionCap protection
-
11515175895 BatteryBattery
-
12605350148 RubberRubber
-
13515175955 Battery strapBattery strap
-
14605350792 Cover, batteryCover, battery
-
1520017 WasherWasher
-
16210251680 Screw M5 x 16Screw M5 x 16
-
1740030 Screw M6 x 20Screw M6 x 20
-
1833010 Nut elastic M6Nut elastic M6
-
19515176065 Fuse boxFuse box
-
20605451465 Decal, fuseDecal, fuse
-
2120052 Spring washerSpring washer
-
2220003 WasherWasher
-
2333005 Nut M6Nut M6
