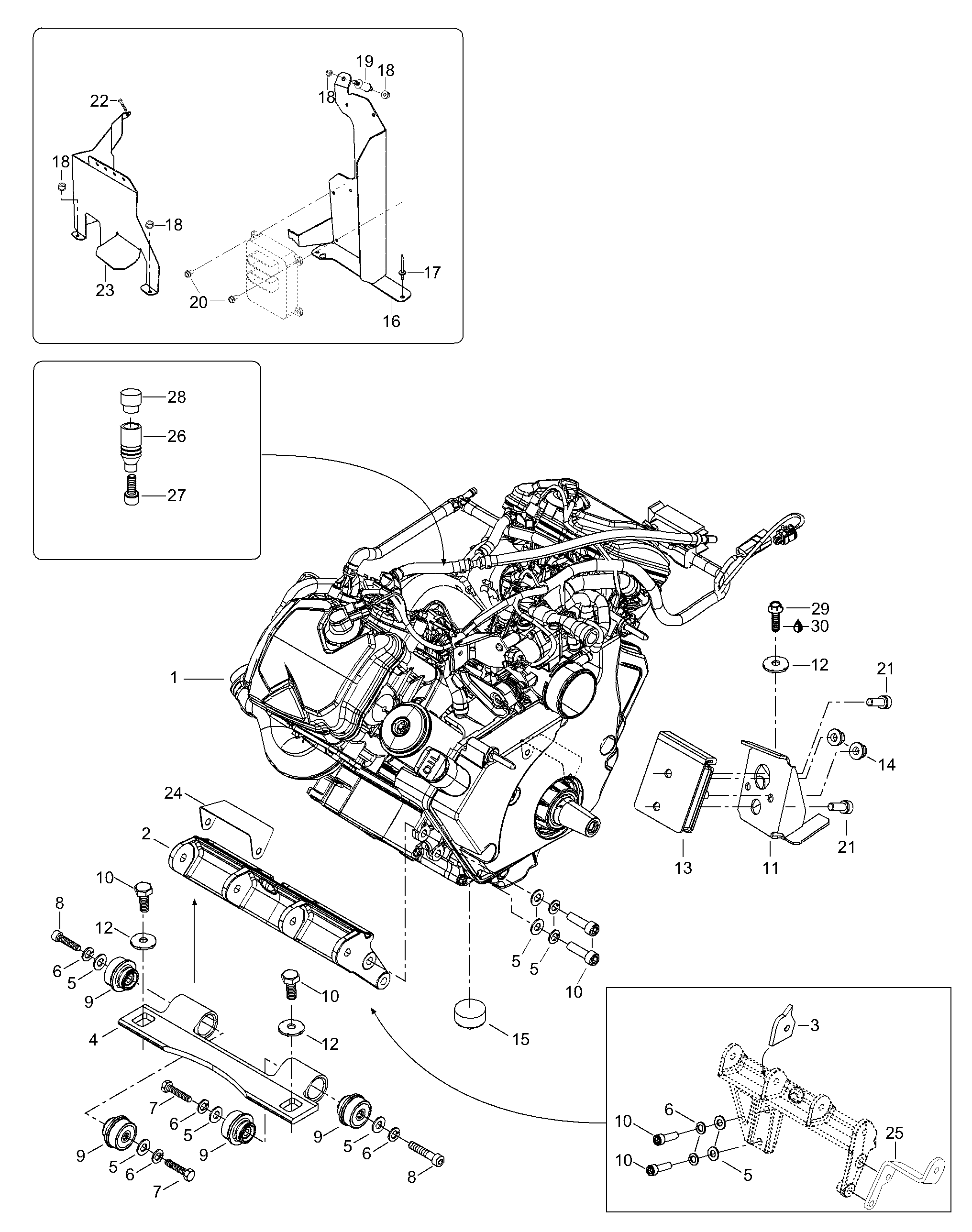

01- Engine Mount Plate для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
111000125 EngineEngine
-
2605250888 Engine supportEngine support
-
3605451306 Extension plateExtension plate
-
4512059425 Engine support, frontEngine support, front
-
520005 WasherWasher
-
620113 Spring washerSpring washer
-
7205003544 Screw M10 x 35Screw M10 x 35
-
840352 Allen screw M10 x 40Allen screw M10 x 40
-
9512059691 Rubber mountRubber mount
-
1040041 Screw M10 x 30Screw M10 x 30
-
11605350835 Engine support, rearEngine support, rear
-
12512056700 Lock washerLock washer
-
13512059316 Rubber mountRubber mount
-
1433074 Elastic flanged nut M10Elastic flanged nut M10
-
15512059710 Rubber mountRubber mount
-
16605250844 Support plateSupport plate
-
1736005 RivetRivet
-
1833200 Elastic flanged nut M6Elastic flanged nut M6
-
1912419 Rubber mountRubber mount
-
2040327 Screw M6 x 12Screw M6 x 12
-
2140053 Allen screw M10 x 25Allen screw M10 x 25
-
2240029 Screw M6 x 16Screw M6 x 16
-
23605351330 Heat protectorHeat protector
-
24514053620 Heat protectorHeat protector
-
25605349867 BracketBracket
-
26605350745 SupportSupport
-
2740053 Allen screw M10 x 25Allen screw M10 x 25
-
28570044700 Rubber damperRubber damper
-
2940335 Screw M10 x 30Screw M10 x 30
-
30293800060 Loctite 243, 10mlLoctite 243, 10ml
