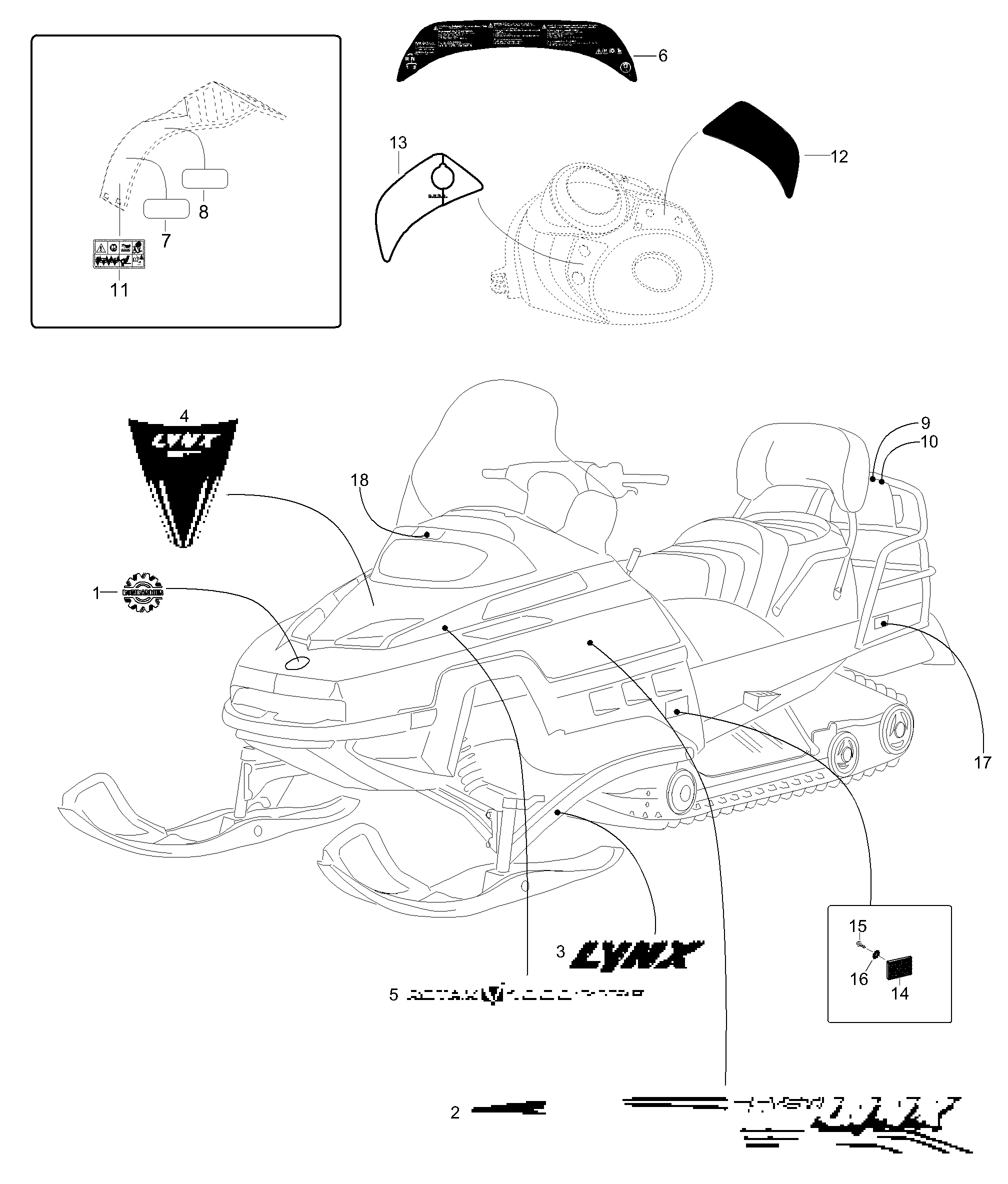

09- Decals для BRP Lynx 59 YETI - 2004
-
№АртикулНазвание
-
1704900130 Decal BombardierDecal Bombardier
-
2605350076 Decal, lower hood R.H.Decal, lower hood R.H.
-
2605350077 Decal, lower hood R.H.Decal, lower hood R.H.
-
3605350078 R.H./L.H. arm decalR.H./L.H. arm decal
-
4605350080 Front decal, hoodFront decal, hood
-
5605349728 Decal, Rotax V1000Decal, Rotax V1000
-
6605351159 Instruction decalInstruction decal
-
75447014 Warning decalWarning decal
-
85447012 Oil cheking decalOil cheking decal
-
95447929 Instruction decalInstruction decal
-
10605448799 Decal, pulling barDecal, pulling bar
-
11605448801 Warning decalWarning decal
-
12605448798 Decal, consoleDecal, console
-
13516001721 Decal D.E.S.S.Decal D.E.S.S.
-
14414510200 Reflector, AmberReflector, Amber
-
1540070 Screw M5 x 10Screw M5 x 10
-
1620018 WasherWasher
-
1721121 Yellow reflectorYellow reflector
-
1821060 Front reflector whiteFront reflector white
