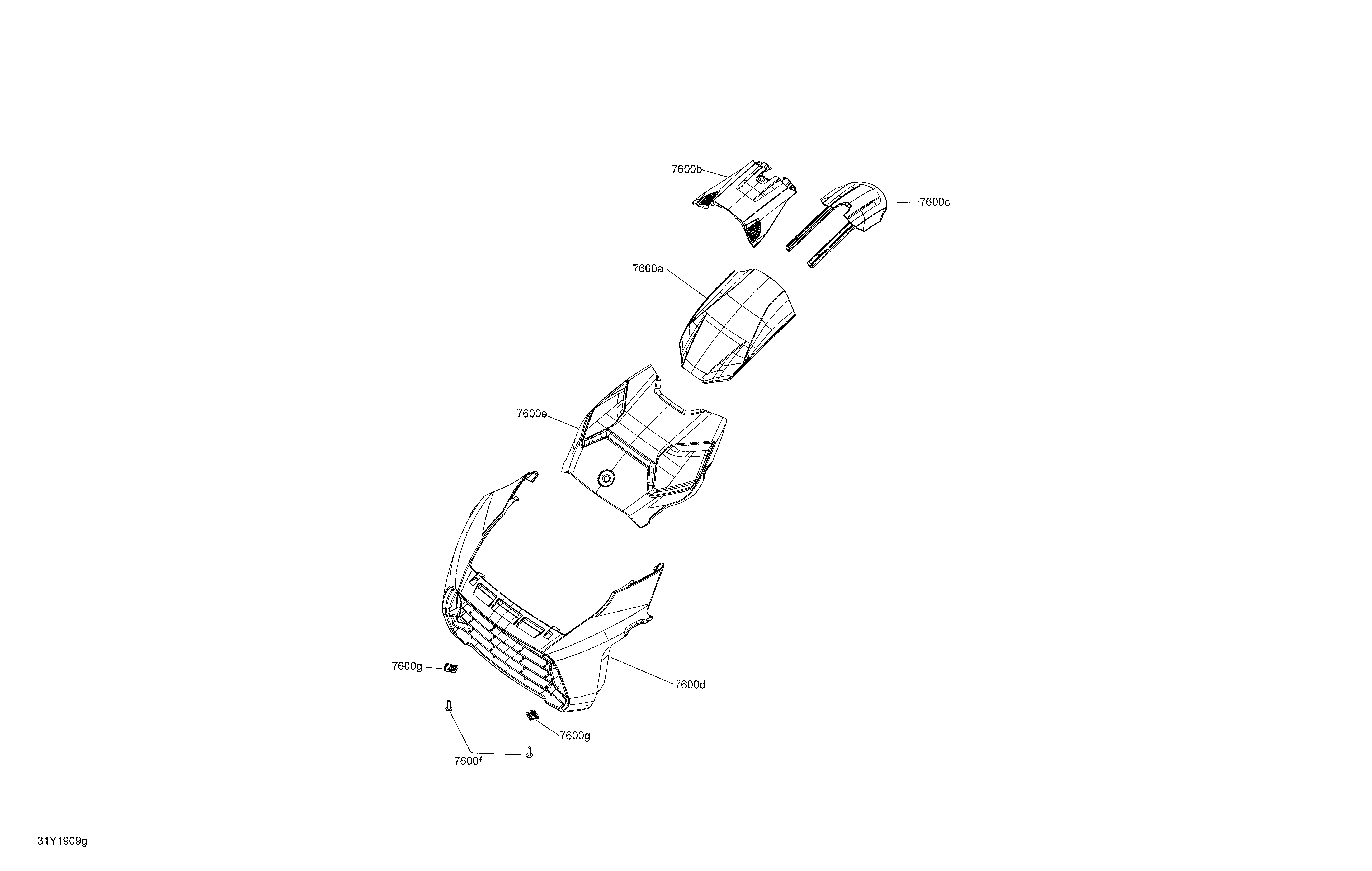

09- Body And Accessories_ Hood - Grill - Upper Body для BRP 001 - RYKER STD 600 ACE - 2019
-
№АртикулНазвание
-
7600a705013200 Trunk Lid AssyTrunk Lid Assy
-
7600b705012727 Upper Fairing, B-160 Deep BlackUpper Fairing, B-160 Deep Black
-
7600c705013529 Fuel Tank Flap AssyFuel Tank Flap Assy
-
7600d705010722 Front Fascia, B-160 Deep BlackFront Fascia, B-160 Deep Black
-
7600e705011459 Hood, B-160 Deep BlackHood, B-160 Deep Black
-
7600f250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7600g250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7600h705013475 PivotPivot
-
7600i250000577 Torx Truss Screw K40 X 12. Not shownTorx Truss Screw K40 X 12. Not shown
