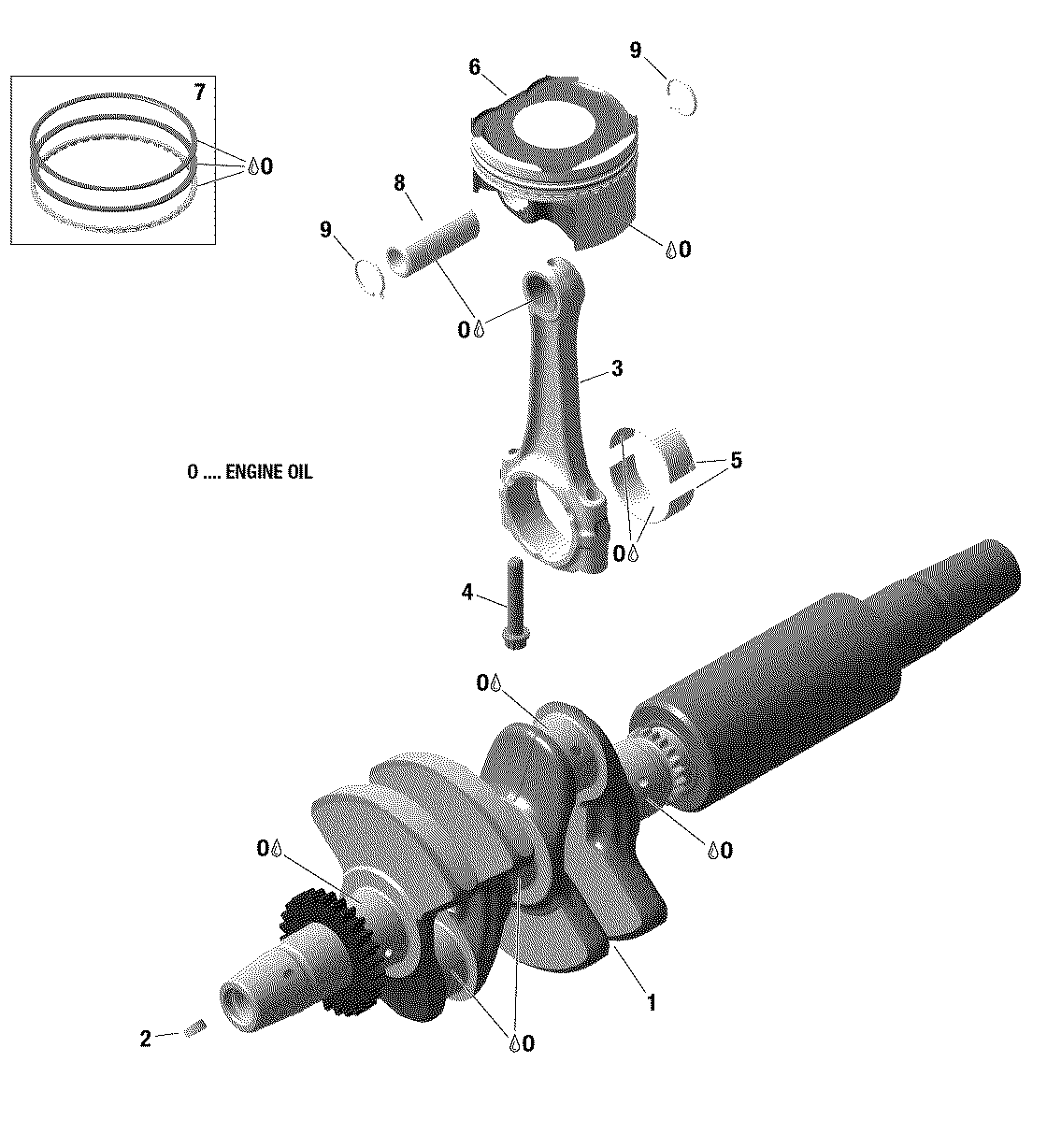

01- Engine - Crankshaft And Pistons - 600 ACE для BRP 001 - RYKER STD 600 ACE - 2019

  • №
    Артикул
    Название
  • 1>2
    420819980 Crankshaft
    Crankshaft
  • 2
    420246570 Woodruff Key 4 X 5
    Woodruff Key 4 X 5
  • 3>4
    420917706 Connecting Rod
    Connecting Rod
  • 4
    420641790 Connecting Rod Screw M7 X 1
    Connecting Rod Screw M7 X 1
  • 5
    420933191 Plain Bearing
    Plain Bearing
  • 6>7
    420892821 Piston Ass'y, 73.958 mm
    Piston Ass'y, 73.958 mm
  • 7
    420892824 Piston Ring Set
    Piston Ring Set
  • 8
    420916510 Piston Pin
    Piston Pin
  • 9
    420845810 Piston Circlip
    Piston Circlip
