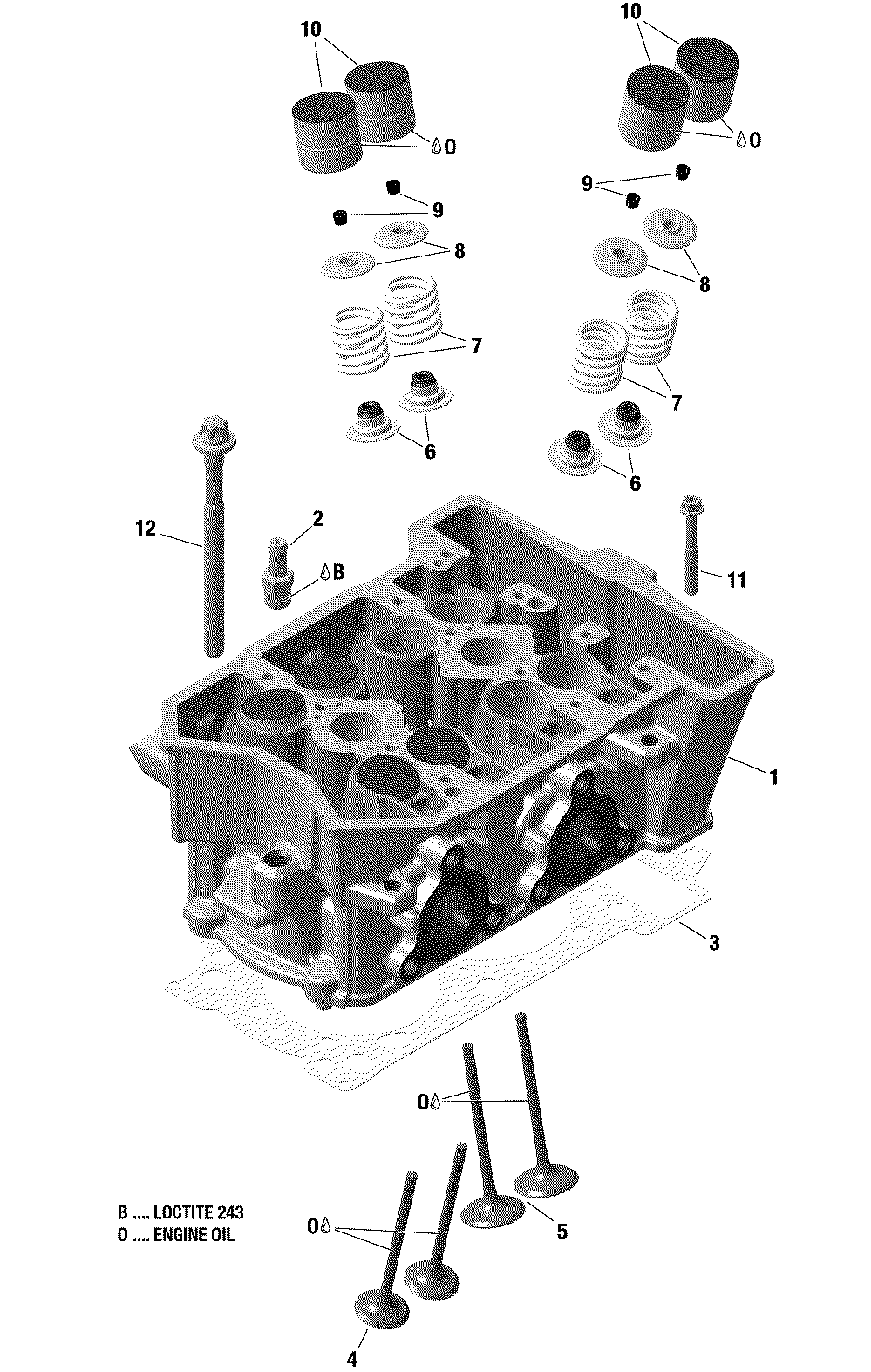

01- Engine - Cylinder Head - 600 ACE для BRP 001 - RYKER STD 600 ACE - 2019

‹-+›
  • №
    Артикул
    Название
  • 1
    420623807 Cylinderhead Ass'y
    Cylinderhead Ass'y
  • 2
    420441420 Hose Nipple
    Hose Nipple
  • 3
    420431611 Cylinder Head Gasket
    Cylinder Head Gasket
  • 4
    420855141 Exhaust Valve 25MM
    Exhaust Valve 25MM
  • 5
    420855131 Intake Valve 29MM
    Intake Valve 29MM
  • 6
    420431671 Valve Stem Seal
    Valve Stem Seal
  • 7
    420939540 Valve Spring
    Valve Spring
  • 8
    420855150 Valve Spring Retainer
    Valve Spring Retainer
  • 9
    420254630 Cotter Valve
    Cotter Valve
  • 10
    420855165 Valve Lifter Bucket
    Valve Lifter Bucket
  • 11
    420440324 Flanged Torx Screw M6 X 45
    Flanged Torx Screw M6 X 45
  • 12
    420940945 Flanged Torx Screw M9 X 113
    Flanged Torx Screw M9 X 113
