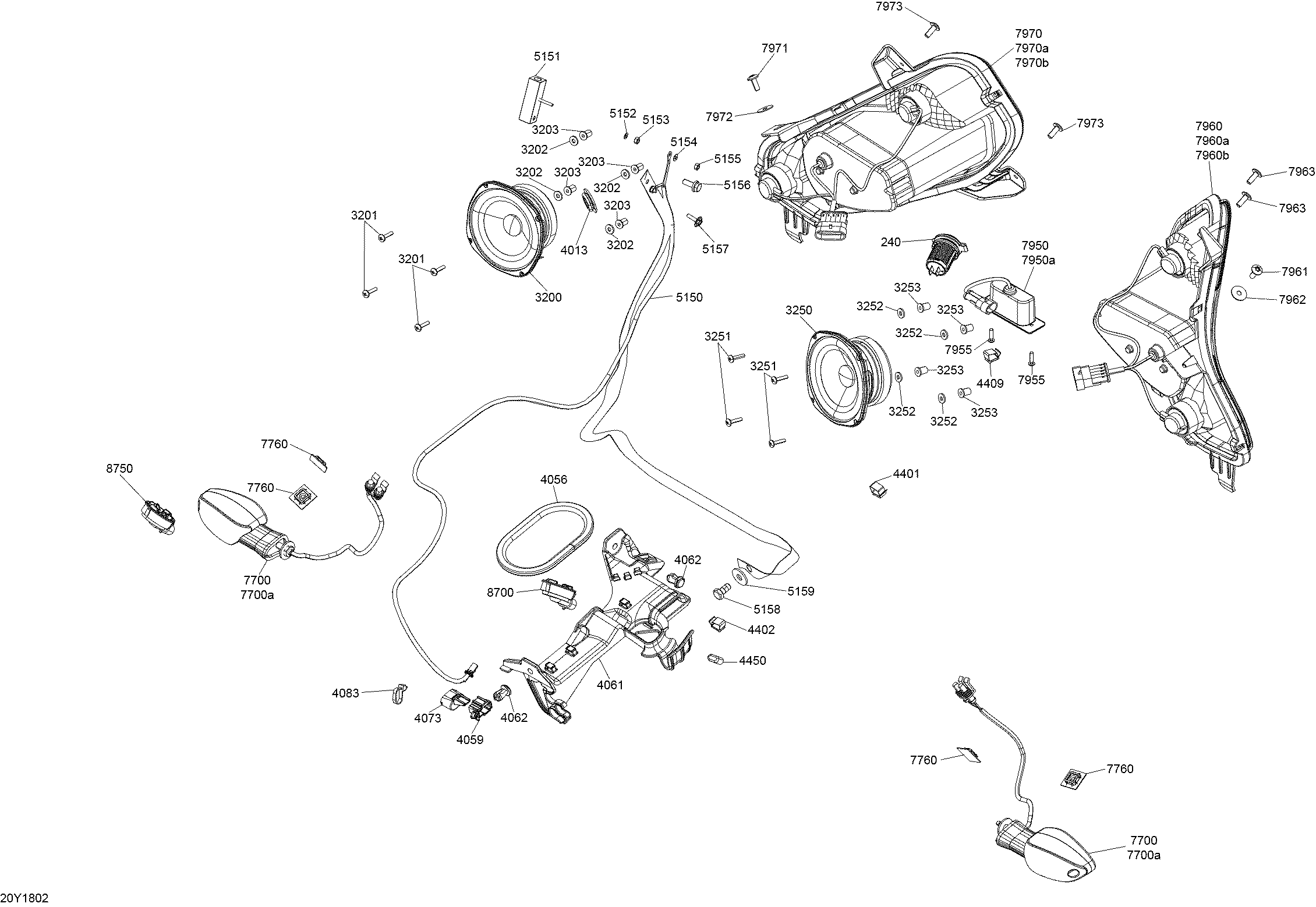

10- Electrical Cargo для BRP RT LTD SE6 - 2018
-
№АртикулНазвание
-
240219400510 USB OutletUSB Outlet
-
3200710005433 4.5'' Speaker4.5'' Speaker
-
3201250000783 TORX-TRUSS M/S M4 X 20TORX-TRUSS M/S M4 X 20
-
3202517225900 Flat WasherFlat Washer
-
3203705003635 Well Rubber Nut M4 X 0.7Well Rubber Nut M4 X 0.7
-
3250710005433 4.5'' Speaker4.5'' Speaker
-
3251250000783 TORX-TRUSS M/S M4 X 20TORX-TRUSS M/S M4 X 20
-
3252517225900 Flat WasherFlat Washer
-
3253705003635 Well Rubber Nut M4 X 0.7Well Rubber Nut M4 X 0.7
-
4013708400166 CapCap
-
4056271001530 TrimTrim
-
4059710004903 Connector PlugConnector Plug
-
4061710002860 Rear SupportRear Support
-
4062293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4073710004902 Connector PlugConnector Plug
-
4083515175220 Tie RapTie Rap
-
4401414227300 ClipClip
-
4402414227300 ClipClip
-
4409414227300 ClipClip
-
4450710002212 Rubber Plug, 16.65 X 5.35 mmRubber Plug, 16.65 X 5.35 mm
-
5150710005506 Antenna Cable AssemblyAntenna Cable Assembly
-
5151710001532 Antenna SupportAntenna Support
-
5152234140602 Curved Stainless Lock Washer DIN.128ACurved Stainless Lock Washer DIN.128A
-
5153232041200 Brass Hex Nut M4 DIN.934Brass Hex Nut M4 DIN.934
-
5154234040200 Brass Flat Washer DIN.433 M4Brass Flat Washer DIN.433 M4
-
5155232041200 Brass Hex Nut M4 DIN.934Brass Hex Nut M4 DIN.934
-
5156207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5157250000725 Screw M4 X 16Screw M4 X 16
-
5158207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
5159234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7700710003567 LH Rear Flasher. Japan. Includes 7700 to 7700aLH Rear Flasher. Japan. Includes 7700 to 7700a
-
7700710003566 RH Rear Flasher. Japan. Includes 7700 to 7700aRH Rear Flasher. Japan. Includes 7700 to 7700a
-
7700a219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
7760293750040 Tie-rap Mount. JapanTie-rap Mount. Japan
-
7950710001451 License Light. Includes 7950 to 7950aLicense Light. Includes 7950 to 7950a
-
7950a219800128 BulbBulb
-
7955250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
7960710002502 LH Rear Tail Light. Except Japan. Includes 7960 to 7960bLH Rear Tail Light. Except Japan. Includes 7960 to 7960b
-
7960710003575 LH Rear Tail Light. Japan. Includes 7960 to 7960bLH Rear Tail Light. Japan. Includes 7960 to 7960b
-
7960a520000758 BulbBulb
-
7960b219800122 Flasher Bulb. Except JapanFlasher Bulb. Except Japan
-
7960b219800304 Flasher Bulb. JapanFlasher Bulb. Japan
-
7961250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
7962224060201 Flat WasherFlat Washer
-
7963250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
7970710002501 RH Rear Tail Light. Except Japan. Includes 7970 to 7970bRH Rear Tail Light. Except Japan. Includes 7970 to 7970b
-
7970710003576 RH Rear Tail Light. Japan. Includes 7970 to 7970bRH Rear Tail Light. Japan. Includes 7970 to 7970b
-
7970a520000758 BulbBulb
-
7970b219800122 Flasher Bulb. Except JapanFlasher Bulb. Except Japan
-
7970b219800304 Flasher Bulb. JapanFlasher Bulb. Japan
-
7971250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
7972224060201 Flat WasherFlat Washer
-
7973250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
8700710002349 LH HousingLH Housing
-
8750710002464 RH Housing Passenger SwitchRH Housing Passenger Switch
