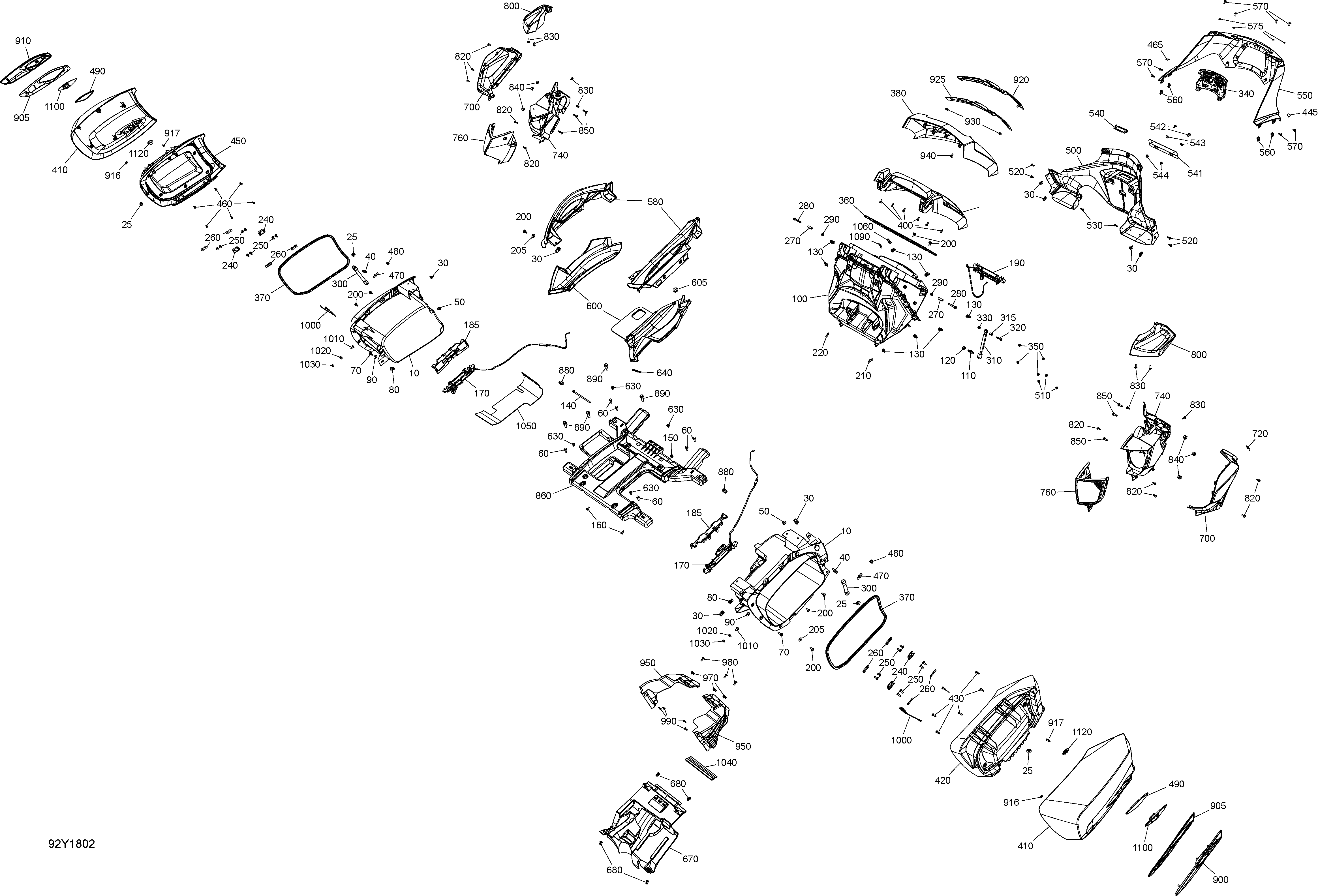

09- Cargo для BRP RT LTD SE6 - 2018

  • №
    Артикул
    Название
  • 10
    708301016 Cargo Box Inner LH
    Cargo Box Inner LH
  • 10
    708301017 Cargo Box Inner RH
    Cargo Box Inner RH
  • 25
    708301025 Grommet. Japan
    Grommet. Japan
  • 30
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 40
    250300016 Ball Head Stud
    Ball Head Stud
  • 50
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 60
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 70
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 80
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 90
    224061201 Flat Washer
    Flat Washer
  • 100
    708301798 Storage Bin Ass'y Rear. Includes 100 to 100,001
    Storage Bin Ass'y Rear. Includes 100 to 100,001
  • 100a
    414843500 VELCRO-#8MVA HOOK, 1M Pack. Not Shown
    VELCRO-#8MVA HOOK, 1M Pack. Not Shown
  • 110
    250300039 Ball Head Stud
    Ball Head Stud
  • 120
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 130
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 140
    230663084 Hex. Flanged Screw M6 X 130
    Hex. Flanged Screw M6 X 130
  • 150
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 160
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 170
    708301640 Latch Ass'y LH
    Latch Ass'y LH
  • 170
    708301641 Latch Ass'y RH
    Latch Ass'y RH
  • 185
    708300514 Latch Protector
    Latch Protector
  • 190
    708301642 Center Latch
    Center Latch
  • 200
    250000881 Torx Truss M8 X 16
    Torx Truss M8 X 16
  • 205
    250200164 Flat washer M6
    Flat washer M6
  • 210
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 220
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 240
    708300006 Hinge
    Hinge
  • 250
    250000881 Torx Truss M8 X 16
    Torx Truss M8 X 16
  • 260
    708300129 Plate Support
    Plate Support
  • 270
    708300394 Spacer
    Spacer
  • 280
    207664544 Flanged Hex. Screw M6 X 45
    Flanged Hex. Screw M6 X 45
  • 290
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 300
    708300011 Gaz Shock
    Gaz Shock
  • 310
    708300383 Gaz Shock
    Gaz Shock
  • 315
    708300384 Spacer
    Spacer
  • 320
    250000843 Torx Truss Screw M6 X 30
    Torx Truss Screw M6 X 30
  • 330
    232361493 Domed Nut M6
    Domed Nut M6
  • 340
    708302620 Main Control (WO lock cylinder)
    Main Control (WO lock cylinder)
  • 350
    250000349 Torx Truss Screw M6 X 10
    Torx Truss Screw M6 X 10
  • 360
    293830188 Seal, 1PC = 3M
    Seal, 1PC = 3M
  • 370
    293830188 Seal, 1PC = 3M
    Seal, 1PC = 3M
  • 380
    708300700 Cover Trunk Rear, Vegas White B-313. Model Pearl White
    Cover Trunk Rear, Vegas White B-313. Model Pearl White
  • 380
    708301731 Ivory Central Cover. Model Ivory
    Ivory Central Cover. Model Ivory
  • 380
    708301806 Cover Trunk Rear, Asphalt Grey B-388. Model Asphalt Gray
    Cover Trunk Rear, Asphalt Grey B-388. Model Asphalt Gray
  • 380
    708302496 Cover Trunk Rear, Blue Oxford B-406. Model Oxford Blue
    Cover Trunk Rear, Blue Oxford B-406. Model Oxford Blue
  • 380
    708302497 Jet Black, Central Cover. Model Jet Black
    Jet Black, Central Cover. Model Jet Black
  • 390
    708300678 Inner Cover
    Inner Cover
  • 400
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 410
    708300693 Cover Trunk LH, Vegas White B-313. Model Pearl White Except Japan
    Cover Trunk LH, Vegas White B-313. Model Pearl White Except Japan
  • 410
    708301190 Cover Trunk LH, Vegas White B-313. Japan Model Pearl White
    Cover Trunk LH, Vegas White B-313. Japan Model Pearl White
  • 410
    708301732 Ivory LH Cover. Model Ivory
    Ivory LH Cover. Model Ivory
  • 410
    708302278 Cover Trunk LH, Asphalt Grey B-388. Model Asphalt Gray Except Japan
    Cover Trunk LH, Asphalt Grey B-388. Model Asphalt Gray Except Japan
  • 410
    708302279 Cover Trunk LH, Asphalt Grey B-388. Japan Model Asphalt Gray
    Cover Trunk LH, Asphalt Grey B-388. Japan Model Asphalt Gray
  • 410
    708302498 Cover Trunk LH, Oxford Blue B-406. Model Oxford Blue
    Cover Trunk LH, Oxford Blue B-406. Model Oxford Blue
  • 410
    708302499 Jet Black Met., LH Cover. Model Jet Black Except Japan
    Jet Black Met., LH Cover. Model Jet Black Except Japan
  • 410
    708302500 Jet Black Met. LH Cover. Japan Model Jet Black
    Jet Black Met. LH Cover. Japan Model Jet Black
  • 420
    708301023 Cover Interior LH
    Cover Interior LH
  • 430
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 410
    708300692 Cover Trunk RH, Vegas White B-313. Model Pearl White Except Japan
    Cover Trunk RH, Vegas White B-313. Model Pearl White Except Japan
  • 410
    708301191 Cover Trunk RH, Vegas White B-313. Japan Model Pearl White
    Cover Trunk RH, Vegas White B-313. Japan Model Pearl White
  • 410
    708301733 Ivory RH Cover. Model Ivory
    Ivory RH Cover. Model Ivory
  • 410
    708302280 Cover Trunk RH, Asphalt Grey B-388. Model Asphalt Gray Except Japan
    Cover Trunk RH, Asphalt Grey B-388. Model Asphalt Gray Except Japan
  • 410
    708302281 Cover Trunk RH, Asphalt Grey B-388. Japan Model Asphalt Gray
    Cover Trunk RH, Asphalt Grey B-388. Japan Model Asphalt Gray
  • 410
    708302501 Jet Black Met., RH Cover. Japan Model Jet Black
    Jet Black Met., RH Cover. Japan Model Jet Black
  • 410
    708302502 Jet Black Met., RH Cover. Model Jet Black Except Japan
    Jet Black Met., RH Cover. Model Jet Black Except Japan
  • 410
    708302503 Cover Trunk RH, Oxford Blue B-406. Model Oxford Blue
    Cover Trunk RH, Oxford Blue B-406. Model Oxford Blue
  • 445
    518327441 Lateral Console Foam
    Lateral Console Foam
  • 450
    708301022 Cover Interior RH
    Cover Interior RH
  • 460
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 465
    518327441 Lateral Console Foam
    Lateral Console Foam
  • 470
    250300016 Ball Head Stud
    Ball Head Stud
  • 480
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 490
    705002423 Lateral Reflector, Amber. Australia / Europe
    Lateral Reflector, Amber. Australia / Europe
  • 490
    705003412 Lateral Reflector, Red. North America
    Lateral Reflector, Red. North America
  • 500
    708302277 Fender Rear
    Fender Rear
  • 510
    250000349 Torx Truss Screw M6 X 10
    Torx Truss Screw M6 X 10
  • 520
    250000881 Torx Truss M8 X 16
    Torx Truss M8 X 16
  • 530
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 540
    708300177 License Plate Light Support
    License Plate Light Support
  • 541
    708301523 License Plate Support. Japan
    License Plate Support. Japan
  • 542
    250000881 Torx Truss M8 X 16. Japan
    Torx Truss M8 X 16. Japan
  • 543
    250200164 Flat washer M6. Japan
    Flat washer M6. Japan
  • 544
    233261494 Hex. Elastic Flanged Nut M6. Japan
    Hex. Elastic Flanged Nut M6. Japan
  • 550
    708301564 Rear Pannel, Vegas White B-313. Model Pearl White
    Rear Pannel, Vegas White B-313. Model Pearl White
  • 550
    708301736 Ivory Rear Pannel. Model Ivory
    Ivory Rear Pannel. Model Ivory
  • 550
    708301811 Rear Pannel, Asphalt Gray B-388. Model Asphalt Gray
    Rear Pannel, Asphalt Gray B-388. Model Asphalt Gray
  • 550
    708302504 Rear Panel, Oxford Blue B-406. Model Oxford Blue
    Rear Panel, Oxford Blue B-406. Model Oxford Blue
  • 550
    708302505 Jet Black Met., Rear Panel. Model Jet Black
    Jet Black Met., Rear Panel. Model Jet Black
  • 560
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 570
    250000881 Torx Truss M8 X 16
    Torx Truss M8 X 16
  • 575
    705003207 Plastic Washer
    Plastic Washer
  • 580
    708300496 LH Passenger Handle Heat Ass'y. Includes 580 to 580,002
    LH Passenger Handle Heat Ass'y. Includes 580 to 580,002
  • 580a
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 580b
    710000667 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 580
    708300498 RH Passenger Handle Heat Ass'y. Includes 590 to 590,002
    RH Passenger Handle Heat Ass'y. Includes 590 to 590,002
  • 580a
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 580b
    710000667 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 600
    708300209 LH Handle Pannel
    LH Handle Pannel
  • 605
    708300405 Cap
    Cap
  • 600
    708300027 RH Handle Pannel
    RH Handle Pannel
  • 630
    250000804 Torx Screw M6 X 12
    Torx Screw M6 X 12
  • 670
    708300028 Under Tail Rear Wheel Cover
    Under Tail Rear Wheel Cover
  • 680
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 700
    708300708 Arm Cover LH, Vegas White B-313. Model Pearl White
    Arm Cover LH, Vegas White B-313. Model Pearl White
  • 700
    708301737 Ivory LH Arm Cover. Model Ivory
    Ivory LH Arm Cover. Model Ivory
  • 700
    708301813 Arm Cover LH, Asphalt Gray B-388. Model Asphalt Gray
    Arm Cover LH, Asphalt Gray B-388. Model Asphalt Gray
  • 700
    708302506 Jet Black Met., LH Arm Cover. Model Jet Black
    Jet Black Met., LH Arm Cover. Model Jet Black
  • 700
    708302507 Arm Cover LH, Oxford Blue B-406. Model Oxford Blue
    Arm Cover LH, Oxford Blue B-406. Model Oxford Blue
  • 700
    708300709 Arm Cover RH, Vegas White B-313. Model Pearl White
    Arm Cover RH, Vegas White B-313. Model Pearl White
  • 700
    708301738 Ivory RH Arm Cover. Model Ivory
    Ivory RH Arm Cover. Model Ivory
  • 700
    708301814 Arm Cover RH, Asphalt Gray B-388. Model Asphalt Gray
    Arm Cover RH, Asphalt Gray B-388. Model Asphalt Gray
  • 700
    708302508 Jet Black Met., RH Arm Cover. Model Jet Black
    Jet Black Met., RH Arm Cover. Model Jet Black
  • 700
    708302509 Arm Cover RH, Oxford Blue B-406. Model Oxford Blue
    Arm Cover RH, Oxford Blue B-406. Model Oxford Blue
  • 720
    708300716 Antenna Cap LH, Vegas White B-313. Model Pearl White
    Antenna Cap LH, Vegas White B-313. Model Pearl White
  • 720
    708301739 Ivory LH Cap. Model Ivory
    Ivory LH Cap. Model Ivory
  • 720
    708301812 Antenna Cap LH, Asphalt Gray B-388. Model Asphalt Gray
    Antenna Cap LH, Asphalt Gray B-388. Model Asphalt Gray
  • 720
    708302510 Jet Black Met., LH Cap. Model Jet Black
    Jet Black Met., LH Cap. Model Jet Black
  • 720
    708302511 Antenna Cap LH, Oxford Blue B-406. Model Oxford Blue
    Antenna Cap LH, Oxford Blue B-406. Model Oxford Blue
  • 740
    708301555 Sound Box LH
    Sound Box LH
  • 740
    708301556 Sound Box RH
    Sound Box RH
  • 760
    708302609 LH Grill Sup.
    LH Grill Sup.
  • 765
    708302567 LH Rear Grill. Not Shown
    LH Rear Grill. Not Shown
  • 760
    708302610 Central LH Rear Grill
    Central LH Rear Grill
  • 775
    293720115 Grommet. Not Shown
    Grommet. Not Shown
  • 780
    708302611 RH Grill Sup.. Not Shown
    RH Grill Sup.. Not Shown
  • 785
    708302568 RH Rear Grill. Not Shown
    RH Rear Grill. Not Shown
  • 790
    708302612 Central RH Rear Grill. Not Shown
    Central RH Rear Grill. Not Shown
  • 795
    293720115 Grommet. Not Shown
    Grommet. Not Shown
  • 800
    708000614 Deep Black LH Arm Rest
    Deep Black LH Arm Rest
  • 810
    708000615 Deep Black RH Arm Rest
    Deep Black RH Arm Rest
  • 820
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 830
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 840
    269501166 Nut Housing Ass'y. Includes 840 to 840a
    Nut Housing Ass'y. Includes 840 to 840a
  • 840a
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 850
    250000880 Torx-Truss M/S M6 X 25
    Torx-Truss M/S M6 X 25
  • 860
    708300781 Rear Support Ass'y. Includes 860 to 860a1
    Rear Support Ass'y. Includes 860 to 860a1
  • 860a
    269500725 Nut Housing Ass'y. Includes 860a to 860a1
    Nut Housing Ass'y. Includes 860a to 860a1
  • 860a1
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 880
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 890
    207583044 Hex. Flanged Screw M8 X 30, Scotch Grip
    Hex. Flanged Screw M8 X 30, Scotch Grip
  • 900
    708302512 LH Trim Saddlebag B-257. Package 10TH Except Japan
    LH Trim Saddlebag B-257. Package 10TH Except Japan
  • 900
    708302513 LH Trim Saddlebag B-257. Package 10TH Japan
    LH Trim Saddlebag B-257. Package 10TH Japan
  • 900
    708302514 LH Trim Saddlebag B-322. Package Dark
    LH Trim Saddlebag B-322. Package Dark
  • 900
    708302515 Trim Saddlebag LH , Chrome. Package Chrome Excepte Japan
    Trim Saddlebag LH , Chrome. Package Chrome Excepte Japan
  • 900
    708302516 Trim Saddlebag LH , Chrome. Package Chrome & Japan
    Trim Saddlebag LH , Chrome. Package Chrome & Japan
  • 905
    708300650 Moulding Trim LH
    Moulding Trim LH
  • 900
    708302517 Trim Saddlebag RH, Chrome. Package Chrome Excepte Japan
    Trim Saddlebag RH, Chrome. Package Chrome Excepte Japan
  • 900
    708302518 Trim Saddlebag RH, Chrome. Package Chrome Japan
    Trim Saddlebag RH, Chrome. Package Chrome Japan
  • 900
    708302519 RH Trim Saddlebag B-322. Package Dark
    RH Trim Saddlebag B-322. Package Dark
  • 900
    708302520 RH Trim Saddlebag B-257. Package 10TH Except Japan
    RH Trim Saddlebag B-257. Package 10TH Except Japan
  • 900
    708302521 RH Trim Saddlebag B-257. Package 10TH Japan
    RH Trim Saddlebag B-257. Package 10TH Japan
  • 905
    708300651 RH Moulding Trim
    RH Moulding Trim
  • 916
    250100163 Pressure Nut
    Pressure Nut
  • 917
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 920
    708301073 Trim Trunk Rear, Chrome. Package Chrome. Includes 920 to 920,001
    Trim Trunk Rear, Chrome. Package Chrome. Includes 920 to 920,001
  • 920a
    219400192 Moulding Kit. Not Shown. Package Chrome
    Moulding Kit. Not Shown. Package Chrome
  • 920
    708301822 Black Carbon Moulding. Package Dark
    Black Carbon Moulding. Package Dark
  • 920
    708302522 Liquid Gold Satin, Center Moulding. Package 10TH
    Liquid Gold Satin, Center Moulding. Package 10TH
  • 925
    708300652 Central Moulding Trim
    Central Moulding Trim
  • 930
    250100163 Pressure Nut
    Pressure Nut
  • 940
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 950
    708300327 LH Inner Fender
    LH Inner Fender
  • 960
    708300328 RH Inner Fender
    RH Inner Fender
  • 970
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 980
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 990
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 1000
    708300385 Retainer Cable
    Retainer Cable
  • 1010
    250000881 Torx Truss M8 X 16
    Torx Truss M8 X 16
  • 1020
    211200055 Flat Washer, Stainless/Neoprene
    Flat Washer, Stainless/Neoprene
  • 1030
    232061414 Hex. Nut M6
    Hex. Nut M6
  • 1040
    708300397 Seal
    Seal
  • 1050
    705004173 Heat Shield
    Heat Shield
  • 1060
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 1090
    293750040 Tie-rap Mount (square - self-adhsive)
    Tie-rap Mount (square - self-adhsive)
  • 1100
    708300979 LH Flash Support. Japan
    LH Flash Support. Japan
  • 1110
    708300980 RH Flash Support. Japan
    RH Flash Support. Japan
  • 1120
    708301024 Retaining Washer. Japan
    Retaining Washer. Japan
  • 1200
    250000303 Torx Truss Screw M6 X 20. Not Shown
    Torx Truss Screw M6 X 20. Not Shown
  • 1210
    234062600 Flat Washer M6, Stainless. Not Shown
    Flat Washer M6, Stainless. Not Shown
  • 1220
    233261494 Hex. Elastic Flanged Nut M6. Not Shown
    Hex. Elastic Flanged Nut M6. Not Shown
  • 1230
    708302047 Radio Antenna Base RH, 11.7mm Dia.. Not Shown
    Radio Antenna Base RH, 11.7mm Dia.. Not Shown

Все узлы модели:
