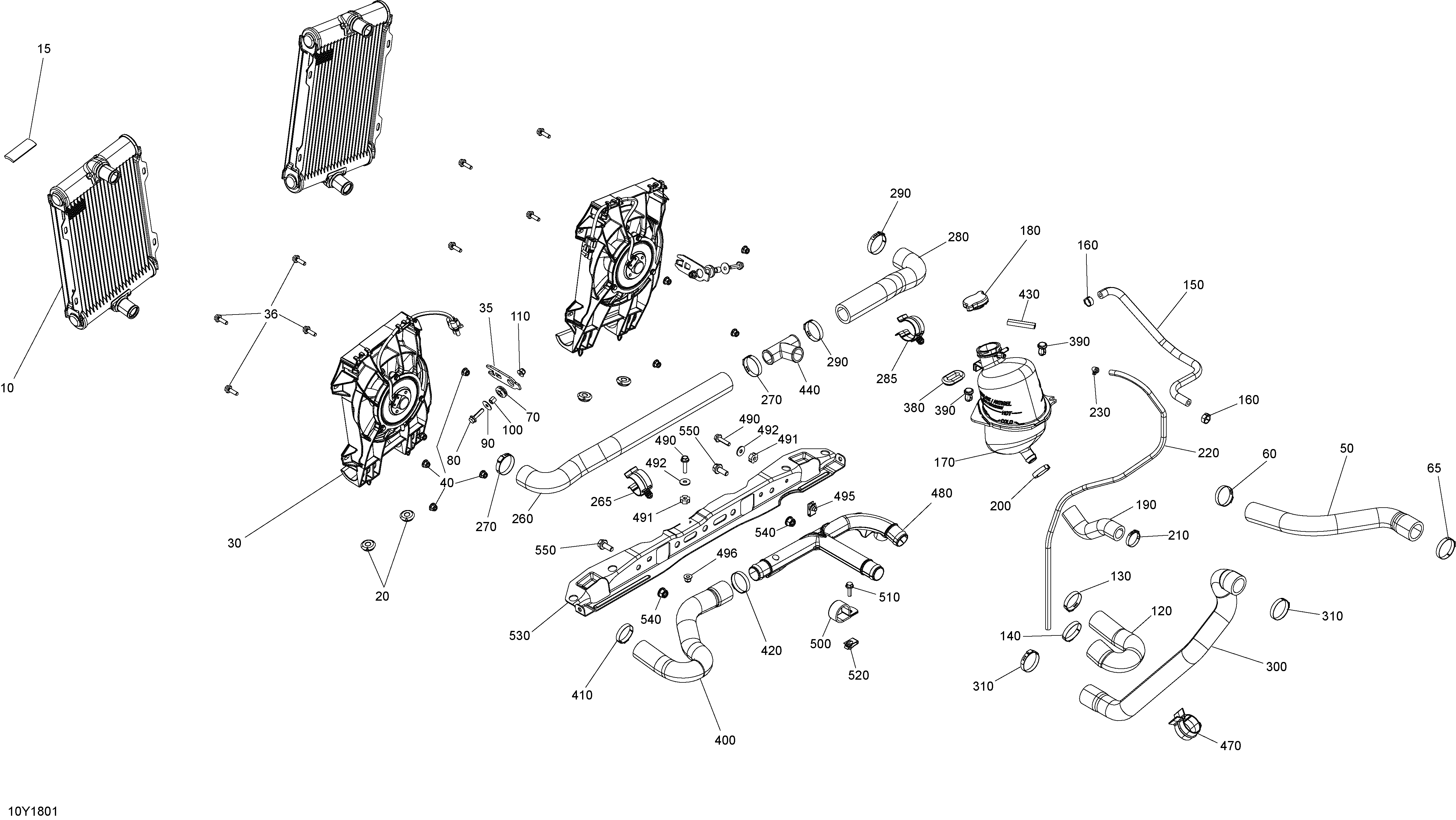

01- Cooling для BRP RT LTD SE6 - 2018
-
№АртикулНазвание
-
10709200314 RadiatorRadiator
-
15293830159 PadPad
-
20705003264 GrommetGrommet
-
30709200555 Fan AssemblyFan Assembly
-
35709200404 SupportSupport
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50709200322 Formed HoseFormed Hose
-
60509000045 Oetiker Gear ClampOetiker Gear Clamp
-
65293650199 Oetiker Gear ClampOetiker Gear Clamp
-
70293720053 GrommetGrommet
-
80207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
90224060201 Flat WasherFlat Washer
-
100293900105 BushingBushing
-
110233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
120709200319 Formed HoseFormed Hose
-
130509000045 Oetiker Gear ClampOetiker Gear Clamp
-
140293650199 Oetiker Gear ClampOetiker Gear Clamp
-
150709200324 Formed HoseFormed Hose
-
160293650046 Oetiker ClampOetiker Clamp
-
170709200749 Tank CoolantTank Coolant
-
180509000187 Pressure CapPressure Cap
-
190709200499 Formed HoseFormed Hose
-
200293650165 Oetiker Gear ClampOetiker Gear Clamp
-
210293650051 Tridon Gear ClampTridon Gear Clamp
-
220415080200 Hose, PolyurethaneHose, Polyurethane
-
230414554800 Spring ClampSpring Clamp
-
260709200329 Formed HoseFormed Hose
-
265275500951 ClipClip
-
270509000045 Oetiker Gear ClampOetiker Gear Clamp
-
280709200323 Formed HoseFormed Hose
-
285275500951 ClipClip
-
290509000045 Oetiker Gear ClampOetiker Gear Clamp
-
300709200321 Formed HoseFormed Hose
-
310293650199 Oetiker Gear ClampOetiker Gear Clamp
-
380705003668 Oblong GrommetOblong Grommet
-
390293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
400709200376 Formed HoseFormed Hose
-
410509000045 Oetiker Gear ClampOetiker Gear Clamp
-
420293650199 Oetiker Gear ClampOetiker Gear Clamp
-
430271001530 TrimTrim
-
440509000219 T-FittingT-Fitting
-
470275500590 RetainerRetainer
-
480709200468 ConnectorConnector
-
490207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
491293830160 Shock WasherShock Washer
-
492234062410 Flat Washer 6 mmFlat Washer 6 mm
-
495250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
496233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
500293750035 Open ClampOpen Clamp
-
510207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
520250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
530709200400 SupportSupport
-
540233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
550207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
