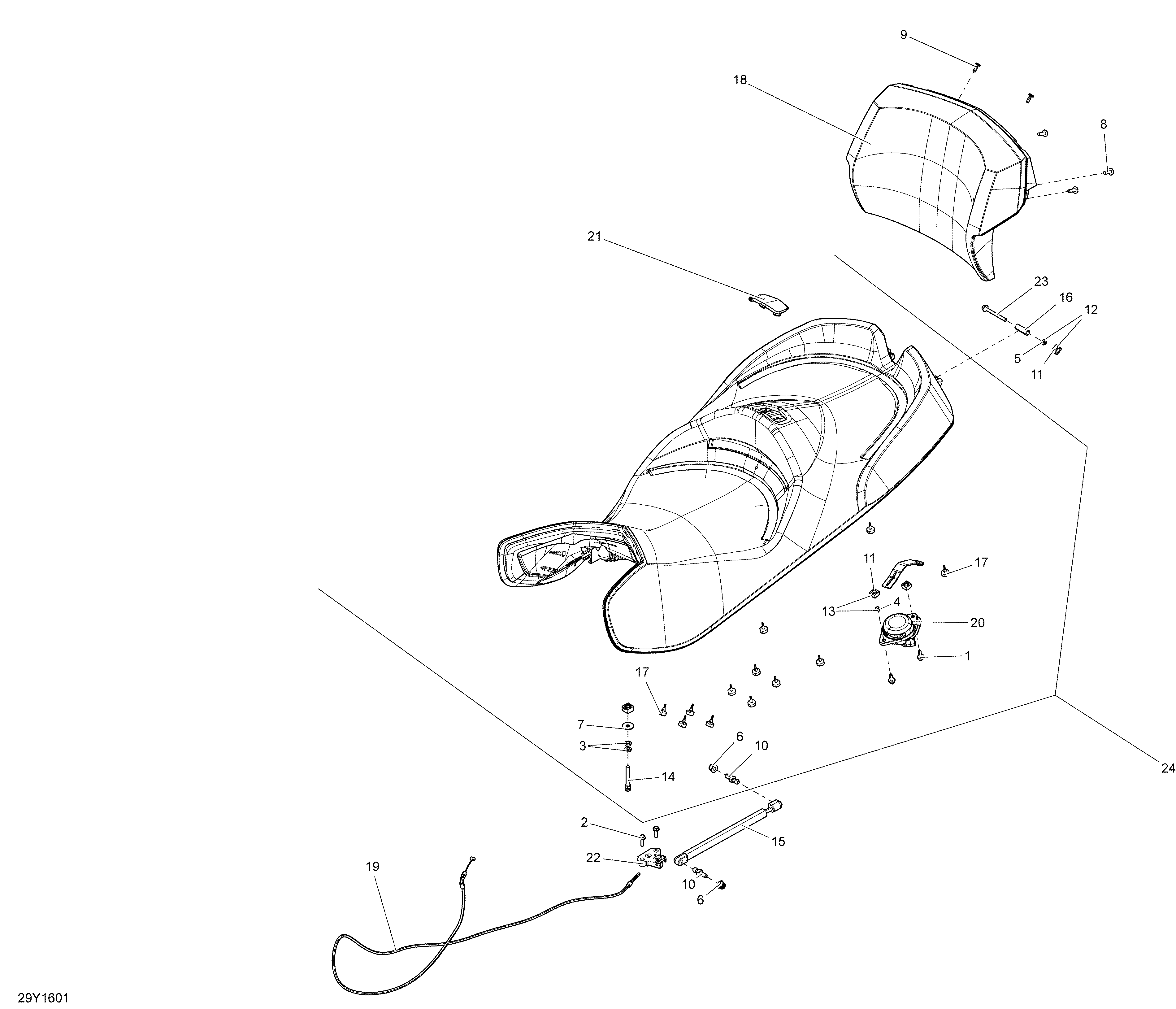

09- Seat для BRP RT - 2016
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7234082410 Flat Washer 8 mmFlat Washer 8 mm
-
8250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
10250300039 Ball Head StudBall Head Stud
-
11269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
12269500725 Nut Housing Ass'yNut Housing Ass'y
-
13269501166 Nut Housing Ass'yNut Housing Ass'y
-
14705002223 LugLug
-
15708000658 Gaz ShockGaz Shock
-
16708000664 SpacerSpacer
-
17708000759 Rubber StopperRubber Stopper
-
18708001936 Backrest Assy. Model with Package SPEBackrest Assy. Model with Package SPE
-
18708001329 Black Backrest Ass'y. Model with Package STDBlack Backrest Ass'y. Model with Package STD
-
18708001404 Black Backrest Ass'y. Model with Package LTDBlack Backrest Ass'y. Model with Package LTD
-
18708001398 Backrest Ass'y, Coal Black. Model with Package SBackrest Ass'y, Coal Black. Model with Package S
-
19708001743 Seat CableSeat Cable
-
20710001346 Passenger Detection SwitchPassenger Detection Switch
-
21708001633 Black CapBlack Cap
-
22705007379 LatchLatch
-
23250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
24708001934 Seat Ass'y. Model with Package SPESeat Ass'y. Model with Package SPE
-
24708002074 Seat Ass'y. Model with Package STD / LTDSeat Ass'y. Model with Package STD / LTD
-
24708002075 Seat Ass'y. Model with Package SSeat Ass'y. Model with Package S
