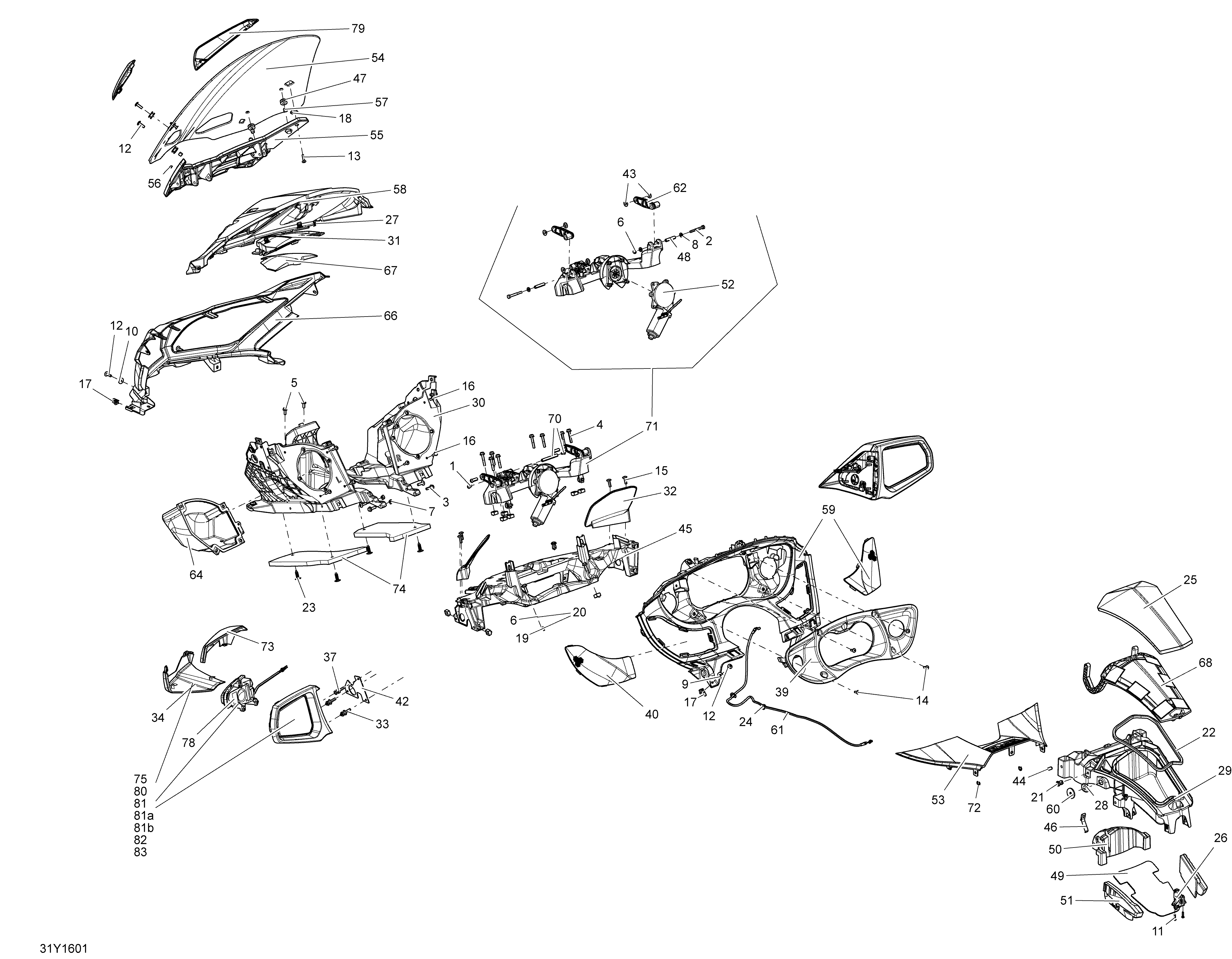

09- Body And Accessories - Console для BRP RT - 2016
-
№АртикулНазвание
-
1205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
2207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7232862412 Square Nut M6Square Nut M6
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234062410 Flat Washer 6 mmFlat Washer 6 mm
-
10234062670 Flat Washer, StainlessFlat Washer, Stainless
-
11250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
12250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250000455 Torx Screw M5 X 25Torx Screw M5 X 25
-
14250000487 Torx Screw, Nylon Patch, M5 X 14Torx Screw, Nylon Patch, M5 X 14
-
15250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
16250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
17250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
20269501166 Nut Housing Ass'yNut Housing Ass'y
-
21293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
22219800143 Neoprene Seal, MeterNeoprene Seal, Meter
-
23293730006 Black DartBlack Dart
-
24414115200 Tie-Rap 180 mm. Model AUS / BRETie-Rap 180 mm. Model AUS / BRE
-
24293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
25705006973 White Glove Box Cover. Color Pearl WhiteWhite Glove Box Cover. Color Pearl White
-
25705008722 Steel Black Met Glove Box Cover. Color Steel BlackSteel Black Met Glove Box Cover. Color Steel Black
-
25705008722 Steel Black Met Glove Box Cover. Color Monolith BlackSteel Black Met Glove Box Cover. Color Monolith Black
-
25705008723 Pearl Red Glove Box Cover. Color Intense RedPearl Red Glove Box Cover. Color Intense Red
-
25708400203 Orbital Blue Gloves Box Door. Color Orbital BlueOrbital Blue Gloves Box Door. Color Orbital Blue
-
26705007380 Push LatchPush Latch
-
27517302785 ClipClip
-
28705000321 Oval WasherOval Washer
-
29705002726 Glove BoxGlove Box
-
30705002743 Console SupportConsole Support
-
31705002746 Guide Chart SupportGuide Chart Support
-
32705002842 RH Upper Air DeflectorRH Upper Air Deflector
-
32705002841 LH Upper Air DeflectorLH Upper Air Deflector
-
33705004322 Spherical Head StudSpherical Head Stud
-
34705003159 RH Lower Mirror ShellRH Lower Mirror Shell
-
34705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
37705004323 Spherical Head StudSpherical Head Stud
-
39705003163 Dashboard BezelDashboard Bezel
-
40705003200 RH Speaker GrillRH Speaker Grill
-
40705003199 LH Speaker GrillLH Speaker Grill
-
42705003779 Console Support PlateConsole Support Plate
-
43705003267 SleeveSleeve
-
44705003295 Retainer PinRetainer Pin
-
45705003384 Console Cross-SupportConsole Cross-Support
-
46705003748 Glove Box SpringGlove Box Spring
-
47705003756 Windshield GrommetWindshield Grommet
-
48NLA Inner Sleeve. Order 219800321Inner Sleeve. Order 219800321
-
49219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
50219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
51219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
52278002579 Parking Barke/Windshield MotorParking Barke/Windshield Motor
-
53705004461 Center PanelCenter Panel
-
54219400415 WindshieldWindshield
-
54219400578 Low WindshieldLow Windshield
-
55708400152 SupportSupport
-
56705005666 Windshield Rubber BumperWindshield Rubber Bumper
-
57705005756 SleeveSleeve
-
58705006186 Upper ConsoleUpper Console
-
59705006655 Dashboard Ass'yDashboard Ass'y
-
60705007085 Rubber WasherRubber Washer
-
61705007381 Glove Box CableGlove Box Cable
-
62219800321 Rear Arm Ass'yRear Arm Ass'y
-
64705009164 Speaker LHSpeaker LH
-
66705009172 Vegas White P Front Console. Color Pearl WhiteVegas White P Front Console. Color Pearl White
-
66705009180 Steel Black Met Front Console. Color Steel BlackSteel Black Met Front Console. Color Steel Black
-
66705009180 Steel Black Met Front Console. Color Monolith BlackSteel Black Met Front Console. Color Monolith Black
-
66705009181 Red Pearl Front Console. Color Intense RedRed Pearl Front Console. Color Intense Red
-
66705009169 Orbital Blue Front Console. Color Orbital BlueOrbital Blue Front Console. Color Orbital Blue
-
67705009360 Guide ChartGuide Chart
-
68705009361 Door BoxDoor Box
-
70219800355 Retainer Pin KitRetainer Pin Kit
-
71705010136 Sup Motor AssySup Motor Assy
-
72705600272 CirclipCirclip
-
73705008715 Steel Black Met RH Upper Mirror Shell. Model with Package STDSteel Black Met RH Upper Mirror Shell. Model with Package STD
-
73705008714 Steel Black Met LH Upper Mirror Shell. Model with Package STDSteel Black Met LH Upper Mirror Shell. Model with Package STD
-
73705008716 Black Carbon Mirror Shell LH. Model with Package SPEBlack Carbon Mirror Shell LH. Model with Package SPE
-
73705008717 Black Carbon Mirror Shell RH. Model with Package SPEBlack Carbon Mirror Shell RH. Model with Package SPE
-
73705007440 Chrome Platine RH Upper Mirror Shell. Model with Package SChrome Platine RH Upper Mirror Shell. Model with Package S
-
73705007439 Chrome Platine LH Upper Mirror Shell. Model with Package SChrome Platine LH Upper Mirror Shell. Model with Package S
-
73705007400 Chrome RH Upper Mirror Shell. Model with Package LTDChrome RH Upper Mirror Shell. Model with Package LTD
-
73705007399 Chrome LH Upper Mirror Shell. Model with Package LTDChrome LH Upper Mirror Shell. Model with Package LTD
-
74707800341 RH Acoustic FoamRH Acoustic Foam
-
74707800349 LH Acoustic FoamLH Acoustic Foam
-
75708400147 Rh.MirrorRh.Mirror
-
75708400146 Lh.MirrorLh.Mirror
-
78710001511 RH Front Flasher UnitRH Front Flasher Unit
-
78710001510 LH Front Flasher UnitLH Front Flasher Unit
-
79705007411 Black Deep Windshield Cap LH. Model with Package STDBlack Deep Windshield Cap LH. Model with Package STD
-
79705007412 Black Deep Windshield Cap RH. Model with Package STDBlack Deep Windshield Cap RH. Model with Package STD
-
79708400164 Black Carbon Windshield Cap LH. Model with Package SPEBlack Carbon Windshield Cap LH. Model with Package SPE
-
79708400165 Black Carbon Windshield Cap RH. Model with Package SPEBlack Carbon Windshield Cap RH. Model with Package SPE
-
79219400191 Chrome Windshield Cap Kit. Model with Package LTDChrome Windshield Cap Kit. Model with Package LTD
-
79219400191 Chrome Windshield Cap Kit. Model with Package LTDChrome Windshield Cap Kit. Model with Package LTD
-
79705007438 Chrome Platine-Windshield Cap Kit. Model with Package SChrome Platine-Windshield Cap Kit. Model with Package S
-
79705007437 Chrome Platine Windshield Cap Kit. Model with Package SChrome Platine Windshield Cap Kit. Model with Package S
-
80219800118 ScrewScrew
-
81219800156 HousingHousing
-
81a705006661 SpringSpring
-
81b705006849 Spring HousingSpring Housing
-
82219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
83219800158 HousingHousing
