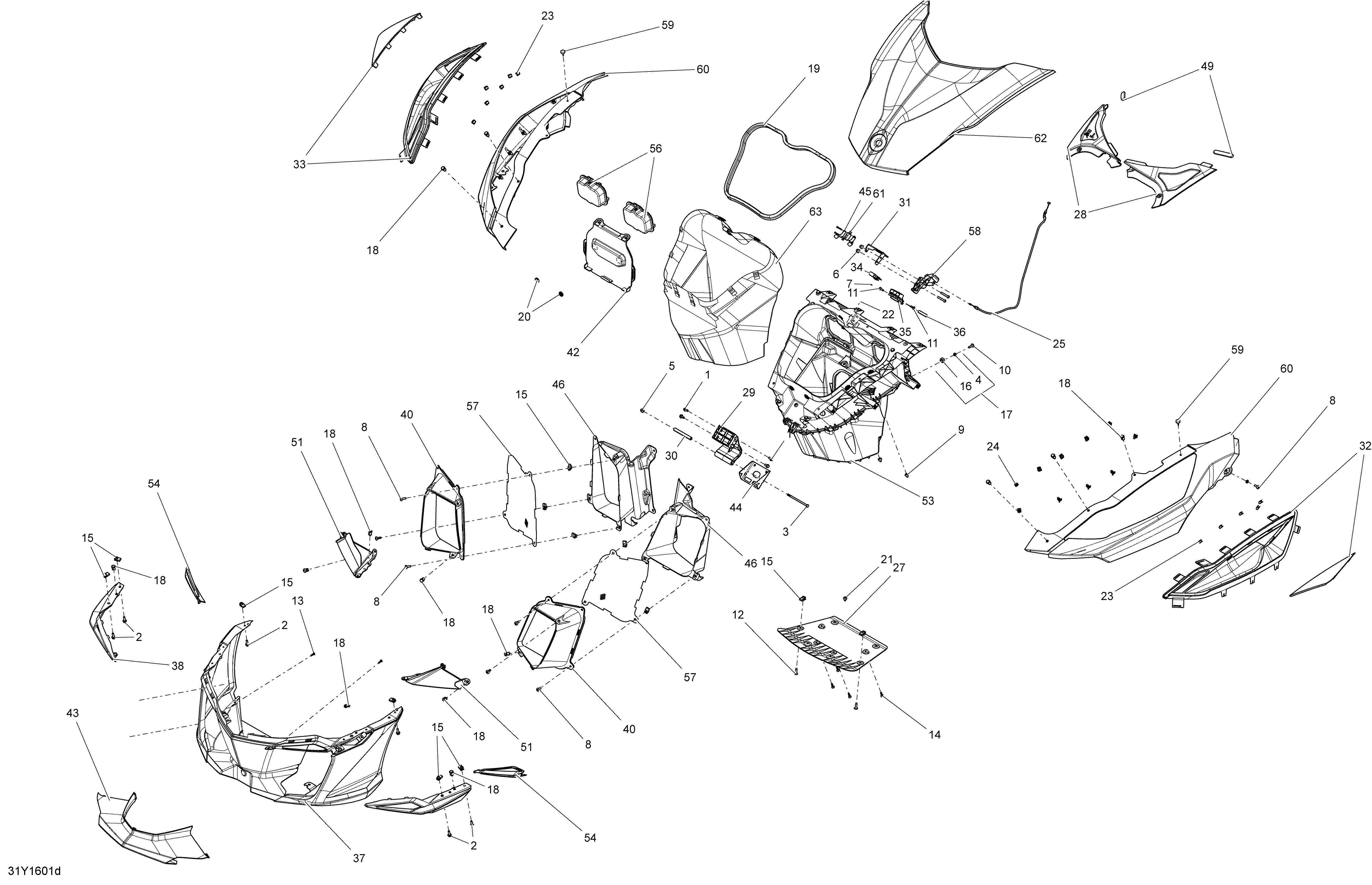

09- Body And Accessories - Front Storage для BRP RT - 2016

  • №
    Артикул
    Название
  • 1
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 2
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 3
    230061034 Hex. Screw M6 X 110
    Hex. Screw M6 X 110
  • 4
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 5
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 6
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 7
    234031600 Flat Washer 3 Mm, Stainless Steel
    Flat Washer 3 Mm, Stainless Steel
  • 8
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 9
    250000454 Torx Screw M6 X 12
    Torx Screw M6 X 12
  • 10
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 11
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 12
    250000728 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 13
    250000759 Torx-Truss Pt K40 X 16
    Torx-Truss Pt K40 X 16
  • 14
    250000760 Torx Screw Truss Head Pt.K50 X 20
    Torx Screw Truss Head Pt.K50 X 20
  • 15
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 16
    269500252 M6 Nut Housing Ass'Y
    M6 Nut Housing Ass'Y
  • 17
    269500725 Nut Housing Ass'Y
    Nut Housing Ass'Y
  • 18
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 19
    293250047 Neoprene Seal
    Neoprene Seal
  • 20
    293740028 Dual Lock Washer 3/4''
    Dual Lock Washer 3/4''
  • 21
    293830005 Rubber Bumper
    Rubber Bumper
  • 22
    390401400 Rivet
    Rivet
  • 23
    414479100 Clip
    Clip
  • 24
    517302785 Clip. Except Model with Package STD & C/U
    Clip. Except Model with Package STD & C/U
  • 24
    517302785 Clip. Model with Package STD & C/U
    Clip. Model with Package STD & C/U
  • 25
    517305460 Hood Cable
    Hood Cable
  • 27
    705002837 Skid Plate
    Skid Plate
  • 28
    705005903 Rh Service Center
    Rh Service Center
  • 28
    705002839 Lh Service Center
    Lh Service Center
  • 29
    705003248 Hood Arm
    Hood Arm
  • 30
    705003322 Spacer
    Spacer
  • 31
    705003691 Actuator Bracket
    Actuator Bracket
  • 32
    705003703 Lh Air Duct Ass'Y
    Lh Air Duct Ass'Y
  • 33
    705003706 Rh Air Duct Ass'Y
    Rh Air Duct Ass'Y
  • 34
    705004357 Holding Strap
    Holding Strap
  • 35
    705004468 Hood Guide
    Hood Guide
  • 36
    705004513 Bushing
    Bushing
  • 37
    705007555 Vegas White Pearl Bumper Cover. Model with Color Pearl White
    Vegas White Pearl Bumper Cover. Model with Color Pearl White
  • 37
    705008704 Steel Black Met Bumper Cover. Model with Color Steel Black
    Steel Black Met Bumper Cover. Model with Color Steel Black
  • 37
    705008705 Pearl Red Bumper Cover. Model with Color Intense Red
    Pearl Red Bumper Cover. Model with Color Intense Red
  • 37
    708200581 Black Monolith Bumper Cover. Model with Color Monolith Black
    Black Monolith Bumper Cover. Model with Color Monolith Black
  • 37
    708200596 Blue Bumper Cover. Model with Color Orbital Blue
    Blue Bumper Cover. Model with Color Orbital Blue
  • 38
    705004578 Rh Front Wing. Model with Package STD
    Rh Front Wing. Model with Package STD
  • 38
    705004577 Lh Front Wing. Model with Package STD
    Lh Front Wing. Model with Package STD
  • 38
    705007444 Chrome Platine Rh Front Wing. Model with Package S
    Chrome Platine Rh Front Wing. Model with Package S
  • 38
    705007443 Chrome Platine Lh Front Wing. Model with Package S
    Chrome Platine Lh Front Wing. Model with Package S
  • 38
    705007344 Chrome Lh Front Wing. Model with Package LTD
    Chrome Lh Front Wing. Model with Package LTD
  • 38
    705007345 Chrome Rh Front Wing. Model with Package LTD
    Chrome Rh Front Wing. Model with Package LTD
  • 38
    708200578 Lh Front Wing. Model with Package SPE
    Lh Front Wing. Model with Package SPE
  • 38
    708200579 Rh Front Wing. Model with Package SPE
    Rh Front Wing. Model with Package SPE
  • 40
    705004580 Rh Lower Air Duct
    Rh Lower Air Duct
  • 40
    705004579 Lh Lower Air Duct
    Lh Lower Air Duct
  • 42
    705004628 Battery Cover Ass'Y
    Battery Cover Ass'Y
  • 43
    708200582 Bumper Cap. Model with Package SPE
    Bumper Cap. Model with Package SPE
  • 43
    705007104 Black Bumper Moulding. Model with Package STD / S / LTD
    Black Bumper Moulding. Model with Package STD / S / LTD
  • 44
    705005434 Hood Pivot
    Hood Pivot
  • 45
    705005845 Switch Protector Plate
    Switch Protector Plate
  • 46
    705005860 Rh Rear Air Duct
    Rh Rear Air Duct
  • 46
    705005859 Lh Rear Air Duct
    Lh Rear Air Duct
  • 49
    705006824 Neoprene Pad
    Neoprene Pad
  • 51
    705007068 Rh Front Deflector
    Rh Front Deflector
  • 51
    705007067 Lh Front Deflector
    Lh Front Deflector
  • 53
    705007219 Storage Box Ass'Y
    Storage Box Ass'Y
  • 54
    705007306 Rh Front Wing Moulding
    Rh Front Wing Moulding
  • 54
    705007305 Lh Front Wing Moulding
    Lh Front Wing Moulding
  • 56
    705007483 Fuse Cover Ass'Y
    Fuse Cover Ass'Y
  • 57
    705008132 Radiator Grill
    Radiator Grill
  • 58
    705009310 Latch Ass'Y
    Latch Ass'Y
  • 59
    708000759 Rubber Stopper
    Rubber Stopper
  • 60
    708200637 White RH Front Panel. Model with Color Pearl White
    White RH Front Panel. Model with Color Pearl White
  • 60
    708200636 White LH Front Panel. Model with Color Pearl White
    White LH Front Panel. Model with Color Pearl White
  • 60
    708200647 Black Steel RH Front Panel. Model with Color Steel Black
    Black Steel RH Front Panel. Model with Color Steel Black
  • 60
    708200646 Black Steel LH Front Panel. Model with Color Steel Black
    Black Steel LH Front Panel. Model with Color Steel Black
  • 60
    708200653 Black Monolith RH Front Panel. Model with Color Monolith Black
    Black Monolith RH Front Panel. Model with Color Monolith Black
  • 60
    708200652 Black Monolith RH Front Panel. Model with Color Monolith Black
    Black Monolith RH Front Panel. Model with Color Monolith Black
  • 60
    708200655 Blue RH Front Panel. Model with Color Orbital Blue
    Blue RH Front Panel. Model with Color Orbital Blue
  • 60
    708200654 Blue LH Front Panel. Model with Color Orbital Blue
    Blue LH Front Panel. Model with Color Orbital Blue
  • 60
    708200649 Red RH Front Panel. Model with Color Intense Red
    Red RH Front Panel. Model with Color Intense Red
  • 60
    708200648 Red LH Front Panel. Model with Color Intense Red
    Red LH Front Panel. Model with Color Intense Red
  • 61
    710001861 Position Sensor
    Position Sensor
  • 62
    705006149 White Hood. Model with Color Pearl White
    White Hood. Model with Color Pearl White
  • 62
    219800221 Blue Hood. Model with Color Orbital Blue
    Blue Hood. Model with Color Orbital Blue
  • 62
    705008706 Steel Black Met Hood. Model with Color Steel Black
    Steel Black Met Hood. Model with Color Steel Black
  • 62
    705008706 Steel Black Met Hood. Model with Color Monolith Black
    Steel Black Met Hood. Model with Color Monolith Black
  • 62
    705008707 Pearl Red Hood. Model with Color Intense Red
    Pearl Red Hood. Model with Color Intense Red
  • 63
    219400368 Front Trunk Liner
    Front Trunk Liner
