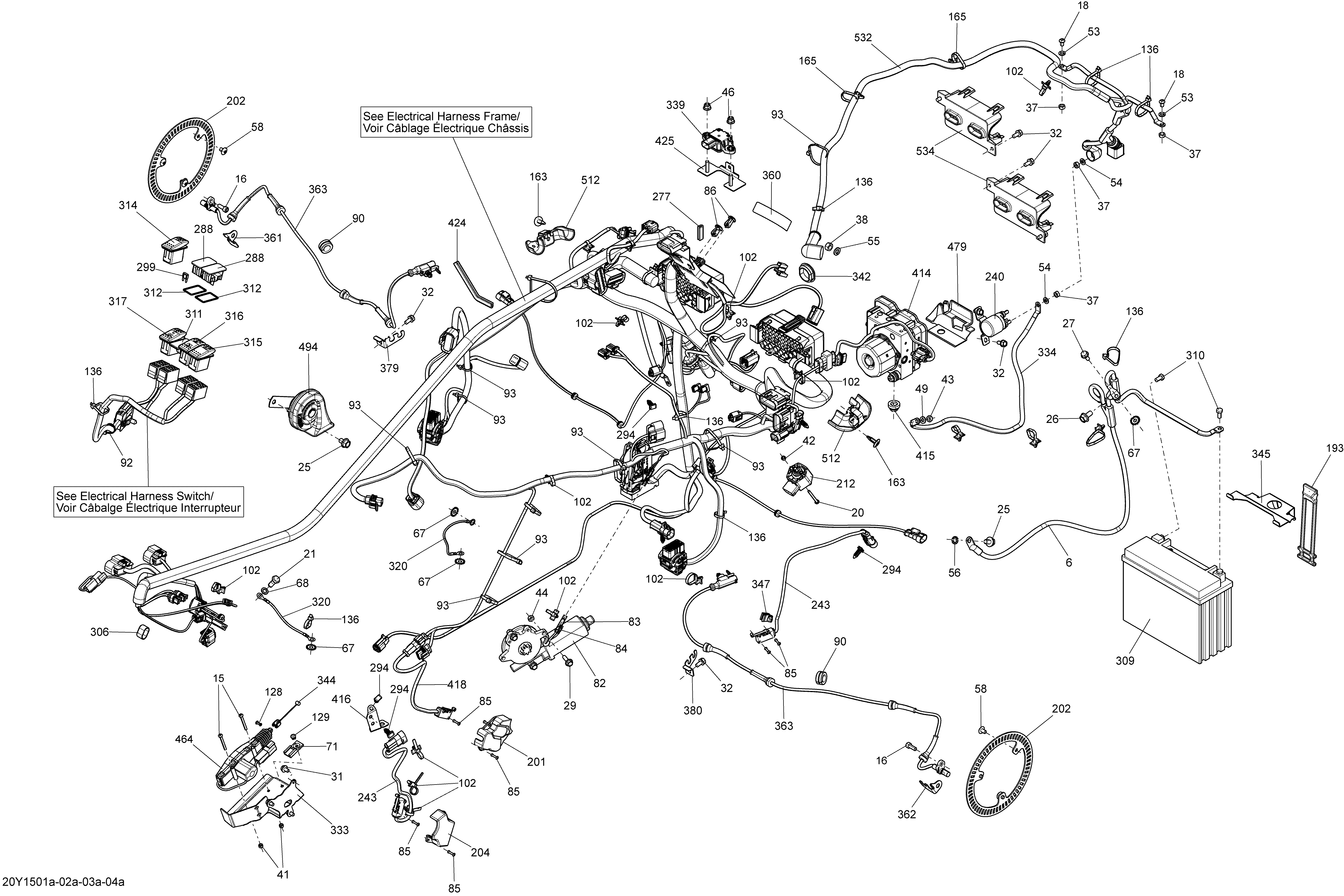

10- Electrical System _20Y1502a для BRP Spyder RTS SE6 - 2015
-
№АртикулНазвание
-
15205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
16205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
18205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
20207144044 Hex. Cap ScrewHex. Cap Screw
-
21207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
25207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
26207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
27207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
29207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
32210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
37232061600 Hex. Nut M6Hex. Nut M6
-
38232081414 Hex. Nut M8Hex. Nut M8
-
41232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
42232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
43232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
44232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
49234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
53234161601 Lock Washer Helical M6Lock Washer Helical M6
-
54234161601 Lock Washer Helical M6Lock Washer Helical M6
-
55234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
56234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
58250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
67250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
68250200111 WasherWasher
-
71270000141 ClipClip
-
82278003071 Control Gear Motor. Includes 82 to 84Control Gear Motor. Includes 82 to 84
-
83278000231 Insulation SheathInsulation Sheath
-
84278000230 Male TerminalMale Terminal
-
85293150150 Pop RivetPop Rivet
-
86293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
90293720095 GrommetGrommet
-
92293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
93293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
102293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
128390403000 Pop Rivet 5/32Pop Rivet 5/32
-
129390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
136414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
163414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
165515175220 Tie RapTie Rap
-
193520000528 LatchLatch
-
201705601344 DeflectorDeflector
-
202705601371 Front Sensor WheelFront Sensor Wheel
-
204705601402 LPS DeflectorLPS Deflector
-
212709401171 Posi-Steer SensorPosi-Steer Sensor
-
240710001364 Starter RelayStarter Relay
-
243710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
277271001530 TrimTrim
-
288710001999 Plug Carling. Model-Europe, Brazil, Australia, JapanPlug Carling. Model-Europe, Brazil, Australia, Japan
-
294710002033 HolderHolder
-
309219800305 Battery, 12 Volts, 21 Amperes. Model-Brazil, Includes 309 to 310Battery, 12 Volts, 21 Amperes. Model-Brazil, Includes 309 to 310
-
309410922962 Battery, 12 Volts, 21 Amperes. Model-North America, Europe, Australia, Japan, Includes 309 to 310Battery, 12 Volts, 21 Amperes. Model-North America, Europe, Australia, Japan, Includes 309 to 310
-
310250000282 Battery Bolt Kit. Model-BrazilBattery Bolt Kit. Model-Brazil
-
310250000282 Battery Bolt Kit. Model-North America, Europe, Australia, JapanBattery Bolt Kit. Model-North America, Europe, Australia, Japan
-
311710002260 PlugPlug
-
312710002288 Panel Seal. Model-Europe, Brazil, Australia, JapanPanel Seal. Model-Europe, Brazil, Australia, Japan
-
314710002350 Switch, Parking BrakeSwitch, Parking Brake
-
315710002351 Beam Switch. Model-North AmericaBeam Switch. Model-North America
-
316710002352 Suspension SwitchSuspension Switch
-
317710002354 Switch, Heat GripSwitch, Heat Grip
-
320710004368 Fuel Tank CableFuel Tank Cable
-
333710002523 Reverse Actuator SupportReverse Actuator Support
-
334710004373 Ignition Cable RT & CRIgnition Cable RT & CR
-
339710002677 Yaw Rate SensorYaw Rate Sensor
-
342710002858 Rubber PlugRubber Plug
-
344710002889 Reverse CableReverse Cable
-
345710002893 Battery HolderBattery Holder
-
347710002896 Tie-Rap ClipTie-Rap Clip
-
360710003077 R/L Label DecalR/L Label Decal
-
361710003089 Speed Sensor HolderSpeed Sensor Holder
-
362710003090 Speed Sensor HolderSpeed Sensor Holder
-
363710003091 Speed SensorSpeed Sensor
-
379710003156 Speed Sensor HolderSpeed Sensor Holder
-
380710003157 Speed Sensor HolderSpeed Sensor Holder
-
414219800333 VCM Module. Includes 414 to 415VCM Module. Includes 414 to 415
-
415710003279 Damper ShockDamper Shock
-
416710003305 Connectors BracketConnectors Bracket
-
418710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
424271001530 TrimTrim
-
425710003494 YRS HolderYRS Holder
-
436710004369 Negative Main CableNegative Main Cable
-
464710003776 ActuatorActuator
-
479710003996 VCM Harness ProtectorVCM Harness Protector
-
494710004229 HornHorn
-
512710004307 Wire SupportWire Support
-
532710004371 Positive Main CablePositive Main Cable
-
534710004472 Fuse Holder SupportFuse Holder Support
