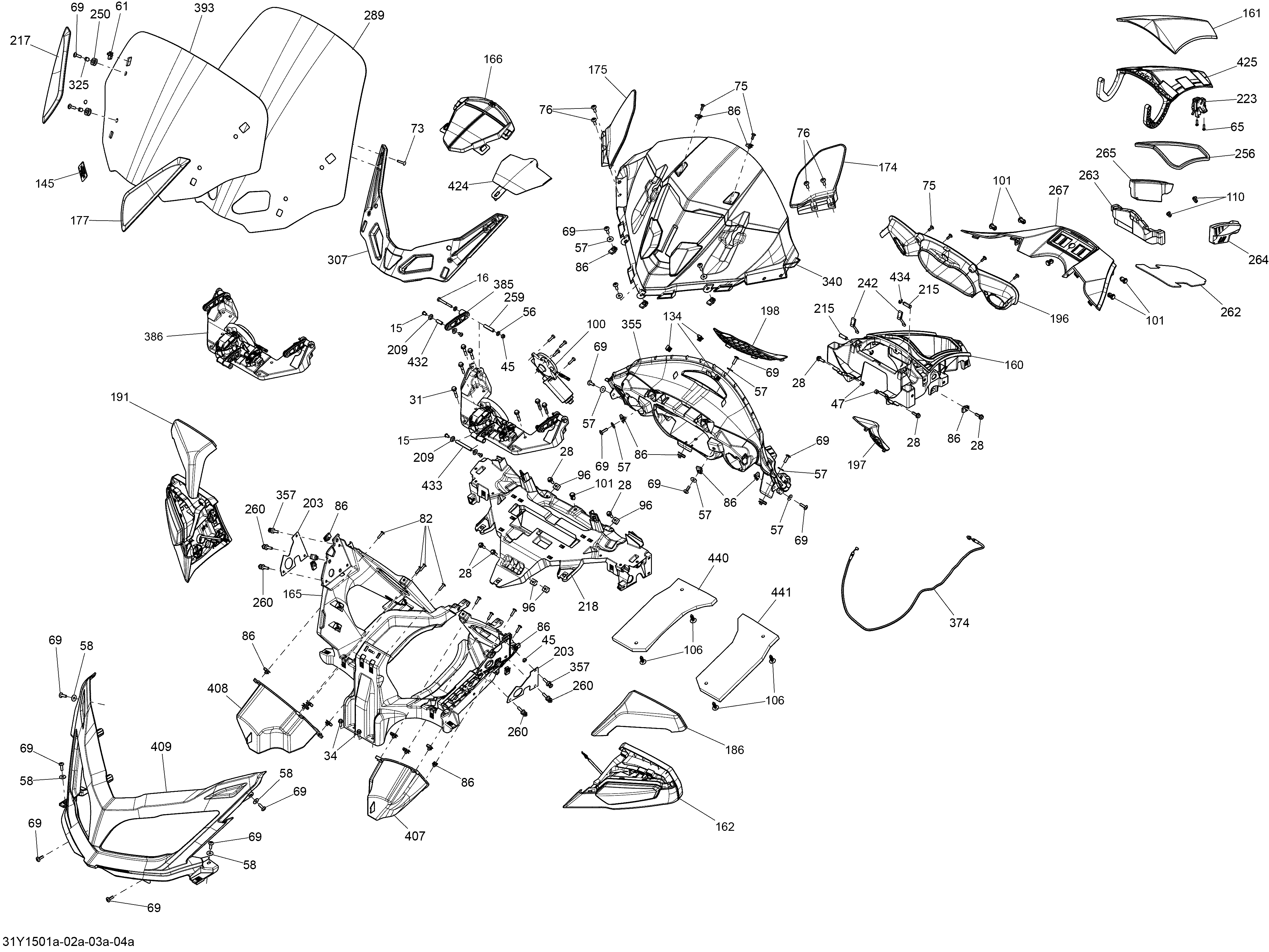

09- Body And Accessories Windshield_31Y1502a для BRP Spyder RTS SE6 - 2015

  • №
    Артикул
    Название
  • 15
    205961060 Socket Head Screw M6 X 10, Scotch Grip
    Socket Head Screw M6 X 10, Scotch Grip
  • 16
    207065060 Hex. Screw M6 X 50
    Hex. Screw M6 X 50
  • 28
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 31
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 34
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 45
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 47
    232862412 Square Nut M6
    Square Nut M6
  • 56
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 57
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 58
    234062670 Flat Washer
    Flat Washer
  • 61
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 65
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 69
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 73
    250000455 Torx Screw M5 X 25
    Torx Screw M5 X 25
  • 75
    250000487 Torx Screw, Nylon Patch, M5 X 14
    Torx Screw, Nylon Patch, M5 X 14
  • 76
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 82
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 86
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 96
    269501166 Nut Housing Ass'y
    Nut Housing Ass'y
  • 100
    278002579 Parking Barke/Windshield Motor
    Parking Barke/Windshield Motor
  • 101
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 110
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 134
    517302785 Clip
    Clip
  • 160
    705002726 Glove Box
    Glove Box
  • 161
    705006360 Yellow Glove Box Cover. Model-Circuit Yellow Met
    Yellow Glove Box Cover. Model-Circuit Yellow Met
  • 161
    705008723 Pearl Red Glove Box Cover. Model-RT S Intense Red Pearl
    Pearl Red Glove Box Cover. Model-RT S Intense Red Pearl
  • 161
    705008722 Steel Black Met Glove Box Cover. Model-Steel Black Met
    Steel Black Met Glove Box Cover. Model-Steel Black Met
  • 161
    705006973 White Glove Box Cover. Model-Vegas White Pearl
    White Glove Box Cover. Model-Vegas White Pearl
  • 162
    705004687 LH Mirror Ass'y
    LH Mirror Ass'y
  • 163
    705004688 RH Mirror Ass'y
    RH Mirror Ass'y
  • 165
    705002743 Console Support
    Console Support
  • 166
    705002746 Guide Chart Support
    Guide Chart Support
  • 174
    705002841 LH Upper Air Deflector
    LH Upper Air Deflector
  • 175
    705002842 RH Upper Air Deflector
    RH Upper Air Deflector
  • 177
    705007437 Chrome Platine Windshield Cap Kit
    Chrome Platine Windshield Cap Kit
  • 186
    705007439 Chrome Platine LH Upper Mirror Shell
    Chrome Platine LH Upper Mirror Shell
  • 191
    705007440 Chrome Platine RH Upper Mirror Shell
    Chrome Platine RH Upper Mirror Shell
  • 196
    705003163 Dashboard Bezel
    Dashboard Bezel
  • 197
    705003199 LH Speaker Grill
    LH Speaker Grill
  • 198
    705003200 RH Speaker Grill
    RH Speaker Grill
  • 203
    705003779 Console Support Plate
    Console Support Plate
  • 209
    705003267 Sleeve
    Sleeve
  • 215
    705003295 Retainer Pin
    Retainer Pin
  • 217
    705007438 Chrome Platine-Windshield Cap Kit
    Chrome Platine-Windshield Cap Kit
  • 218
    705003384 Console Cross-Support
    Console Cross-Support
  • 223
    705007380 Push Latch
    Push Latch
  • 242
    705003748 Glove Box Spring
    Glove Box Spring
  • 250
    705003756 Windshield Grommet
    Windshield Grommet
  • 256
    219800143 Neoprene Seal, Meter
    Neoprene Seal, Meter
  • 259
    NLA Inner Sleeve. Order 219800321
    Inner Sleeve. Order 219800321
  • 260
    705004322 Spherical Head Stud
    Spherical Head Stud
  • 262
    705004424 Heat Shield
    Heat Shield
  • 263
    219800172 Outer Front Insulation Foam
    Outer Front Insulation Foam
  • 264
    219800172 Outer Front Insulation Foam
    Outer Front Insulation Foam
  • 265
    219800172 Outer Front Insulation Foam
    Outer Front Insulation Foam
  • 267
    705004461 Center Panel
    Center Panel
  • 289
    219400415 Windshield
    Windshield
  • 307
    705005405 Windshield Support
    Windshield Support
  • 325
    705005756 Sleeve
    Sleeve
  • 340
    705006186 Upper Console
    Upper Console
  • 355
    705006655 Dashboard Ass'y
    Dashboard Ass'y
  • 357
    705004323 Spherical Head Stud
    Spherical Head Stud
  • 374
    705007381 Glove Box Cable
    Glove Box Cable
  • 385
    219800321 Rear Arm Ass'y
    Rear Arm Ass'y
  • 386
    705008115 Engine Support Ass'y
    Engine Support Ass'y
  • 407
    705009164 Speaker LH
    Speaker LH
  • 408
    705009165 Speaker RH
    Speaker RH
  • 409
    705009175 Circ Yellow Front Console. Model-Circuit Yellow Met
    Circ Yellow Front Console. Model-Circuit Yellow Met
  • 409
    705009181 Red Pearl Front Console. Model-RT S Intense Red Pearl
    Red Pearl Front Console. Model-RT S Intense Red Pearl
  • 409
    705009180 Steel Black Met Front Console. Model-Steel Black Met
    Steel Black Met Front Console. Model-Steel Black Met
  • 409
    705009172 Vegas White P Front Console. Model-Vegas White Pearl
    Vegas White P Front Console. Model-Vegas White Pearl
  • 424
    705009360 Guide Chart
    Guide Chart
  • 425
    705009361 Door Box
    Door Box
  • 432
    705009566 Axle Ass'y
    Axle Ass'y
  • 433
    705009567 Axle Ass'y
    Axle Ass'y
  • 434
    705600272 Circlip
    Circlip
  • 440
    707800341 RH Acoustic Foam
    RH Acoustic Foam
  • 441
    707800349 LH Acoustic Foam
    LH Acoustic Foam
