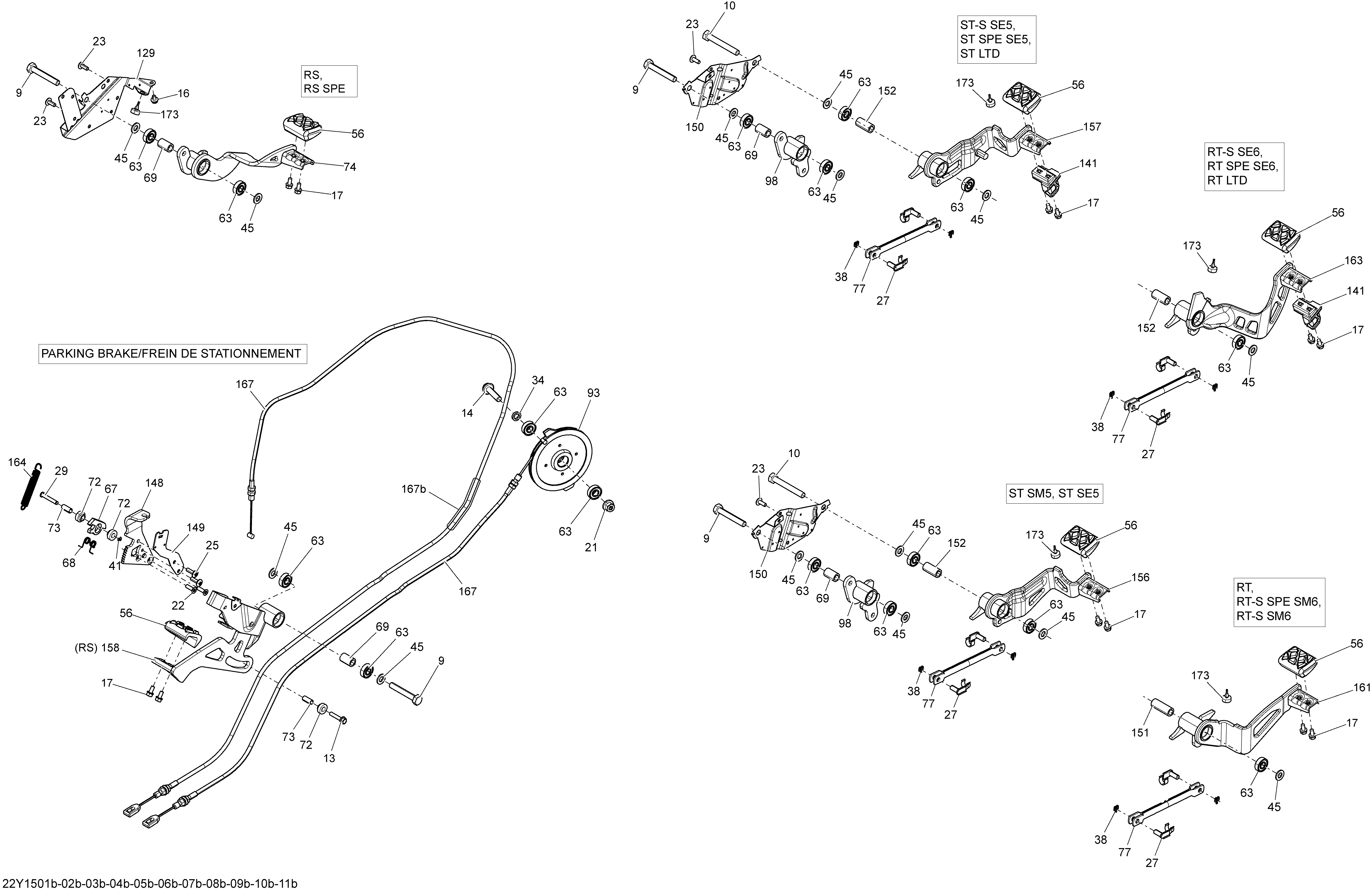

06- Hydraulic Brake Pedal_22Y1502b для BRP Spyder RTS SE6 - 2015
-
№АртикулНазвание
-
9207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
10207207544 Hexagonal Screrw S.GRIP M10 X 75. Package-S SE6. Ensemble S SE6Hexagonal Screrw S.GRIP M10 X 75. Package-S SE6. Ensemble S SE6
-
14207604054 Hex. Flanged Screw M10 X 40Hex. Flanged Screw M10 X 40
-
17210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
21233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
23250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
27250400062 PinPin
-
34293900087 BushingBushing
-
38371800700 Cotter PinCotter Pin
-
45503183800 WasherWasher
-
56705004933 Rubber PadRubber Pad
-
63705600458 BearingBearing
-
69705600541 BushingBushing
-
77705600959 Connecting RodConnecting Rod
-
93705600768 Front Pulley CableFront Pulley Cable
-
98705600855 Rocker ArmRocker Arm
-
129705601346 Tab LockTab Lock
-
141705601217 Pedal Guard. Package-S SE6. Ensemble S SE6Pedal Guard. Package-S SE6. Ensemble S SE6
-
150705601346 Tab LockTab Lock
-
151705601275 Bushing. Package-S SM6. Ensemble S SM6Bushing. Package-S SM6. Ensemble S SM6
-
152705601276 Bushing. Package-S SE6. Ensemble S SE6Bushing. Package-S SE6. Ensemble S SE6
-
161705601312 Brake Pedal, Painted. Package-STD. Ensemble STDBrake Pedal, Painted. Package-STD. Ensemble STD
-
161705601315 Brake Pedal, Painted. Package-S SM6. Ensemble S SM6Brake Pedal, Painted. Package-S SM6. Ensemble S SM6
-
167707001058 Parking Brake CableParking Brake Cable
-
173708000759 Rubber StopperRubber Stopper
