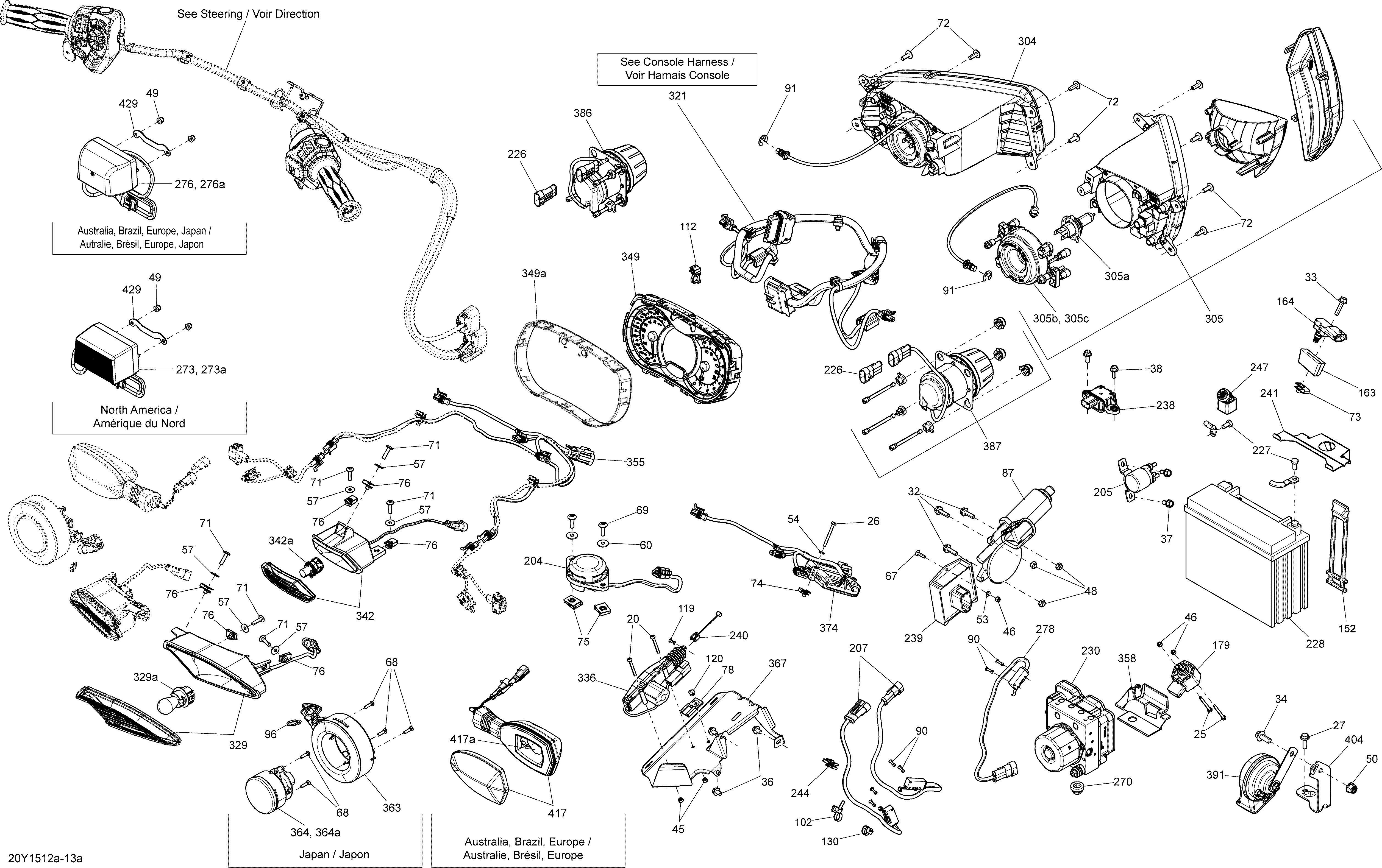

10- Electrical System Accessories_20Y1512a для BRP Spyder F3 SM6 - 2015
-
№АртикулНазвание
-
20205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
25207144044 Hex. Cap ScrewHex. Cap Screw
-
26207144060 Hex. Screw M4 X 40Hex. Screw M4 X 40
-
27207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
32207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
33207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
34207682034 Hex. Flanged ScrewHex. Flanged Screw
-
36210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
37210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
38210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
45232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
46232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
48232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
49233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
50233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
53234041480 Flat Washer 4 mmFlat Washer 4 mm
-
54234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
57234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
60234062670 Flat Washer, StainlessFlat Washer, Stainless
-
67250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
68250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
69250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
71250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
72250000721 Torx ScrewTorx Screw
-
73250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
74250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
75250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
76250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
78270000141 ClipClip
-
87278003071 Control Gear MotorControl Gear Motor
-
90293150150 Pop RivetPop Rivet
-
91293370013 E-CirclipE-Circlip
-
96293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
102293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
112293750063 Clip Tie-RapClip Tie-Rap
-
119390403000 Pop Rivet 5/32Pop Rivet 5/32
-
120390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
152520000528 LatchLatch
-
163707000586 FilterFilter
-
164707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
179709401171 Posi-Steer SensorPosi-Steer Sensor
-
204710001346 Passenger Detection SwitchPassenger Detection Switch
-
205710001364 Starter RelayStarter Relay
-
207710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
226710002168 Packard Connector With PlugPackard Connector With Plug
-
227250000282 Battery Bolt KitBattery Bolt Kit
-
228219800305 Battery, 12 Volts, 21 Amperes. BrazilBattery, 12 Volts, 21 Amperes. Brazil
-
228410922962 Battery, 12 Volts, 21 Amperes. Except BrazilBattery, 12 Volts, 21 Amperes. Except Brazil
-
230219800333 VCM ModuleVCM Module
-
238710002677 Yaw Rate SensorYaw Rate Sensor
-
239710004214 PBM ModulePBM Module
-
240710002889 Reverse CableReverse Cable
-
241710002893 Battery HolderBattery Holder
-
244710002899 Clip Tie-RapClip Tie-Rap
-
247710002945 Battery GuardBattery Guard
-
270710003279 Damper ShockDamper Shock
-
273710003348 License Plate Light. North AmericaLicense Plate Light. North America
-
273a415129261 Bulb 12V 10WBulb 12V 10W
-
276710003349 License Plate Light. Except North AMericaLicense Plate Light. Except North AMerica
-
276a415129261 Bulb 12V 10WBulb 12V 10W
-
278710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
304710003685 LH HeadlampLH Headlamp
-
305710003686 RH HeadlampRH Headlamp
-
305a515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
305b219800280 Rubber Cap ProtectorRubber Cap Protector
-
305c219800281 SpringSpring
-
321710003704 Console Harness. North AmericaConsole Harness. North America
-
321710004987 Console Harness. Except North AmericaConsole Harness. Except North America
-
329710003707 LH Rear Flasher. Except JapanLH Rear Flasher. Except Japan
-
329710004396 LH Rear Light. JapanLH Rear Light. Japan
-
329710003708 RH Rear Flasher. Except JapanRH Rear Flasher. Except Japan
-
329710004397 RH Rear Light. JapanRH Rear Light. Japan
-
329a219800304 Flasher Bulb. Except JapanFlasher Bulb. Except Japan
-
336710003776 ActuatorActuator
-
342710003879 Reverse LightReverse Light
-
342a219800322 Bulb 12V 10WBulb 12V 10W
-
349710003951 SpeedometerSpeedometer
-
349a415129349 LensLens
-
355710003984 Cargo Harness. North AmericaCargo Harness. North America
-
355710003985 Cargo Harness. Europe, Australia, BrazilCargo Harness. Europe, Australia, Brazil
-
355710004909 Cargo Harness. JapanCargo Harness. Japan
-
355a710005121 Adaptor. JapanAdaptor. Japan
-
358710003996 VCM Harness ProtectorVCM Harness Protector
-
363710004056 Rear LightRear Light
-
364710004057 Rear Flasher. JapanRear Flasher. Japan
-
364a715900043 Bulb 12V 21WBulb 12V 21W
-
367710004093 Reverse Actuator SupportReverse Actuator Support
-
374710004105 Flasher Module. North AmericaFlasher Module. North America
-
386710004150 LH Low Beam. Europe, BrazilLH Low Beam. Europe, Brazil
-
386710004152 LH Low Beam. Australia, JapanLH Low Beam. Australia, Japan
-
387710004151 RH Low Beam. Europe, BrazilRH Low Beam. Europe, Brazil
-
387710004153 RH Low Beam. Australia, JapanRH Low Beam. Australia, Japan
-
391710004229 HornHorn
-
404710004412 Black Horn SupportBlack Horn Support
-
417710004400 Rear Flasher. Europe, Australia, BrazilRear Flasher. Europe, Australia, Brazil
-
417a715900043 Bulb 12V 21WBulb 12V 21W
-
429710004815 PlatePlate
