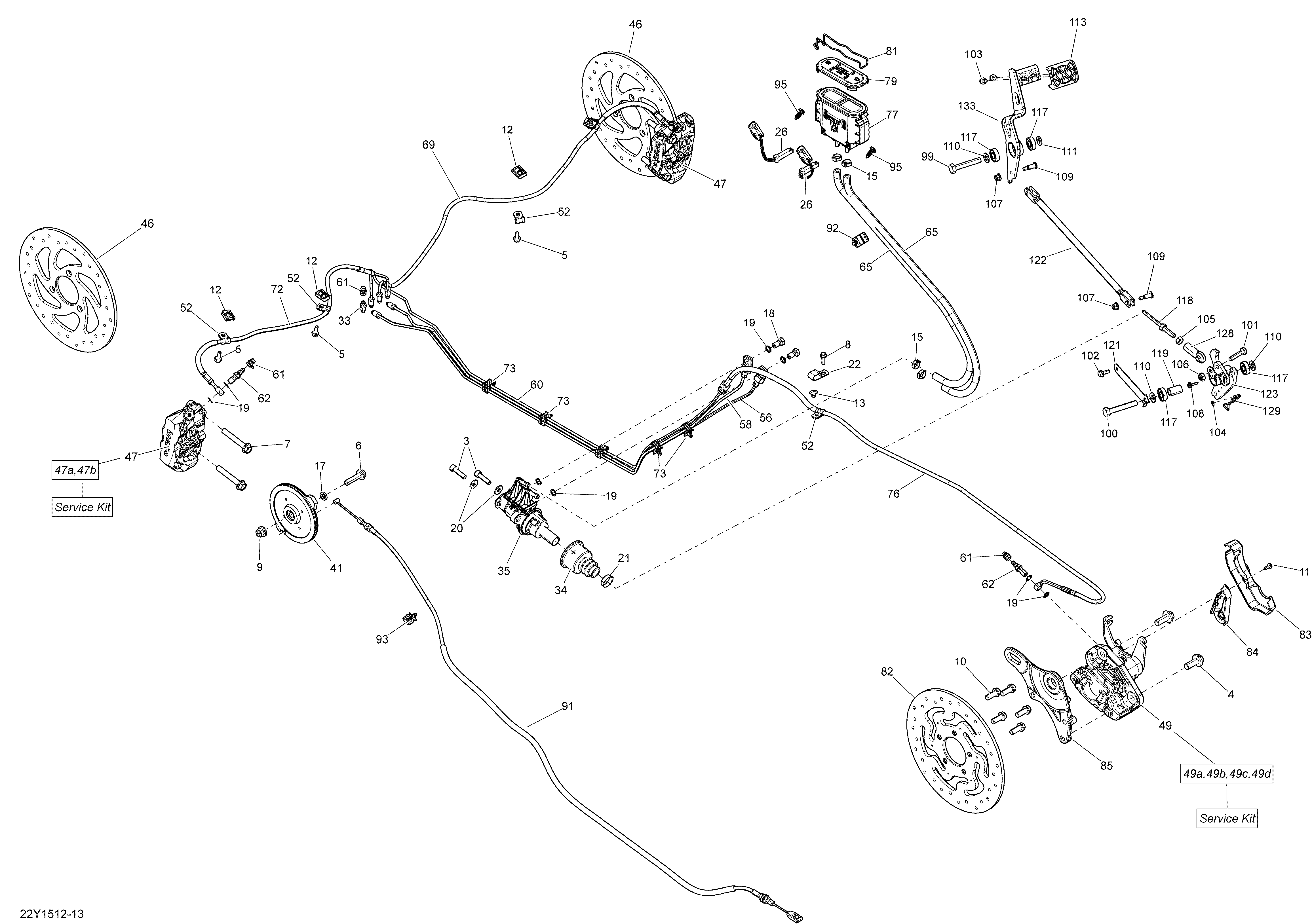

06- Hydraulic Brake _22Y1512 для BRP Spyder F3 SM6 - 2015
-
№АртикулНазвание
-
3205583087 Allen Screw M8 X 30Allen Screw M8 X 30
-
4207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
5207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6207604054 Hex. Flanged Screw M10 X 40Hex. Flanged Screw M10 X 40
-
7207506556 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
8210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
9233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
10250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
11250000821 Torx Screw 24 X 0.5Torx Screw 24 X 0.5
-
12250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
15293650047 Crimp ClampCrimp Clamp
-
17293900087 BushingBushing
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20506151245 WasherWasher
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22515175507 ClipClip
-
26705601073 Oil Level SensorOil Level Sensor
-
33705600502 Bleeder ScrewBleeder Screw
-
34705600716 BellowBellow
-
35705600722 Tandem Cylinder MasterTandem Cylinder Master
-
41705600768 Front Pulley CableFront Pulley Cable
-
46705600955 Front Brake DiskFront Brake Disk
-
47705600987 LH Front CaliperLH Front Caliper
-
47705600988 RH Front CaliperRH Front Caliper
-
47a219800237 Brake Pad KitBrake Pad Kit
-
47b219800238 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
49705600989 Rear CaliperRear Caliper
-
49a219800239 Brake Pad KitBrake Pad Kit
-
49b219800240 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
49c219800241 Rear Cable Support KitRear Cable Support Kit
-
49d219800242 Rear Dust CoverRear Dust Cover
-
52715900250 Hose ClipHose Clip
-
56705601157 Tandem Rigid TubeTandem Rigid Tube
-
58705601158 Tandem Rigid TubeTandem Rigid Tube
-
60705601159 Rear Brake Rigid TubeRear Brake Rigid Tube
-
61705601190 Bleeder Bolt CapBleeder Bolt Cap
-
62705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
65705601236 Formed HoseFormed Hose
-
69705601254 RH Front HoseRH Front Hose
-
72705601471 LH Front HoseLH Front Hose
-
73705601256 Rigid Tube SupportRigid Tube Support
-
76705601268 Brake HoseBrake Hose
-
77705601235 Oil TankOil Tank
-
79219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
81705601294 Spindle LockSpindle Lock
-
82705601300 Rear Brake DiskRear Brake Disk
-
83705601400 Caliper CapCaliper Cap
-
84705601406 Caliper Cap. (Small)Caliper Cap. (Small)
-
85705601450 Rear Brake Caliper SupportRear Brake Caliper Support
-
91707001375 Parking Brake CableParking Brake Cable
-
92709000571 Hose SupportHose Support
-
93709000633 Harness SupportHarness Support
-
95710002033 HolderHolder
-
99207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
100207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
101207283544 Hexagonal Head Cap Screw M8 X 35Hexagonal Head Cap Screw M8 X 35
-
102250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
103210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
104250100178 Push NutPush Nut
-
105232081414 Hex. Nut M8Hex. Nut M8
-
106232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
107233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
108250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
109250000714 Flanged Screw M6 X 26Flanged Screw M6 X 26
-
110503183800 WasherWasher
-
111503192496 WasherWasher
-
113705004933 Rubber PadRubber Pad
-
117705600458 BearingBearing
-
118705600468 Piston RodPiston Rod
-
119705600541 BushingBushing
-
121705601229 Locking TabLocking Tab
-
122219400561 Brake Linkage Kit (313.7 mm). (Position 1)Brake Linkage Kit (313.7 mm). (Position 1)
-
122219400563 Brake Linkage Kit (359.3 mm). (Position 2)Brake Linkage Kit (359.3 mm). (Position 2)
-
122219400628 Brake Linkage Kit (410.7 mm). (Position 3) Factory InstalledBrake Linkage Kit (410.7 mm). (Position 3) Factory Installed
-
122219400566 Brake Linkage Kit (458.3 mm). (Position 4)Brake Linkage Kit (458.3 mm). (Position 4)
-
122219400571 Brake Linkage Kit (505.1 mm). (Position 5)Brake Linkage Kit (505.1 mm). (Position 5)
-
123705601308 Master Cylinder RockerMaster Cylinder Rocker
-
128705601340 Master cylinder Tie-Rod EndMaster cylinder Tie-Rod End
-
129705601350 Quick-Attach BracketQuick-Attach Bracket
-
133705601416 Brake PedalBrake Pedal
