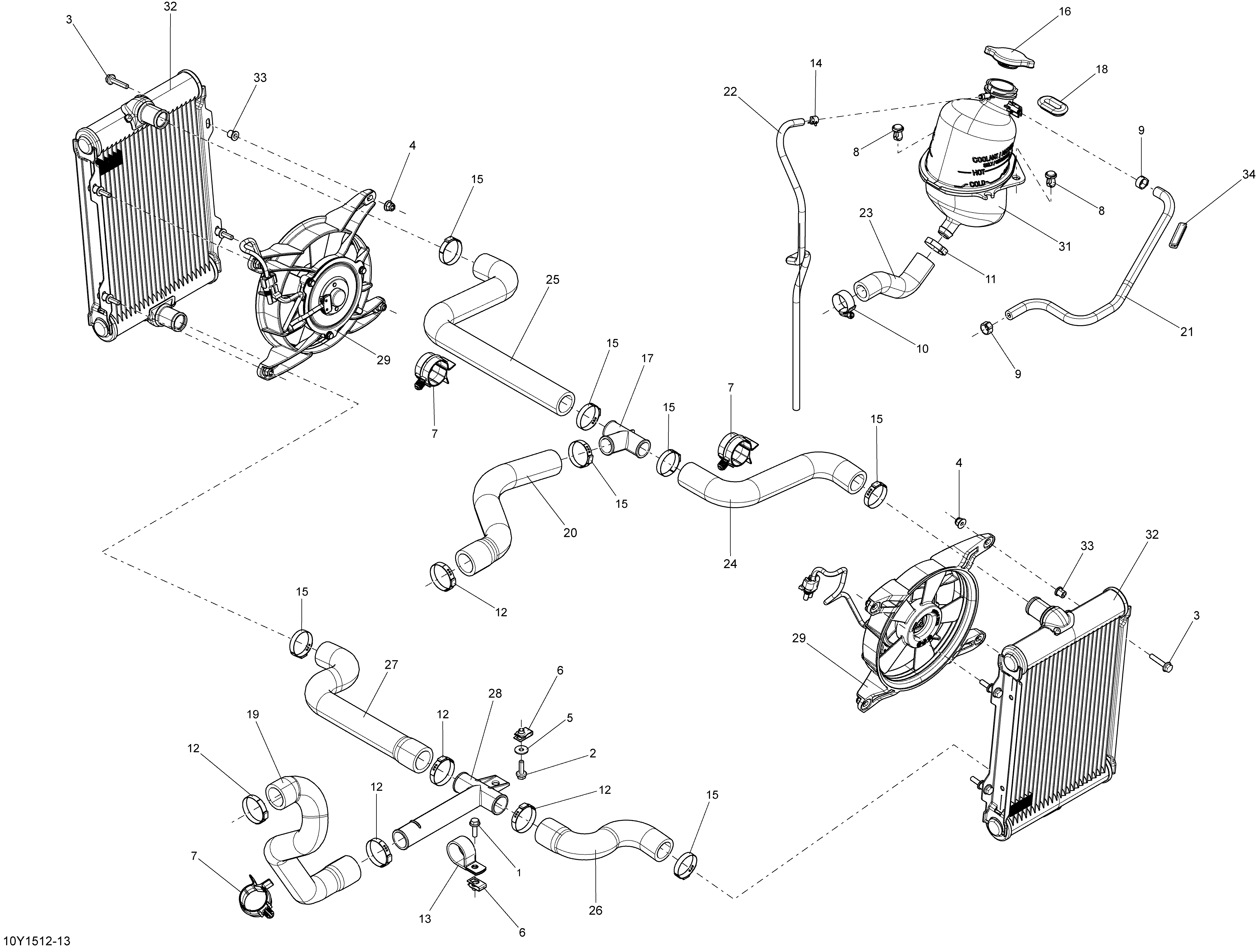

01- Cooling System _10Y1512 для BRP Spyder F3 SM6 - 2015
-
№АртикулНазвание
-
1207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5234062410 Flat Washer 6 mmFlat Washer 6 mm
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7275500590 RetainerRetainer
-
8293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9293650025 Oetiker Gear ClampOetiker Gear Clamp
-
10293650051 Tridon Gear ClampTridon Gear Clamp
-
11293650165 Oetiker Gear ClampOetiker Gear Clamp
-
12293650199 Oetiker Gear ClampOetiker Gear Clamp
-
13293750035 Open ClampOpen Clamp
-
14414554800 Spring ClampSpring Clamp
-
15509000045 Oetiker Gear ClampOetiker Gear Clamp
-
16509000187 Pressure CapPressure Cap
-
17509000219 T-FittingT-Fitting
-
18705003668 Oblong GrommetOblong Grommet
-
19709200321 Formed HoseFormed Hose
-
20709200322 Formed HoseFormed Hose
-
21709200324 Formed HoseFormed Hose
-
22415080200 Hose, PolyurethaneHose, Polyurethane
-
23709200499 Formed HoseFormed Hose
-
24709200510 Formed HoseFormed Hose
-
25709200511 Formed HoseFormed Hose
-
26709200512 Formed HoseFormed Hose
-
27709200518 Formed HoseFormed Hose
-
28709200522 ManifoldManifold
-
29709200523 FanFan
-
31709200528 Coolant TankCoolant Tank
-
32709200529 RadiatorRadiator
-
33709200553 SleeveSleeve
-
34271001530 TrimTrim
