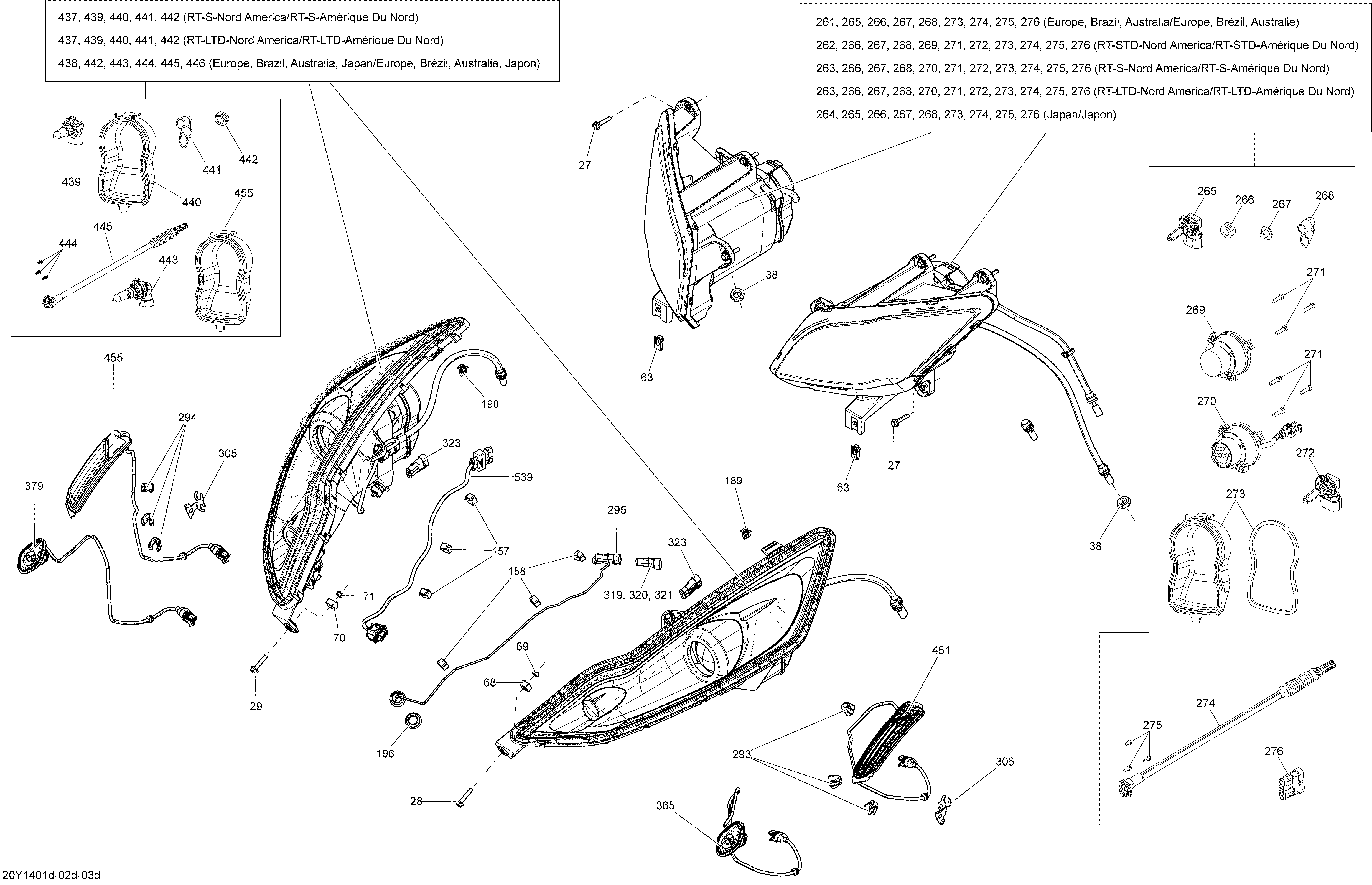

10- Electrical System Beam_20Y1402d для BRP Spyder RTS SM6 - 2014
-
№АртикулНазвание
-
27207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
28207663034 Hex. Flanged Screw M6 X 30. Europe, Brazil, Australia, JapanHex. Flanged Screw M6 X 30. Europe, Brazil, Australia, Japan
-
28207663034 Hex. Flanged Screw M6 X 30. North AmericaHex. Flanged Screw M6 X 30. North America
-
29207663034 Hex. Flanged Screw M6 X 30. Europe, Brazil, Australia, JapanHex. Flanged Screw M6 X 30. Europe, Brazil, Australia, Japan
-
29207663034 Hex. Flanged Screw M6 X 30. North AmericaHex. Flanged Screw M6 X 30. North America
-
38232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
63250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
68269500725 Nut Housing Ass'y. Includes 68 to 69, Europe, Brazil, Australia, JapanNut Housing Ass'y. Includes 68 to 69, Europe, Brazil, Australia, Japan
-
68269500725 Nut Housing Ass'y. Includes 68 to 69, North AmericaNut Housing Ass'y. Includes 68 to 69, North America
-
69232561600 Hex. Elastic Stop Nut M6. Europe, Brazil, Australia, JapanHex. Elastic Stop Nut M6. Europe, Brazil, Australia, Japan
-
69232561600 Hex. Elastic Stop Nut M6. North AmericaHex. Elastic Stop Nut M6. North America
-
70269500725 Nut Housing Ass'y. Includes 70 to 71, Europe, Brazil, Australia, JapanNut Housing Ass'y. Includes 70 to 71, Europe, Brazil, Australia, Japan
-
70269500725 Nut Housing Ass'y. Includes 70 to 71, North AmericaNut Housing Ass'y. Includes 70 to 71, North America
-
71232561600 Hex. Elastic Stop Nut M6. Europe, Brazil, Australia, JapanHex. Elastic Stop Nut M6. Europe, Brazil, Australia, Japan
-
71232561600 Hex. Elastic Stop Nut M6. North AmericaHex. Elastic Stop Nut M6. North America
-
157414227300 ClipClip
-
158414227300 ClipClip
-
189517302785 Clip. North AmericaClip. North America
-
189517302785 Clip. Europe, Brazil, Australia, JapanClip. Europe, Brazil, Australia, Japan
-
190517302785 Clip. North AmericaClip. North America
-
190517302785 Clip. Europe, Brazil, Australia, JapanClip. Europe, Brazil, Australia, Japan
-
261710001384 LH High Beam Ass'y. Includes 265 to 268 and 273 to 276, Europe, Brazil, AustraliaLH High Beam Ass'y. Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia
-
261710001386 RH High Beam Ass'y. Includes 265 to 268 and 273 to 276, Europe, Brazil, AustraliaRH High Beam Ass'y. Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia
-
263710003098 LH Bi-Halogen Beam Ass'y. Includes 266 to 268 and 270 to 276, North AmericaLH Bi-Halogen Beam Ass'y. Includes 266 to 268 and 270 to 276, North America
-
263710003097 RH Bi-Halogen Beam Ass'y. Includes 266 to 268 and 270 to 276, North AmericaRH Bi-Halogen Beam Ass'y. Includes 266 to 268 and 270 to 276, North America
-
264710004018 LH Bi-Halogen Beam Ass'y. Includes 265 to 268 and 273 to 276, JapanLH Bi-Halogen Beam Ass'y. Includes 265 to 268 and 273 to 276, Japan
-
264710004019 RH Bi-Halogen Beam Ass'y. Includes 265 to 268 and 273 to 276, JapanRH Bi-Halogen Beam Ass'y. Includes 265 to 268 and 273 to 276, Japan
-
265219800140 Halogen Bulb H9 65WHalogen Bulb H9 65W
-
266219800100 AntivibrationAntivibration
-
267219800099 SpacerSpacer
-
268219800133 Rubber VentilationRubber Ventilation
-
269710002031 Light HousingLight Housing
-
270710003096 Auxilary LightAuxilary Light
-
271219800134 Chromed Screw 4X19Chromed Screw 4X19
-
272219800136 Halogen Bulb HB3 65WHalogen Bulb HB3 65W
-
273219800174 Cover With GasketCover With Gasket
-
274219800111 Adjustement CableAdjustement Cable
-
275219800110 Chromed Screw 4X13Chromed Screw 4X13
-
276710000779 HousingHousing
-
293710001452 Wire BracketWire Bracket
-
294710001452 Wire BracketWire Bracket
-
295710001533 Trunk LightTrunk Light
-
305710002018 RH Wire SupportRH Wire Support
-
306710002019 LH Wire SupportLH Wire Support
-
437710003256 LH Fog Light. Includes 439 to 442, North AmericaLH Fog Light. Includes 439 to 442, North America
-
437710003257 RH Fog Light. Includes 439 to 442, North AmericaRH Fog Light. Includes 439 to 442, North America
-
438710003259 LH Low Beam Ass.. Includes 442 to 446, Europe, Brazil, Australia, JapanLH Low Beam Ass.. Includes 442 to 446, Europe, Brazil, Australia, Japan
-
438710003258 RH Low Beam Ass.. Includes 442 to 446, Europe, Brazil, Australia, JapanRH Low Beam Ass.. Includes 442 to 446, Europe, Brazil, Australia, Japan
-
439219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
440219800174 Cover With GasketCover With Gasket
-
441219800100 AntivibrationAntivibration
-
442219800101 Rubber VentilationRubber Ventilation
-
443219800136 Halogen Bulb HB3 65WHalogen Bulb HB3 65W
-
444219800110 Chromed Screw 4X13Chromed Screw 4X13
-
445219800105 Adjustement CableAdjustement Cable
-
446219800174 Cover With GasketCover With Gasket
-
451710004032 LH Position LightLH Position Light
-
455710004033 RH Position LightRH Position Light
-
539710003810 AAPTS Extension HarnessAAPTS Extension Harness
