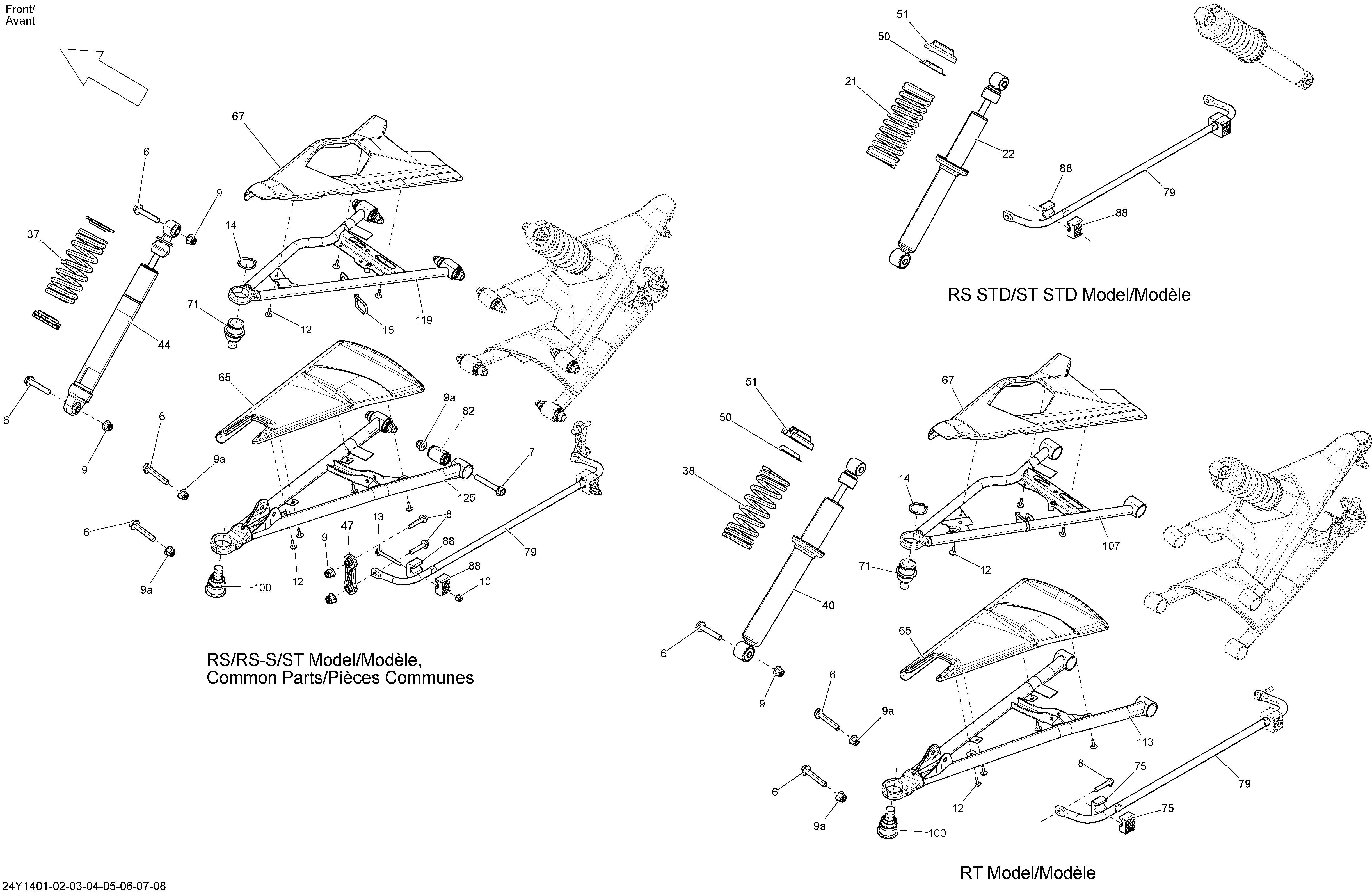

07- Suspension, Front _24Y1402 для BRP Spyder RTS SM6 - 2014
-
№АртикулНазвание
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
7207607036 Hex. Flanged ScrewHex. Flanged Screw
-
8207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
10250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
14293370035 CirclipCirclip
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38706001830 Spring. RT SSpring. RT S
-
40706001549 Shock. RT SShock. RT S
-
47706200671 Tie RodTie Rod
-
50706200785 Cap. RT SCap. RT S
-
51706200881 Spring Stopper. RT SSpring Stopper. RT S
-
65706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
65706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
67706201321 LH Upper Air Deflector. RTLH Upper Air Deflector. RT
-
67706201322 RH Upper Air Deflector. RTRH Upper Air Deflector. RT
-
71706201371 Ball JointBall Joint
-
75706201391 Stabilizer Bushing. RTStabilizer Bushing. RT
-
79706201544 Sway Bar. RTSway Bar. RT
-
82706201519 Suspension Arm BushingSuspension Arm Bushing
-
100706201739 Ball JointBall Joint
-
107706201731 LH Upper Arm. RTLH Upper Arm. RT
-
107706201732 RH Upper Arm. RTRH Upper Arm. RT
-
113706201733 LH Lower Arm. RTLH Lower Arm. RT
-
113706201734 RH Lower Arm. RTRH Lower Arm. RT
