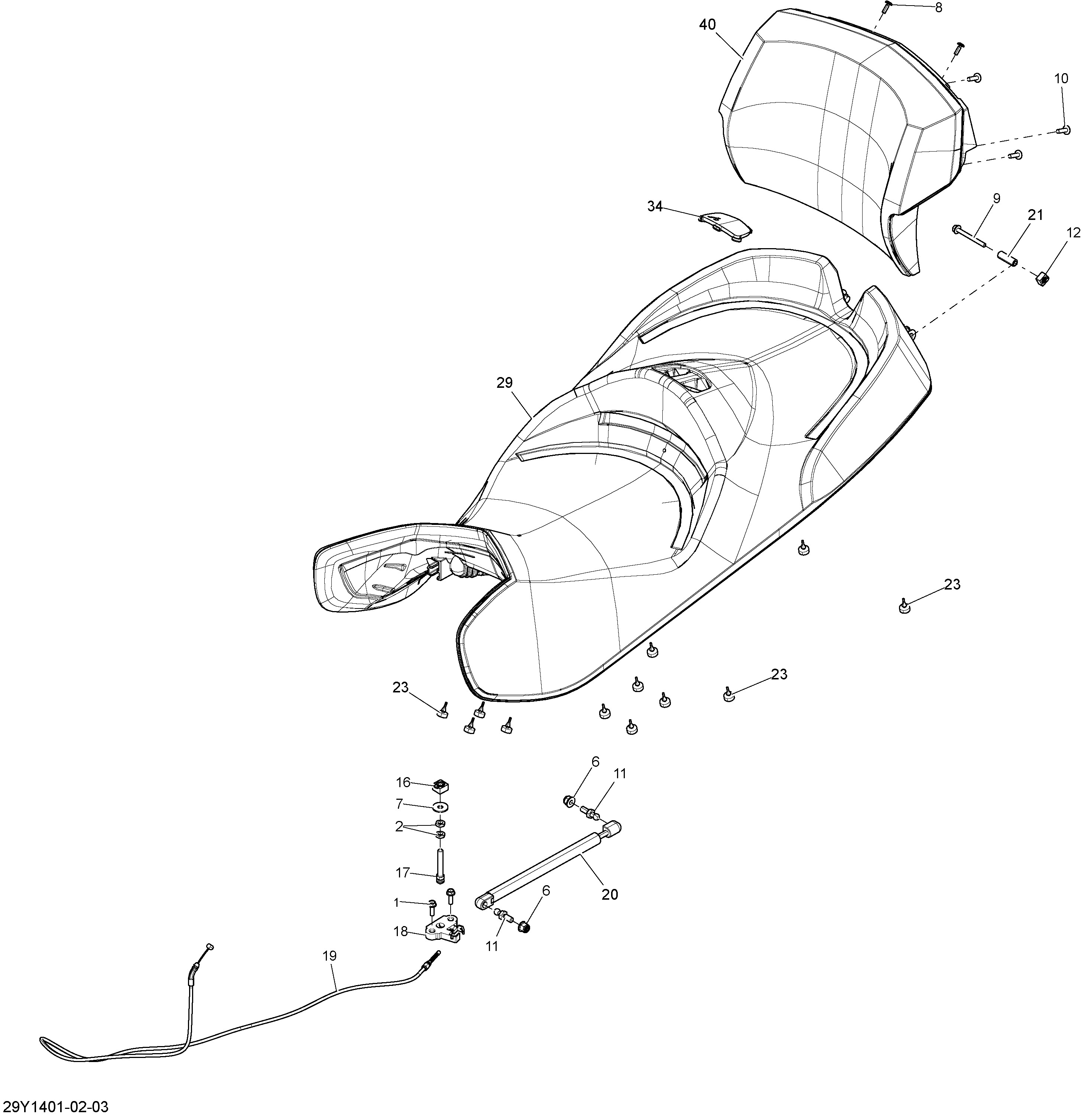

09- Seat _29Y1402 для BRP Spyder RTS SM6 - 2014
-
№АртикулНазвание
-
1210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
2232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7234082410 Flat Washer 8 mmFlat Washer 8 mm
-
8250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
9250000397 Hex. Flanged Screw M6 X 60Hex. Flanged Screw M6 X 60
-
10250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250300039 Ball Head StudBall Head Stud
-
12269500725 Nut Housing Ass'yNut Housing Ass'y
-
16269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
17705002223 LugLug
-
18705007379 LatchLatch
-
19708001341 Seat CableSeat Cable
-
20708000658 Gaz ShockGaz Shock
-
21708000664 SpacerSpacer
-
23708000759 Rubber StopperRubber Stopper
-
29708001645 Black Coal Seat AssemblyBlack Coal Seat Assembly
-
34708001633 Black CapBlack Cap
-
40708001398 Backrest Ass'y, Coal BlackBackrest Ass'y, Coal Black
