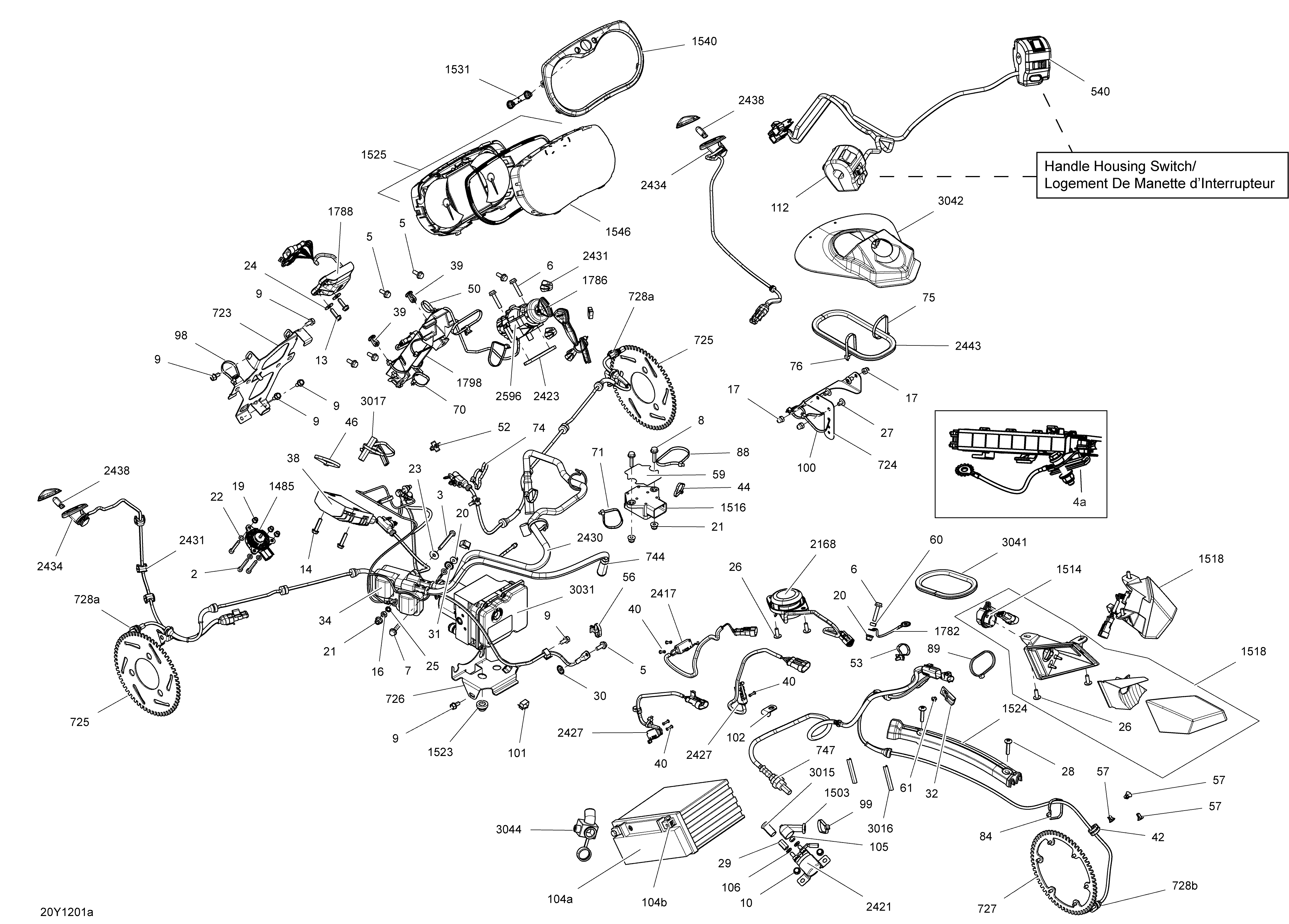

10- Electrical System Commons Parts для BRP Spyder RS SE5 - 2012
‹-+›
-
№АртикулНазвание
-
2205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
3207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
4a710001741 TrimTrim
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
6207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
10210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
13250000413 Thread Forming Screw 1/4-20 X 1''Thread Forming Screw 1/4-20 X 1''
-
14210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
16232061414 Hex. Nut M6Hex. Nut M6
-
17232361493 Domed Nut M6Domed Nut M6
-
19233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22234051410 Flat Washer M5Flat Washer M5
-
23234062410 Flat Washer 6 mmFlat Washer 6 mm
-
24234062410 Flat Washer 6 mmFlat Washer 6 mm
-
25234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
26250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
26250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
27250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
28250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
29250100117 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
30250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
31250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
32270000141 ClipClip
-
34278001546 Ignition CoilIgnition Coil
-
38219800252 Regulator KitRegulator Kit
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40293150150 Pop RivetPop Rivet
-
42293720084 GrommetGrommet
-
44293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
50293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
52293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
53293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
56293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
57293750044 Tie Rap MountTie Rap Mount
-
59293830127 Rubber BumperRubber Bumper
-
60293900054 BushingBushing
-
61390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
70414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
71414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
74414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
75293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
76414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
84414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
88414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
89414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
98414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
99414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
100293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
101414227300 ClipClip
-
102415052400 AttacheAttache
-
105232061600 Hex. Nut M6Hex. Nut M6
-
106234161601 Lock Washer Helical M6Lock Washer Helical M6
-
112515176197 Housing SwitchHousing Switch
-
540710001488 Housing SwitchHousing Switch
-
723705202002 Module SupportModule Support
-
724705202289 Housing SupportHousing Support
-
725705600436 Tone WheelTone Wheel
-
726705600602 Module BracketModule Bracket
-
727705600573 Tone WheelTone Wheel
-
744707000399 Cable Ass'yCable Ass'y
-
747707600557 Oxygen SensorOxygen Sensor
-
1485709400363 Steering Position SensorSteering Position Sensor
-
1503710000794 Positive CablePositive Cable
-
1514520000758 BulbBulb
-
1516710002051 Yaw Angle SensorYaw Angle Sensor
-
1518710000706 LH Tail Light Ass'yLH Tail Light Ass'y
-
1518710000869 RH Tail Light Ass'yRH Tail Light Ass'y
-
1523710000938 StopperStopper
-
1524710001035 ProtectorProtector
-
1525710002755 Multifunction SpeedometerMultifunction Speedometer
-
1531415129355 Speedometer ButtonSpeedometer Button
-
1540415129348 Gauge RingGauge Ring
-
1546415129349 LensLens
-
1782710001165 Ground HarnessGround Harness
-
1786710001211 KeyKey
-
1788219800070 Ignition Switch & DESS Module KitIgnition Switch & DESS Module Kit
-
1798710001328 Connector SupportConnector Support
-
2168710001346 Passenger Detection SwitchPassenger Detection Switch
-
2417710001357 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
2421710001364 Starter RelayStarter Relay
-
2423710001365 Switch SupportSwitch Support
-
2427710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
2430707000518 Cable Ass'yCable Ass'y
-
2431710001452 Wire BracketWire Bracket
-
2434710001478 Position LightPosition Light
-
2438410922994 Bulb 5W.Bulb 5W.
-
2443271001530 TrimTrim
-
2596219800070 Ignition Switch & DESS Module KitIgnition Switch & DESS Module Kit
-
3015710001610 BootBoot
-
3016271001530 TrimTrim
-
3017271001530 TrimTrim
-
3031219800098 Calibration ModuleCalibration Module
-
3041271001530 TrimTrim
-
3042710002074 MouldingMoulding
-
3044710002261 Battery BootBattery Boot
-
104a410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
104b295500849 Battery Fastener KitBattery Fastener Kit
-
728a706200495 Speed SensorSpeed Sensor
-
728b706200560 Speed SensorSpeed Sensor
