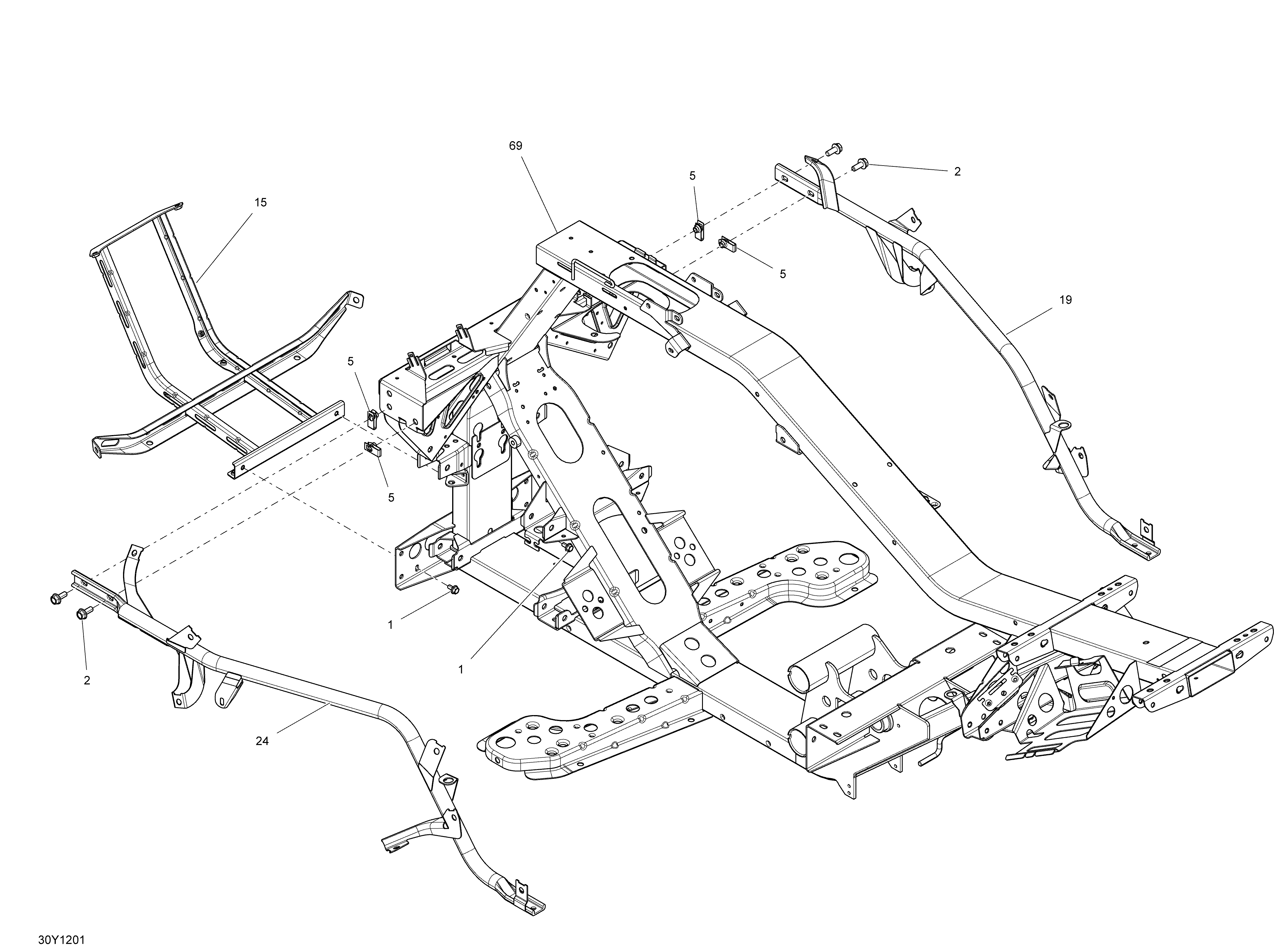

09- Frame для BRP Spyder RS SE5 - 2012
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
5250100118 Panel Nut M8 X 1,25Panel Nut M8 X 1,25
-
15705201326 Front FrameFront Frame
-
19705203272 Support RHSupport RH
-
24705202823 LH Lateral SupportLH Lateral Support
-
69705202894 Paint FramePaint Frame
