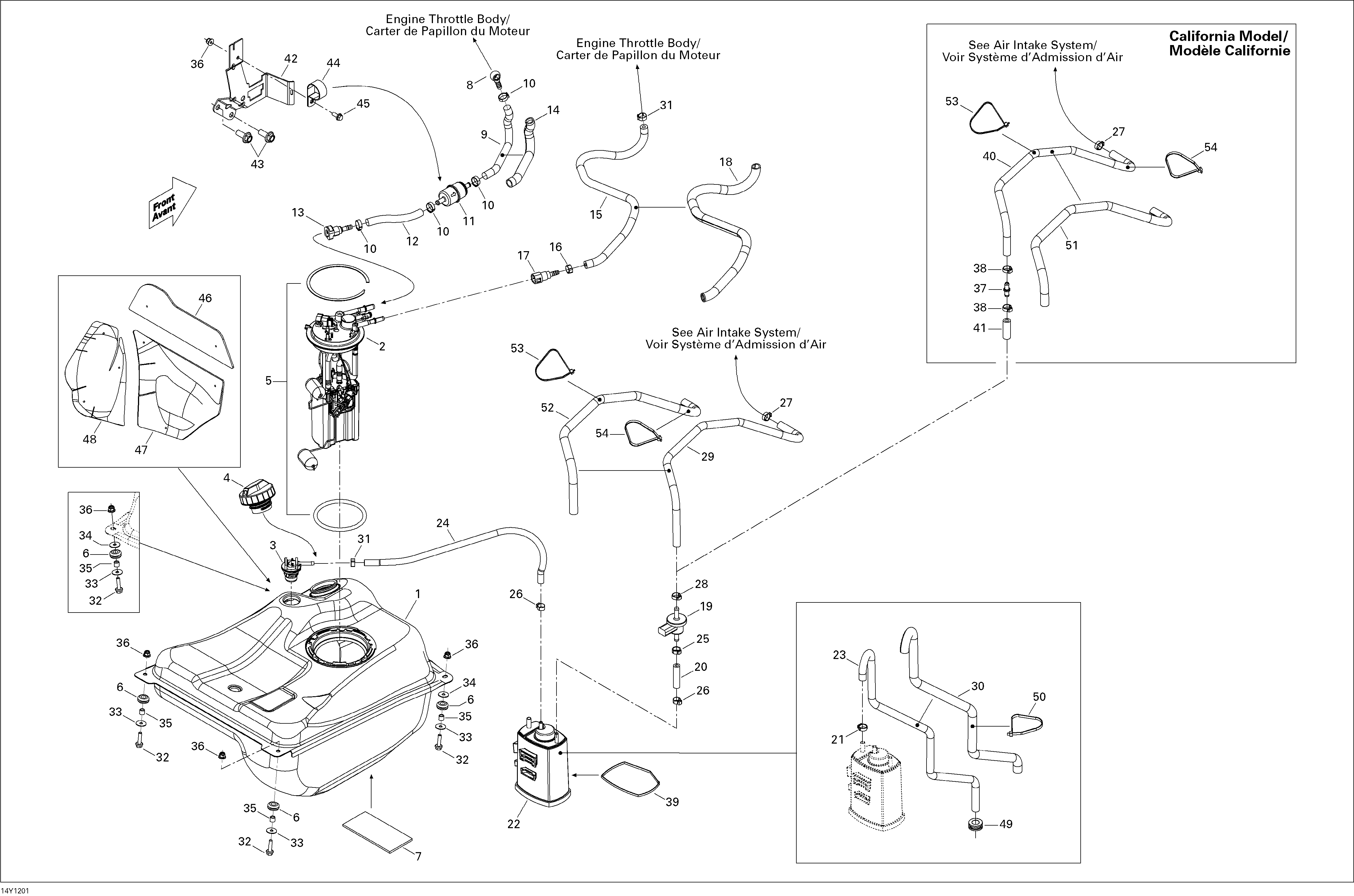

02- Fuel System для BRP Spyder RS SE5 - 2012
-
№АртикулНазвание
-
1709000314 Fuel TankFuel Tank
-
2709000088 Pump ModulePump Module
-
3709000127 Rollover ValveRollover Valve
-
4709000414 Fuel CapFuel Cap
-
5709000203 Retainer KitRetainer Kit
-
6293720053 GrommetGrommet
-
7709000130 CarpetCarpet
-
8709000137 Banjo FittingBanjo Fitting
-
9709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
10293650125 Oetiker ClampOetiker Clamp
-
11709000100 Fuel FilterFuel Filter
-
12709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
13709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
14415080000 Tubing 16 mmTubing 16 mm
-
15709000266 Fuel Line 6.4 mm, MeterFuel Line 6.4 mm, Meter
-
16293650046 Oetiker ClampOetiker Clamp
-
17709000141 Quick FittingQuick Fitting
-
18513033412 TubingTubing
-
19709000108 Purge ValvePurge Valve
-
20709000254 HoseHose
-
21293650047 Crimp ClampCrimp Clamp
-
22709000090 Fuel Evaporative Emissions CanisterFuel Evaporative Emissions Canister
-
23709000277 Evaporative Emissions Canister Vent HoseEvaporative Emissions Canister Vent Hose
-
24513033565 HoseHose
-
25293650047 Crimp ClampCrimp Clamp
-
26293650025 Oetiker Gear ClampOetiker Gear Clamp
-
27293650047 Crimp ClampCrimp Clamp
-
28293650047 Crimp ClampCrimp Clamp
-
29415129492 HoseHose
-
30513033412 TubingTubing
-
31293650025 Oetiker Gear ClampOetiker Gear Clamp
-
32207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
33224060201 Flat WasherFlat Washer
-
34224060201 Flat WasherFlat Washer
-
35709000162 BushingBushing
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37709000416 Flow Reducer. CaliforniaFlow Reducer. California
-
38293650047 Crimp Clamp. CaliforniaCrimp Clamp. California
-
39293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40415129492 Hose. CaliforniaHose. California
-
41415129492 Hose. CaliforniaHose. California
-
42709000150 SupportSupport
-
43207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
44513033047 Open ClampOpen Clamp
-
45207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
46709000157 Reflective SheetReflective Sheet
-
47709000158 Reflective SheetReflective Sheet
-
48709000159 Reflective SheetReflective Sheet
-
49293720087 GrommetGrommet
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
51415080000 Tubing 16 mm. CaliforniaTubing 16 mm. California
-
52415080000 Tubing 16 mmTubing 16 mm
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
