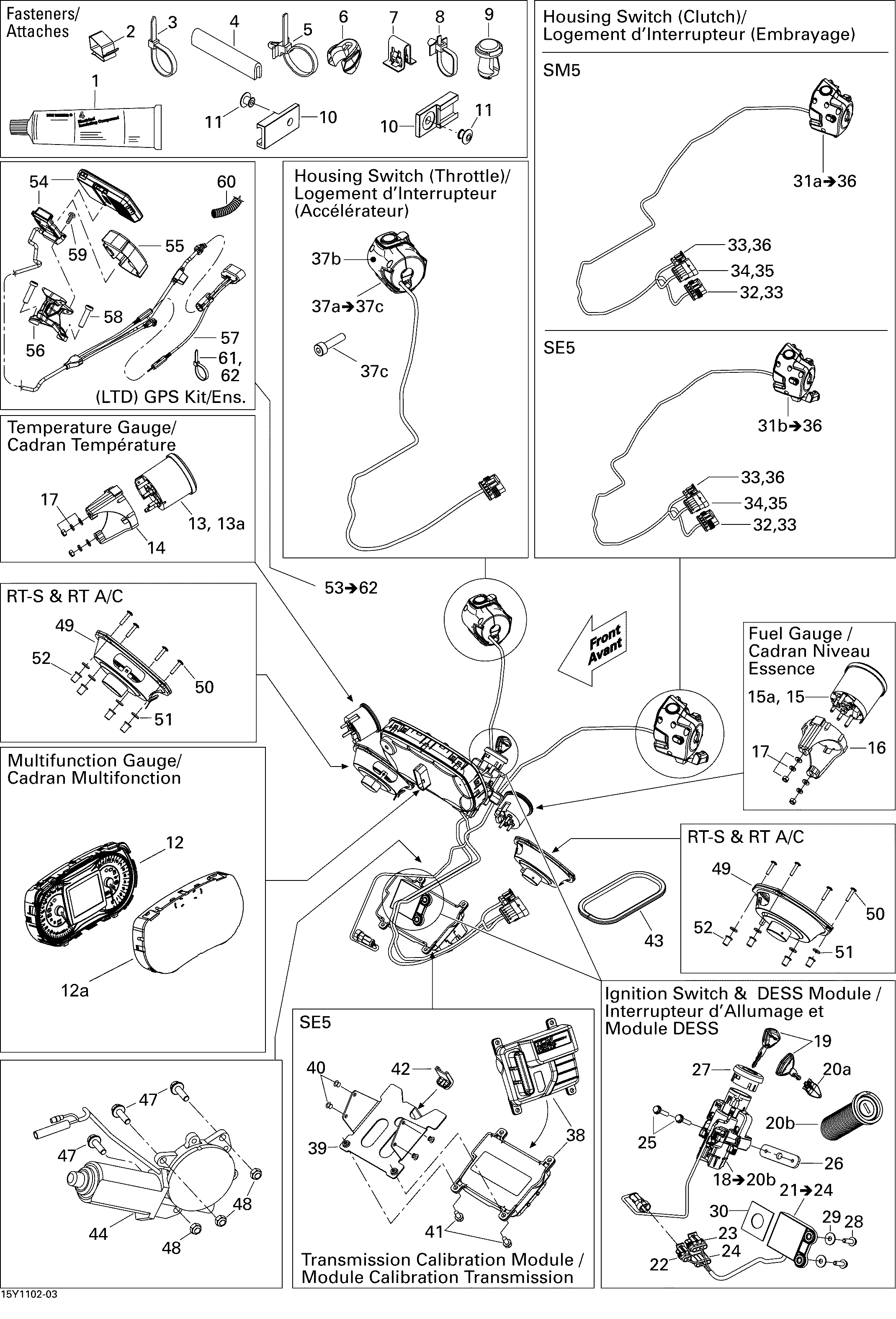

10- Electrical Accessories, Steering для BRP Spyder RT LTD - 2011

№

Артикул

Название
1

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
2

414227300 Clip

Clip
3

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
3

515175220 Tie Rap

Tie Rap
4

271001530 Trim

Trim
5

293750009 Tie-Rap 173 mm

Tie-Rap 173 mm
6

710001452 Wire Bracket

Wire Bracket
7

517302785 Clip. North America

Clip. North America
8

710002197 Unlocking Clip

Unlocking Clip
9

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
10

270000141 Clip

Clip
11

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''
12

710002799 Multifunction Speedometer

Multifunction Speedometer
12a

415129349 Lens

Lens
13

710002253 Temp Gauge

Temp Gauge
13a

219800181 Led Bulb

Led Bulb
14

710002067 Case Holder

Case Holder
15

710003506 Fuel Gauge

Fuel Gauge
15a

219800181 Led Bulb

Led Bulb
16

710002067 Case Holder

Case Holder
17

250100142 Hex. Serrated Flange Nut

Hex. Serrated Flange Nut
18

710002344 Ignition Switch. Includes 18 to 20b

Ignition Switch. Includes 18 to 20b
19

710001211 Key

Key
20a

710001102 Cover

Cover
21

219800198 Ignition Switch Module Kit. Includes 21 to 24

Ignition Switch Module Kit. Includes 21 to 24
22

409209500 Female Housing, 2 Circuits

Female Housing, 2 Circuits
23

409209700 Female Housing, 4 Circuits

Female Housing, 4 Circuits
24

710000576 Housing, 4circuits

Housing, 4circuits
25

207563044 Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip
26

710001365 Switch Support

Switch Support
27

710001194 Switch Cover

Switch Cover
28

210262080 Hex. Forming Screw M6 X 20

Hex. Forming Screw M6 X 20
29

234062410 Flat Washer 6 mm

Flat Washer 6 mm
30

293830091 Rubber Bumper

Rubber Bumper
31b

710002611 LH Housing Switch. SE5, 31b to 36

LH Housing Switch. SE5, 31b to 36
32

409209700 Female Housing, 4 Circuits

Female Housing, 4 Circuits
33

515176164 Male Terminal

Male Terminal
34

710000815 Housing, 6 Circuits

Housing, 6 Circuits
35

710001340 Female Terminal

Female Terminal
36

409209600 Female Housing, 3 Circuits

Female Housing, 3 Circuits
37a

710002221 RH Switch Housing. Includes 37a to 37c

RH Switch Housing. Includes 37a to 37c
37b

219800211 Rear Throttle Side Housing

Rear Throttle Side Housing
37c

250000494 Socket Screw, M4 X 16 Scotch Grip

Socket Screw, M4 X 16 Scotch Grip
38

710002517 TCM Calibrated Module

TCM Calibrated Module
39

710001955 TCM Support

TCM Support
40

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''
41

210261280 Hex. Flanged Screw M6 X 12

Hex. Flanged Screw M6 X 12
42

278001166 Module Protector

Module Protector
43

271001530 Trim

Trim
44

278002579 Parking Barke/Windshield Motor. Includes 44 to 46

Parking Barke/Windshield Motor. Includes 44 to 46
45

278000231 Insulation Sheath

Insulation Sheath
46

278000230 Male Terminal

Male Terminal
47

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip
48

232561434 Elastic Stop Nut M6

Elastic Stop Nut M6
49

710001403 Front Speaker

Front Speaker
50

250000405 Torx Screw M4 X 20

Torx Screw M4 X 20
51

517225900 Flat Washer

Flat Washer
52

705003635 Well Rubber Nut M4 X 0.7

Well Rubber Nut M4 X 0.7
53

219400149 GPS Kit Ass'y. Includes 53 to 62

GPS Kit Ass'y. Includes 53 to 62
55

710001538 GPS Protector Support

GPS Protector Support
56

709400662 GPS Support

GPS Support
57

710002182 GPS Harness

GPS Harness
58

250000456 Thin Socket Screw, Scotch Grip, M10 X 40

Thin Socket Screw, Scotch Grip, M10 X 40
59

208641260 Phillips Screw M4 X 12

Phillips Screw M4 X 12
60

409901800 Tubing 13 mm

Tubing 13 mm
61

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
62

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm
