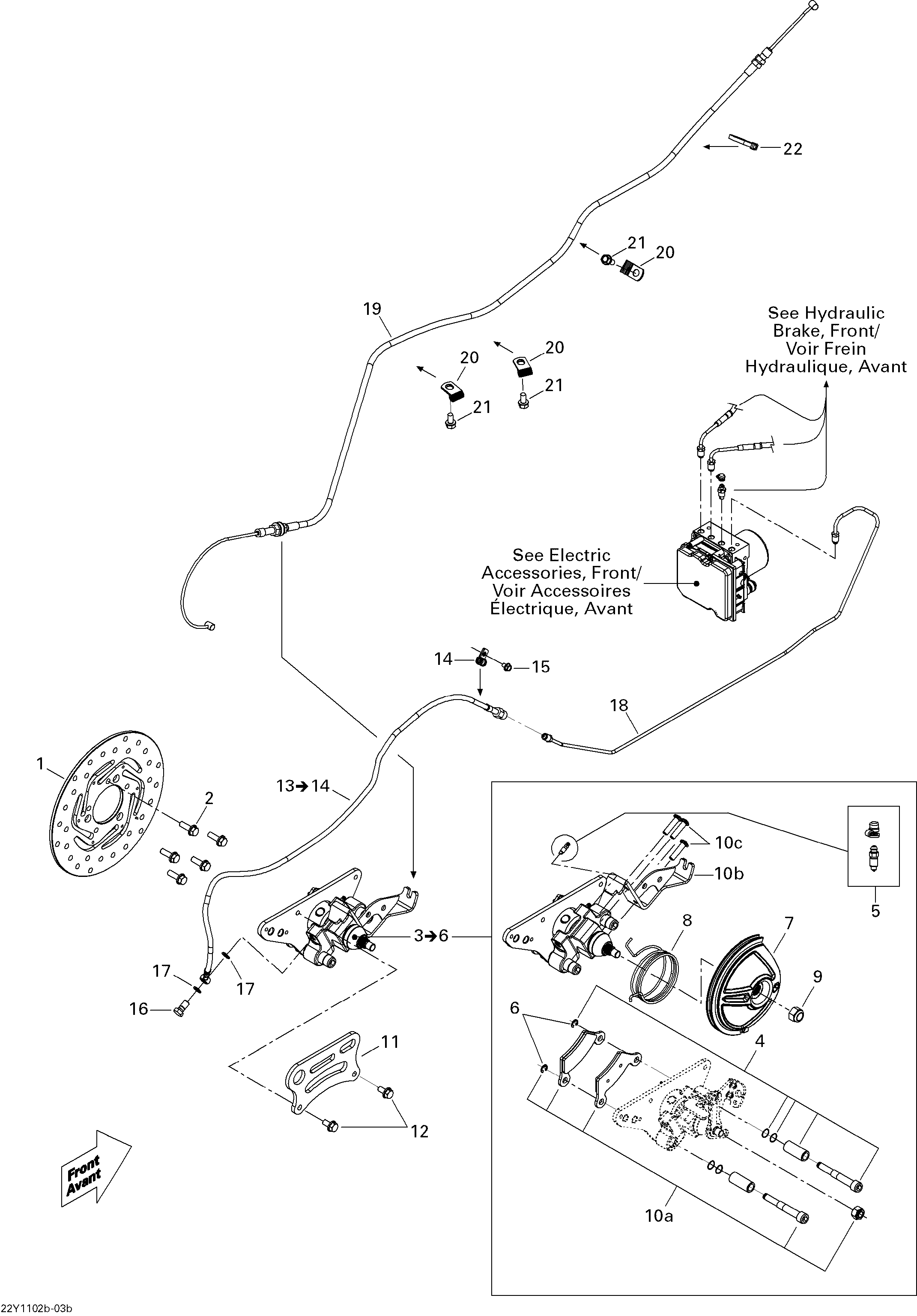

06- Hydraulic Brake, Rear для BRP Spyder RT LTD - 2011
-
№АртикулНазвание
-
1705600995 Rear Disc BrakeRear Disc Brake
-
2207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
3705600921 Rear Caliper. Includes 3 to 6Rear Caliper. Includes 3 to 6
-
4219800032 Bushing KitBushing Kit
-
5219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
6219800050 Retaining RingRetaining Ring
-
7705600772 Rear Pulley CableRear Pulley Cable
-
8705600770 Brake SpringBrake Spring
-
9250100128 Nut 7/16''Nut 7/16''
-
10a219800165 Rear Pad KitRear Pad Kit
-
10b705600974 Cable SupportCable Support
-
10c250000413 Thread Forming Screw 1/4-20 X 1''Thread Forming Screw 1/4-20 X 1''
-
11705600430 Rear Caliper SupportRear Caliper Support
-
12207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
13705600813 Rear Brake Line. Includes 13 to 14Rear Brake Line. Includes 13 to 14
-
14705600459 ClampClamp
-
15210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
16414920500 Banjo BoltBanjo Bolt
-
17414920600 WasherWasher
-
18705600834 Rear Rigid TubeRear Rigid Tube
-
19707000927 Parking Brake CableParking Brake Cable
-
20415052400 AttacheAttache
-
21210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
