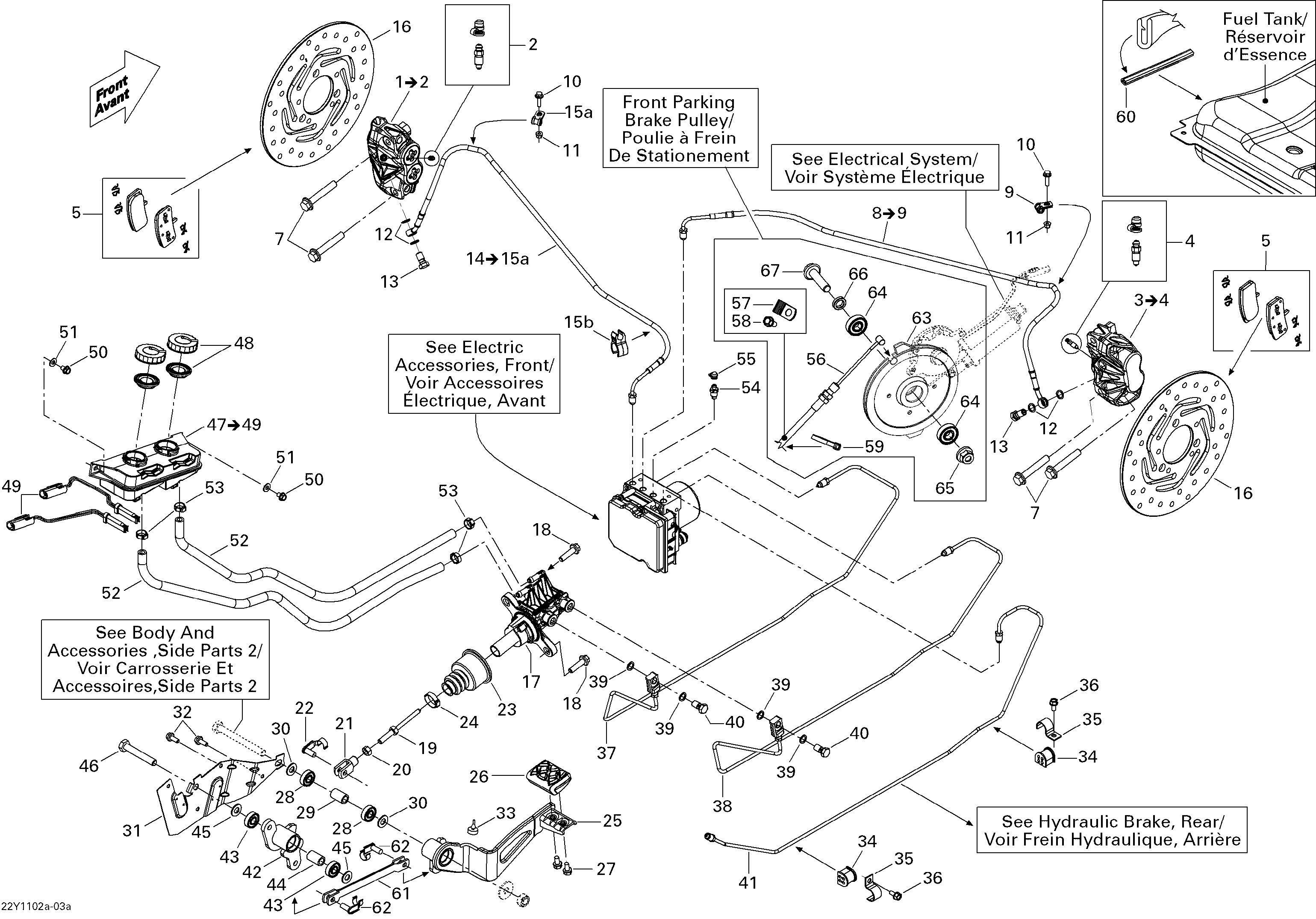

06- Hydraulic Brake, Front для BRP Spyder RT LTD - 2011

№

Артикул

Название
1

219800125 LH Front Caliper Ass'y. Includes 1 to 2

LH Front Caliper Ass'y. Includes 1 to 2
2

219800045 Bleed Screw And Spring Kit

Bleed Screw And Spring Kit
3

219800126 RH Front Caliper Ass'y. Includes 3 to 4

RH Front Caliper Ass'y. Includes 3 to 4
4

219800045 Bleed Screw And Spring Kit

Bleed Screw And Spring Kit
5

219800164 Pad Kit (4 Pads)

Pad Kit (4 Pads)
7

207506034 Hex. Flanged Screw M10 X 60, Scotch Grip

Hex. Flanged Screw M10 X 60, Scotch Grip
8

705600852 RH Front Flexible Brake Line. Includes 8 to 9

RH Front Flexible Brake Line. Includes 8 to 9
9

705600459 Clamp

Clamp
10

207652034 Hex. Flanged Screw M5 X 20

Hex. Flanged Screw M5 X 20
11

233251434 Flanged Elastic Nut M5

Flanged Elastic Nut M5
12

414920600 Washer

Washer
13

414920500 Banjo Bolt

Banjo Bolt
14

705600853 LH Front Flexible Brake Line. Includes 14 to 15a

LH Front Flexible Brake Line. Includes 14 to 15a
15a

705600459 Clamp

Clamp
15b

705600854 Hose Clip

Hose Clip
16

705600435 Front Brake Disc

Front Brake Disc
17

705600722 Tandem Cylinder Master

Tandem Cylinder Master
18

207583044 Hex. Flanged Screw M8 X 30, Scotch Grip

Hex. Flanged Screw M8 X 30, Scotch Grip
19

705600468 Piston Rod

Piston Rod
20

232081414 Hex. Nut M8

Hex. Nut M8
21

705600100 Yoke

Yoke
22

250400007 Pin

Pin
23

705600716 Bellow

Bellow
24

509000442 Oetiker Gear Clamp

Oetiker Gear Clamp
25

705600920 Brake Pedal

Brake Pedal
26

705004933 Rubber Pad

Rubber Pad
27

210261280 Hex. Flanged Screw M6 X 12

Hex. Flanged Screw M6 X 12
28

705600458 Bearing

Bearing
29

705600541 Bushing

Bushing
30

503183800 Washer

Washer
31

705600842 Tab Lock

Tab Lock
32

207561644 Hex. Flanged Screw M6 X 16, Scotch Grip

Hex. Flanged Screw M6 X 16, Scotch Grip
33

708000759 Rubber Stopper

Rubber Stopper
34

705600843 Tube Support

Tube Support
35

705600507 Clip

Clip
36

210261280 Hex. Flanged Screw M6 X 12

Hex. Flanged Screw M6 X 12
37

705600721 Front Tandem Rigid Tube

Front Tandem Rigid Tube
38

705600742 Rear Tandem Rigid Tube

Rear Tandem Rigid Tube
39

414920600 Washer

Washer
40

414920500 Banjo Bolt

Banjo Bolt
41

705600834 Rear Rigid Tube

Rear Rigid Tube
42

705600855 Rocker Arm

Rocker Arm
43

705600458 Bearing

Bearing
44

705600541 Bushing

Bushing
45

503183800 Washer

Washer
46

207206534 Hex. Screw M10 X 65, Scotch Grip

Hex. Screw M10 X 65, Scotch Grip
47

705600735 Brake Fluid Reservoir Ass'y. Includes 47 to 49

Brake Fluid Reservoir Ass'y. Includes 47 to 49
48

219800058 Cap And Diaphragm Kit

Cap And Diaphragm Kit
49

515176508 Oil Level Sensor

Oil Level Sensor
50

210261280 Hex. Flanged Screw M6 X 12

Hex. Flanged Screw M6 X 12
51

224061121 Flat Washer

Flat Washer
52

276000084 Hose 8 mm

Hose 8 mm
53

293650047 Collet A Sertir

Collet A Sertir
54

705600502 Bleeder Screw

Bleeder Screw
55

705600554 Bleeder Cap

Bleeder Cap
56

707000927 Parking Brake Cable

Parking Brake Cable
57a

415052400 Attache

Attache
57b

207662034 Hex. Flanged Screw

Hex. Flanged Screw
58

210261280 Hex. Flanged Screw M6 X 12

Hex. Flanged Screw M6 X 12
59

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
60

271001530 Trim

Trim
61

705600959 Connecting Rod

Connecting Rod
62

250400007 Pin

Pin
63

705600768 Front Pulley Cable

Front Pulley Cable
64

705600458 Bearing

Bearing
65

233201416 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10
66

293900087 Bushing

Bushing
67

207604044 Hex. Flanged Screw M10 X 40

Hex. Flanged Screw M10 X 40
