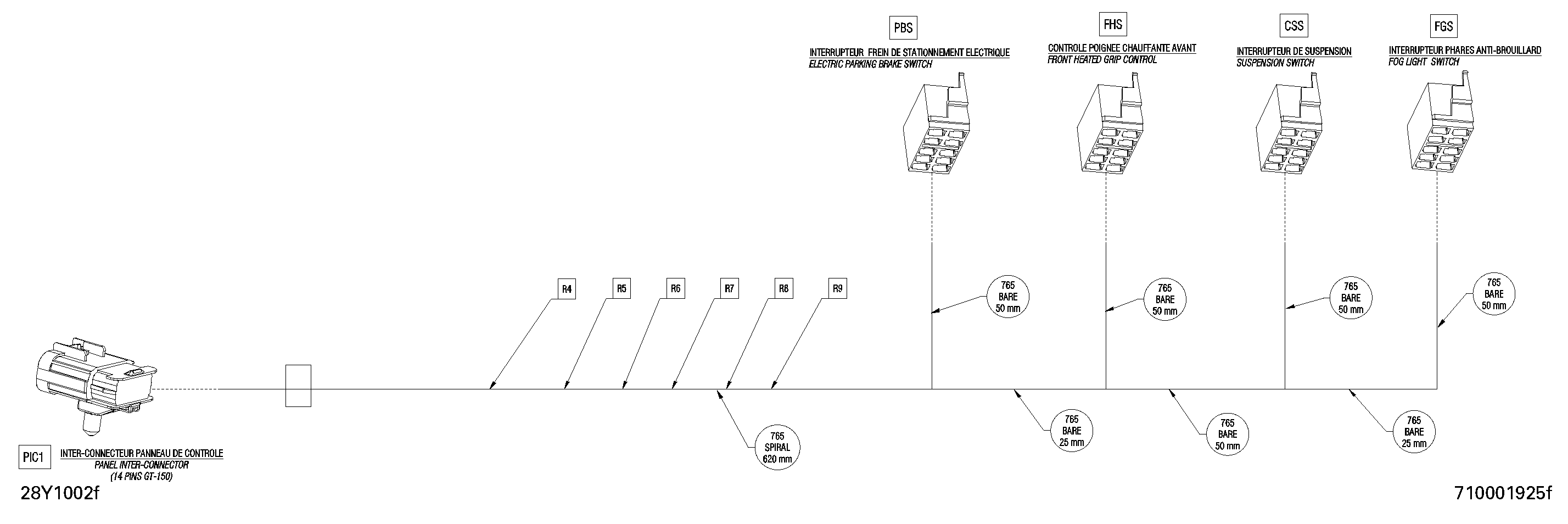

10- Electrical Harness , Switch для BRP Spyder RT, RTS Roadster SE5 - 2010
-
№АртикулНазвание
-
1710001925 Switch Harness. Includes 1 to R9Switch Harness. Includes 1 to R9
-
CSS710002083 HousingHousing
-
CSS710001931 TerminalTerminal
-
FGS710002001 Housing ConnectorHousing Connector
-
FGS710000221 Female TerminalFemale Terminal
-
FGS710001931 TerminalTerminal
-
FHS710002003 Housing ConnectorHousing Connector
-
FHS710001931 TerminalTerminal
-
PBS710002002 Housing ConnectorHousing Connector
-
PBS710001931 TerminalTerminal
-
PIC1710001944 HousingHousing
-
PIC1710002006 HolderHolder
-
PIC1710001225 CapCap
-
PIC1710001332 Seal WireSeal Wire
-
PIC1710001224 TerminalTerminal
-
PIC1710001863 TerminalTerminal
-
R4710001587 ResistorResistor
-
R5710001586 ResistorResistor
