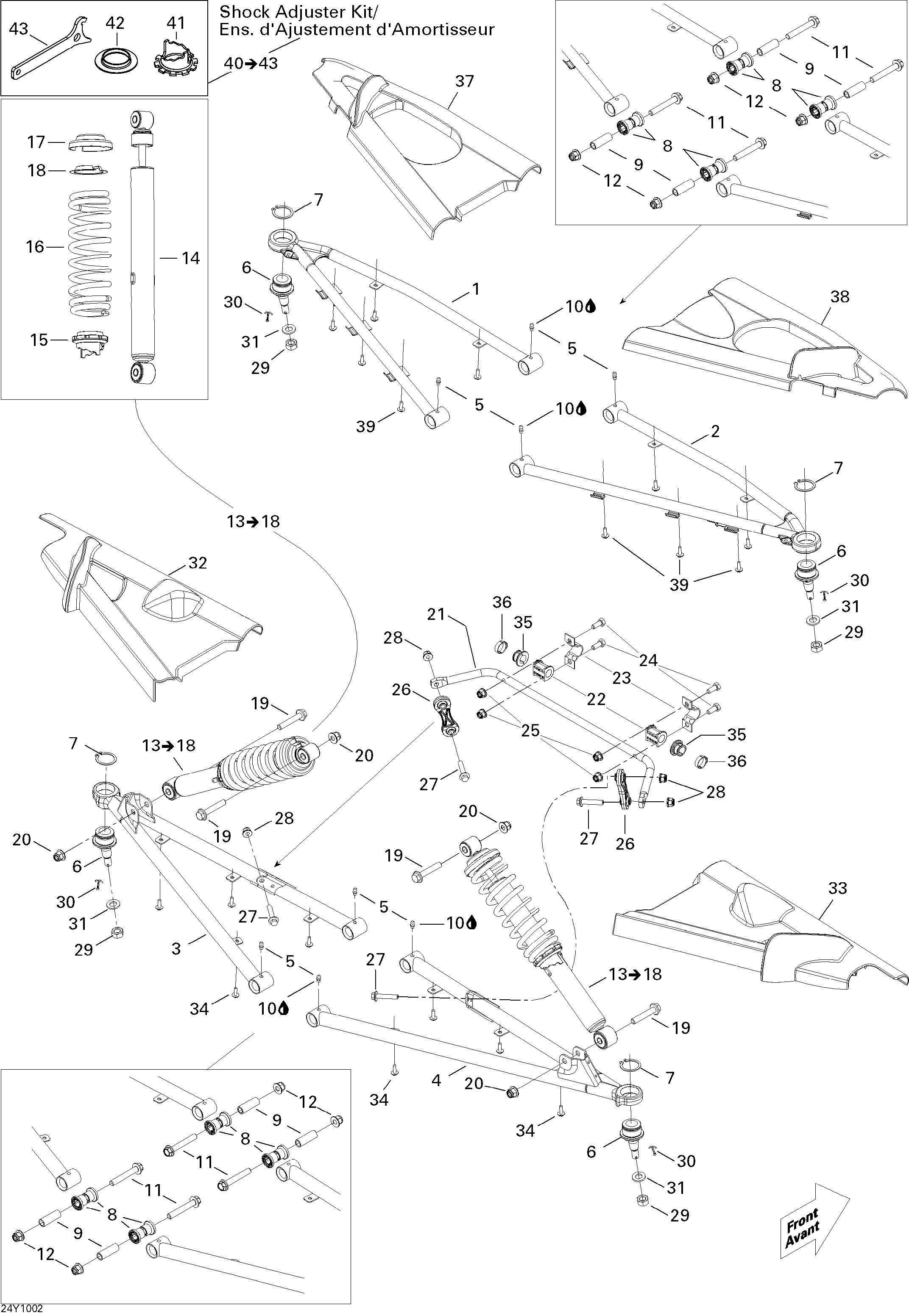

07- Suspension, Front для BRP Spyder RT, RTS Roadster SE5 - 2010
-
№АртикулНазвание
-
1706201000 LH Upper ArmLH Upper Arm
-
2706201001 RH Upper ArmRH Upper Arm
-
3706201002 LH Lower ArmLH Lower Arm
-
4706201003 RH Lower ArmRH Lower Arm
-
5408200700 Grease FittingGrease Fitting
-
6505072362 Ball JointBall Joint
-
7293370035 CirclipCirclip
-
8706200181 CushionCushion
-
9706200618 BushingBushing
-
10293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
11207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
12233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14706000675 ShockShock
-
15706000294 Adjuster RingAdjuster Ring
-
16706000676 SpringSpring
-
17706200881 Spring StopperSpring Stopper
-
18706200785 CapCap
-
19207605534 Hex. Flanged ScrewHex. Flanged Screw
-
20233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
21706201156 Sway BarSway Bar
-
22505070881 RH Bushing, 5/8''RH Bushing, 5/8''
-
23506095800 ClampClamp
-
24207182034 Hex. Cap Screw M8 X 20Hex. Cap Screw M8 X 20
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26706200671 Tie RodTie Rod
-
27207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
28233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29250100099 Nut M12Nut M12
-
30250400035 Cotter PinCotter Pin
-
31250200086 Flat WasherFlat Washer
-
32706200884 LH Lower DeflectorLH Lower Deflector
-
33706200885 RH Lower DeflectorRH Lower Deflector
-
34243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
35706201158 Sway Bar StopperSway Bar Stopper
-
36293650012 Oetiker ClampOetiker Clamp
-
37706200886 LH Upper DeflectorLH Upper Deflector
-
38706200887 RH Upper DeflectorRH Upper Deflector
-
39243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
40219800217 Shock Adjuster Kit. Includes 40 to 43Shock Adjuster Kit. Includes 40 to 43
-
41706001061 Adjuster RingAdjuster Ring
-
42706001062 Ring ProtectorRing Protector
-
43529000059 Adjustment WrenchAdjustment Wrench
