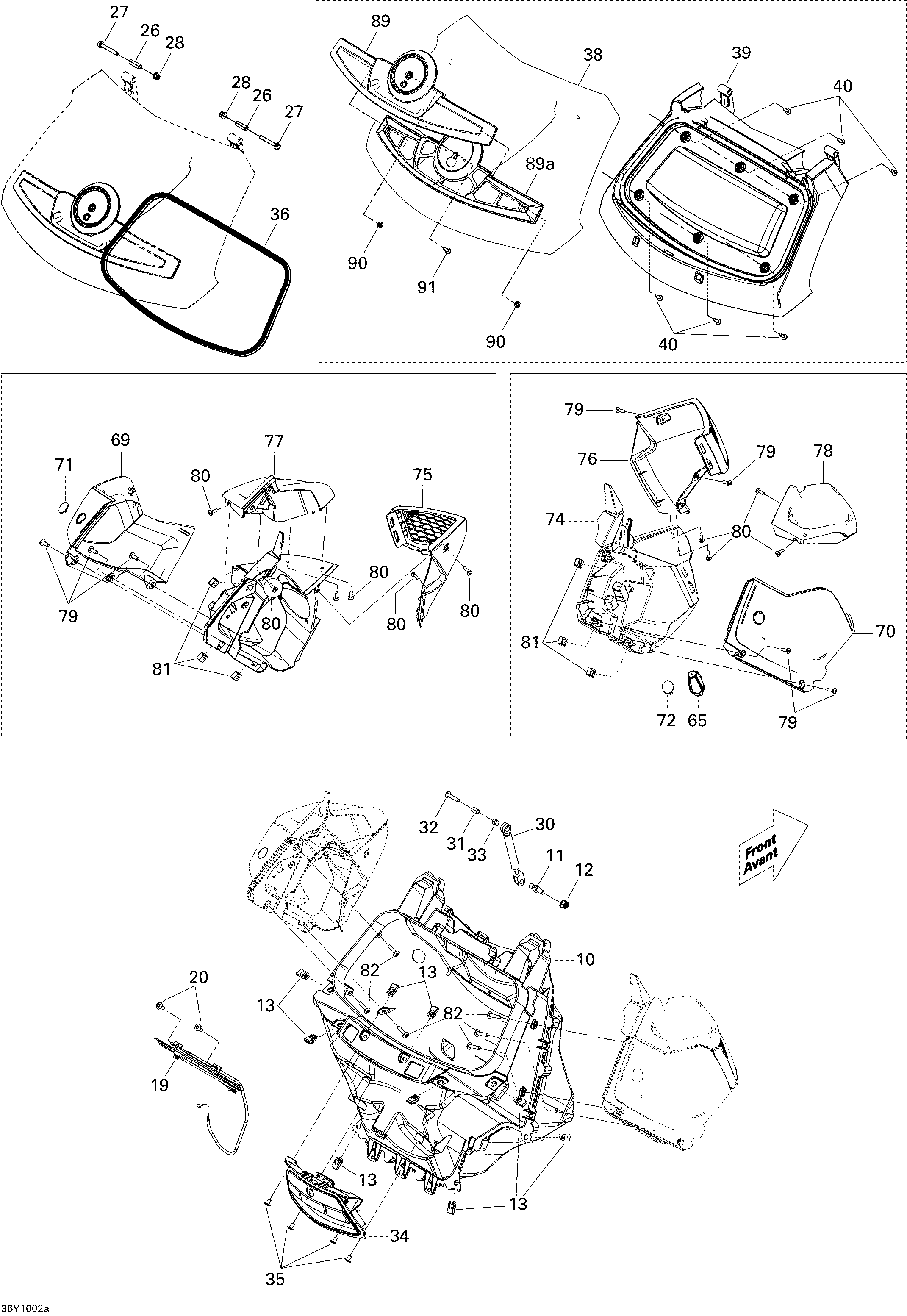

09- Luggages A для BRP Spyder RT, RTS Roadster SE5 - 2010

  • №
    Артикул
    Название
  • 10
    708300044 Storage Ass'y
    Storage Ass'y
  • 11
    250300039 Ball Stud
    Ball Stud
  • 12
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 13
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 19
    708300188 Center Latch
    Center Latch
  • 20
    250000348 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
  • 26
    708300394 Spacer
    Spacer
  • 27
    207664544 Flanged Hex. Screw M6 X 45
    Flanged Hex. Screw M6 X 45
  • 28
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 30
    708300383 Gaz Shock
    Gaz Shock
  • 31
    708300384 Spacer
    Spacer
  • 32
    250000398 Stainless Torx Screw,Nylon Patch,M6 X 30
    Stainless Torx Screw,Nylon Patch,M6 X 30
  • 33
    232361493 Domed Nut M6
    Domed Nut M6
  • 34
    708300009 Main Control
    Main Control
  • 35
    250000349 Torx Truss Screw M6 X 10
    Torx Truss Screw M6 X 10
  • 36
    708300456 Seal
    Seal
  • 38
    708300244 Central Cover. All Full Moon Except RTS
    Central Cover. All Full Moon Except RTS
  • 38
    708300245 Central Cover. Timeless Black Metallic RTS
    Central Cover. Timeless Black Metallic RTS
  • 38
    708300246 Central Cover. All Orbital Blue Metallic Except RTS
    Central Cover. All Orbital Blue Metallic Except RTS
  • 38
    708300411 Central Cover. Orbital Blue Metallic RTS
    Central Cover. Orbital Blue Metallic RTS
  • 39
    708300013 Inner Cover
    Inner Cover
  • 40
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 65
    708300156 RH Antena Base. All Models Except RT
    RH Antena Base. All Models Except RT
  • 69
    708300251 LH Arm Cover. Orbital Blue Metallic
    LH Arm Cover. Orbital Blue Metallic
  • 69
    708300249 LH Arm Cover. Timeless Black Metallic
    LH Arm Cover. Timeless Black Metallic
  • 69
    708300247 LH Arm Cover. Full Moon
    LH Arm Cover. Full Moon
  • 70
    708300248 RH Arm Cover. Full Moon
    RH Arm Cover. Full Moon
  • 70
    708300250 RH Arm Cover. Timeless Black Metallic
    RH Arm Cover. Timeless Black Metallic
  • 70
    708300252 RH Arm Cover. Orbital Blue Metallic
    RH Arm Cover. Orbital Blue Metallic
  • 71
    708300370 LH Cap. Timeless Black Metallic
    LH Cap. Timeless Black Metallic
  • 72
    708300293 RH Cap. Full Moon RT
    RH Cap. Full Moon RT
  • 74
    708300037 RH Sound Box
    RH Sound Box
  • 75
    708300381 LH Grill Ass'y
    LH Grill Ass'y
  • 76
    708300382 RH Grill Ass'y
    RH Grill Ass'y
  • 77
    708000614 LH Arm Rest
    LH Arm Rest
  • 78
    708000615 RH Arm Rest
    RH Arm Rest
  • 79
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 80
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 81
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 82
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 89
    219400192 Moulding Kit. RTS
    Moulding Kit. RTS
  • 89a
    219400192 Moulding Kit. RTS
    Moulding Kit. RTS
  • 90
    732610072 Push Nut. RTS
    Push Nut. RTS
  • 91
    250000146 Truss Head Torx Screw K50 X 16. RTS
    Truss Head Torx Screw K50 X 16. RTS
