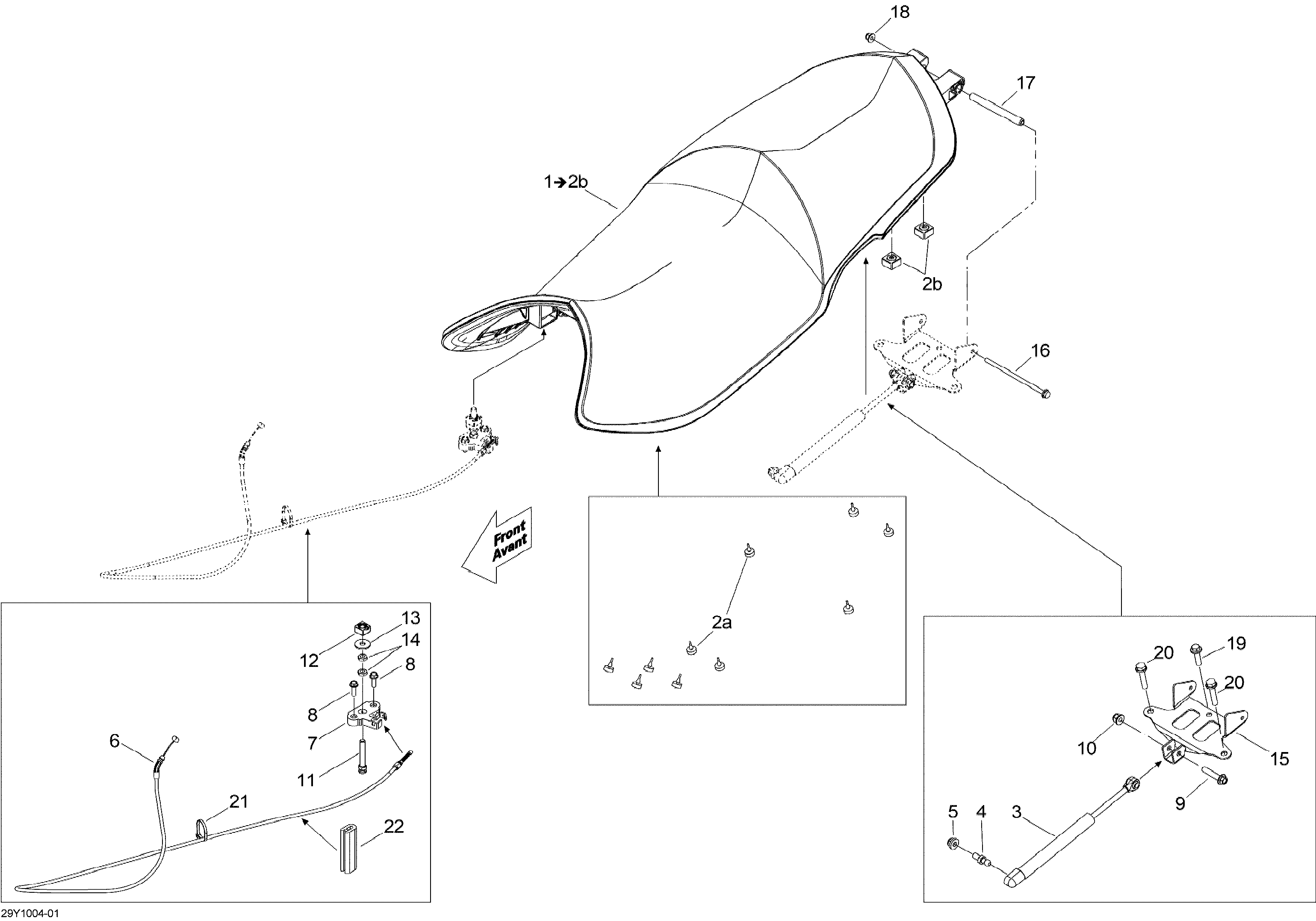

09- Seat для BRP Spyder RS Roadster SM5 - 2010
-
№АртикулНазвание
-
1708000802 Seat Ass'y. Includes 1 to 2bSeat Ass'y. Includes 1 to 2b
-
2a708000759 Rubber StopperRubber Stopper
-
2b269500725 Nut Housing Ass'yNut Housing Ass'y
-
3708000479 Gaz ShockGaz Shock
-
4250300016 Ball StudBall Stud
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6708000489 Cable SeatCable Seat
-
7705002224 LatchLatch
-
8210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
9207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11705002223 LugLug
-
12269501387 Nut Housing Ass'yNut Housing Ass'y
-
13234082410 Flat Washer 8 mmFlat Washer 8 mm
-
14232180600 Nut M8Nut M8
-
15708000510 Pivot PlatePivot Plate
-
16230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
17708000509 Spacer BushingSpacer Bushing
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
20207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22271001530 TrimTrim
