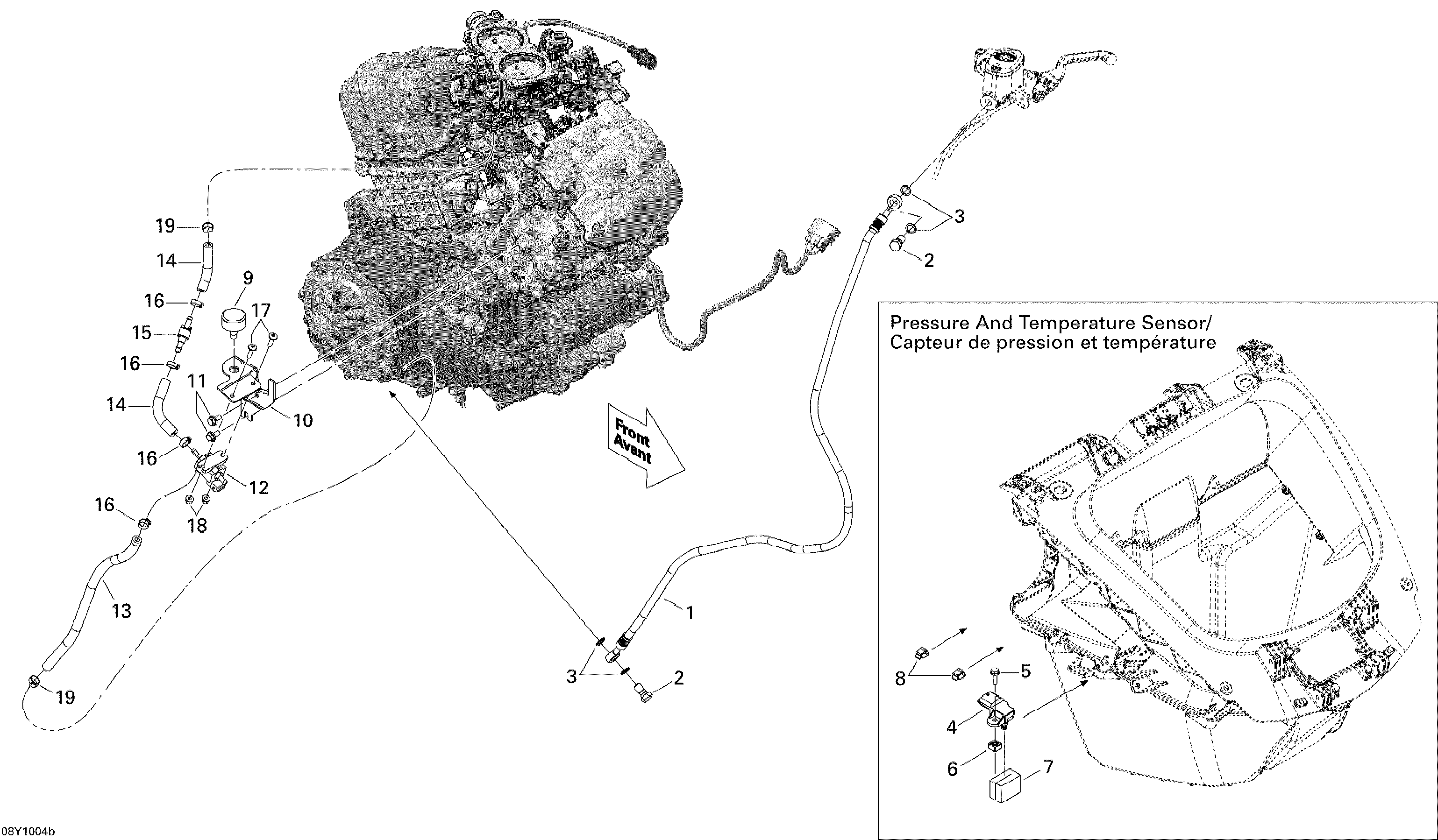

01- Engine 2_SM5 Manual для BRP Spyder RS Roadster SM5 - 2010
-
№АртикулНазвание
-
1707000590 Clutch HoseClutch Hose
-
2414920500 Banjo BoltBanjo Bolt
-
3414920600 WasherWasher
-
4707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
5207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6269500725 Nut Housing Ass'yNut Housing Ass'y
-
7707000586 FilterFilter
-
8414227300 ClipClip
-
9708000006 Rubber StopperRubber Stopper
-
10707000756 Intake Support. SM5 ManualIntake Support. SM5 Manual
-
11207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
12707000530 Solenoid ValveSolenoid Valve
-
13707000468 Fuel Line 6.4 mmFuel Line 6.4 mm
-
14707000468 Fuel Line 6.4 mmFuel Line 6.4 mm
-
15513033469 Check ValveCheck Valve
-
16293650042 Oetiker ClampOetiker Clamp
-
17250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
18233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
19293650042 Oetiker ClampOetiker Clamp
