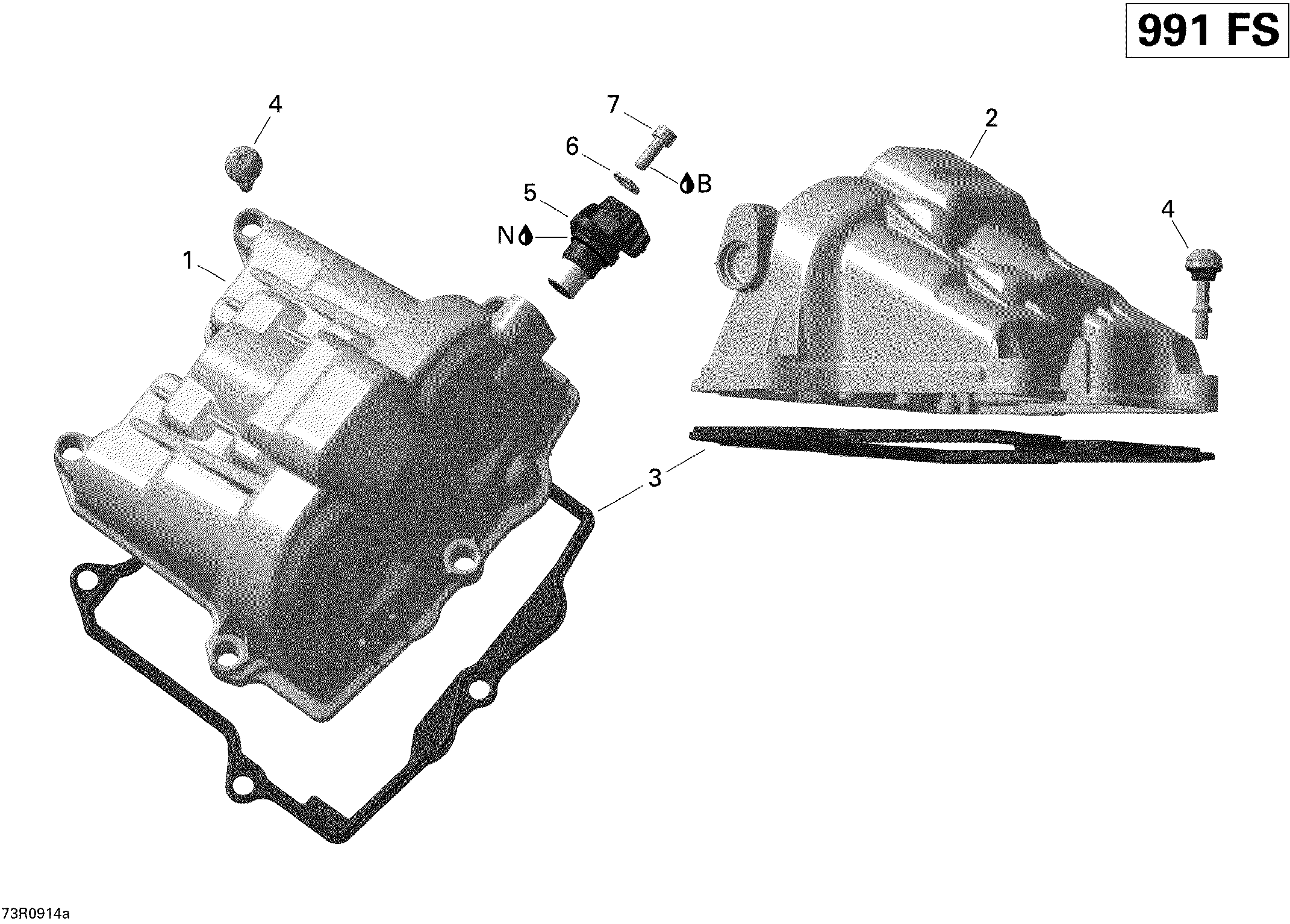

01- Valve Cover для BRP Spyder RS Roadster SM5 - 2010
-
№АртикулНазвание
-
1420611320 Valve Cover, FrontValve Cover, Front
-
2420611325 Valve Cover, RearValve Cover, Rear
-
3420650345 Valve Cover GasketValve Cover Gasket
-
4420241625 Distance ScrewDistance Screw
-
5420664043 Camshaft Position SensorCamshaft Position Sensor
-
6224061121 Flat WasherFlat Washer
-
7420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
