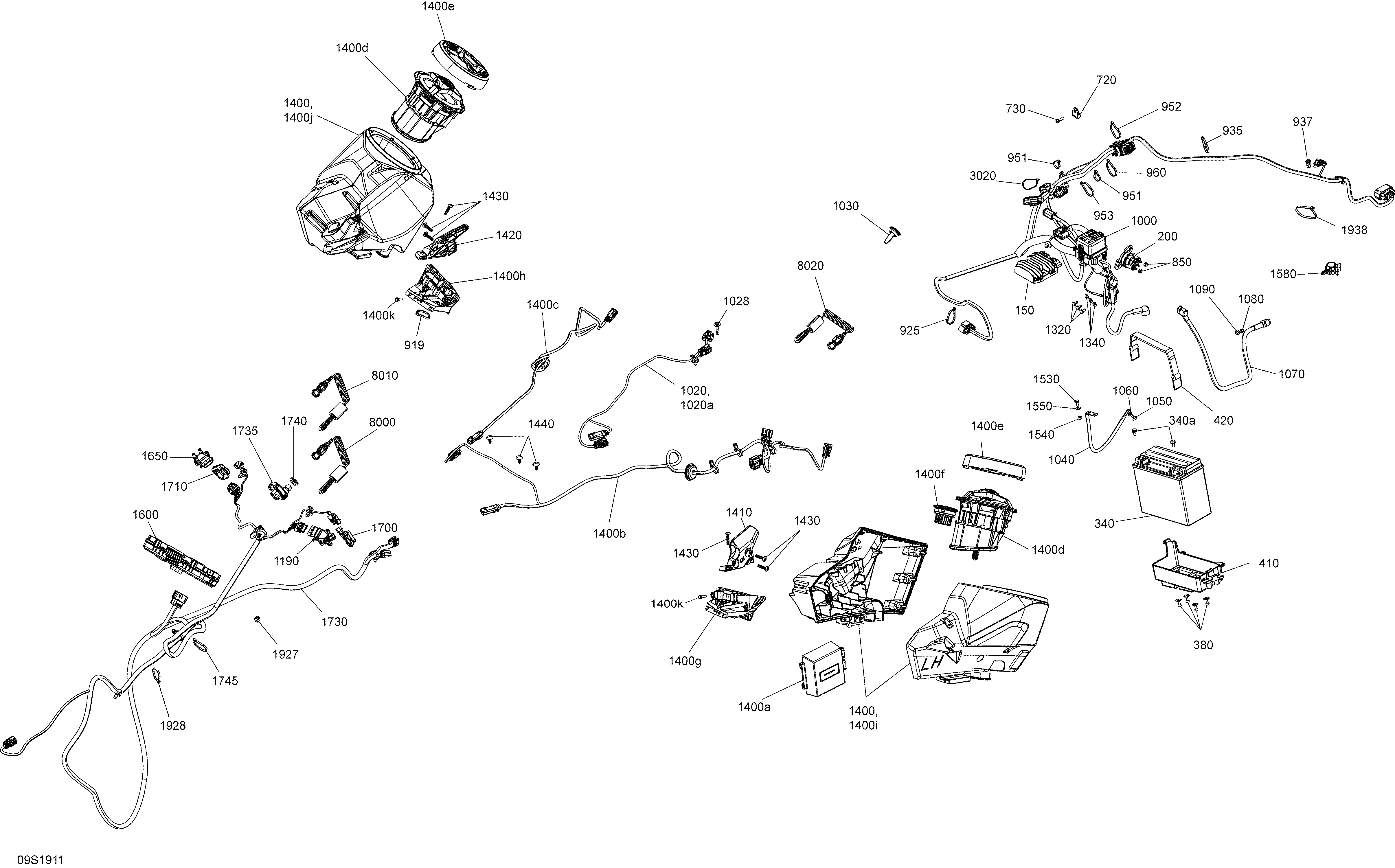

10- Electrical System для BRP 002 - GTX 230 - 2019
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
200278003012 Starter RelayStarter Relay
-
340>340a410301203 Battery Ass'y, 18 Amperes. Includes 340 TO 340aBattery Ass'y, 18 Amperes. Includes 340 TO 340a
-
340a250000282 Battery Bolt KitBattery Bolt Kit
-
380293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
410278003473 Battery SupportBattery Support
-
420293850095 Fuel Tank StrapFuel Tank Strap
-
720293650257 ClampClamp
-
730250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
919414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
927414115200 Tie-Rap 180 mm. Package LTDTie-Rap 180 mm. Package LTD
-
928414115200 Tie-Rap 180 mm. Package LTDTie-Rap 180 mm. Package LTD
-
935293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
937293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
938293750008 Tie-Rap 350 mm. Package LTDTie-Rap 350 mm. Package LTD
-
951414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
952414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
953414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
960414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1000278003707 Wiring Harness Main. Package STDWiring Harness Main. Package STD
-
1000278003708 Wiring Harness Main. Package LTDWiring Harness Main. Package LTD
-
1020>1020a295100710 USB Charger Cable Ass'y. Package LTD. Includes 1020 TO 1020aUSB Charger Cable Ass'y. Package LTD. Includes 1020 TO 1020a
-
1020a710005857 Connector USB wih Cable. Package LTDConnector USB wih Cable. Package LTD
-
1028250000399 Hexagonal Cap Screw M6 X35. Package LTDHexagonal Cap Screw M6 X35. Package LTD
-
1030269502324 USB Plug. Except Package LTDUSB Plug. Except Package LTD
-
1040278003451 Battery Cable GroundBattery Cable Ground
-
1050207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1060234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1070278003369 Cable-StarterCable-Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle SensorLH Throttle Sensor
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1400a278003464 Amplifier. Package Audio, LTDAmplifier. Package Audio, LTD
-
1400b278003497 Harness. Package Audio, LTDHarness. Package Audio, LTD
-
1400c278003462 Speaker Harness. Package Audio, LTDSpeaker Harness. Package Audio, LTD
-
1400d278003463 Speaker. Package Audio, LTDSpeaker. Package Audio, LTD
-
1400e278003466 Speaker Grille. Package Audio, LTDSpeaker Grille. Package Audio, LTD
-
1400f278003465 Remote Control Radio Bluethooth. Package Audio, LTDRemote Control Radio Bluethooth. Package Audio, LTD
-
1400g278003616 Grille Protective LH B-160. Package Audio, LTDGrille Protective LH B-160. Package Audio, LTD
-
1400h278003617 Grille Protective RH B-160. Package Audio, LTDGrille Protective RH B-160. Package Audio, LTD
-
1400i278003735 Enclosure Speaker LH Ass'y. Package Audio, LTDEnclosure Speaker LH Ass'y. Package Audio, LTD
-
1400j278003736 Enclosure Speaker RH Ass'y. Package Audio, LTDEnclosure Speaker RH Ass'y. Package Audio, LTD
-
1400k211000023 Hex. Screw 10-14 X 7/8”. Package Audio, LTDHex. Screw 10-14 X 7/8”. Package Audio, LTD
-
1410278003489 LH Bracket. Package Audio, LTDLH Bracket. Package Audio, LTD
-
1420278003518 RH Bracket. Package Audio, LTDRH Bracket. Package Audio, LTD
-
1430250001007 Screw Torx M6.81 X 30. Package Audio, LTDScrew Torx M6.81 X 30. Package Audio, LTD
-
1440293730011 Black DartBlack Dart
-
1440293730011 Black Dart. Package Audio, LTDBlack Dart. Package Audio, LTD
-
1530207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1540232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1550234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1580278003564 RetainerRetainer
-
1600278003432 Info Gauge CenterInfo Gauge Center
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278003726 Switch Keypad LHSwitch Keypad LH
-
1710278003474 Switch Keypad RHSwitch Keypad RH
-
1730278003712 Wiring Harness HandlebarWiring Harness Handlebar
-
1735515178225 DESS Switch, RFIDDESS Switch, RFID
-
1740278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
1745414115200 Tie-Rap 180 mm. Except InternationalTie-Rap 180 mm. Except International
-
8000278003401 Safety Lanyard Ass'y, Learning / RFIDSafety Lanyard Ass'y, Learning / RFID
-
8010278003400 Safety Lanyard Ass'y, RFID. Except Package LTDSafety Lanyard Ass'y, RFID. Except Package LTD
-
8020278003402 Safety Lanyard Ass'y, RFID. Package LTDSafety Lanyard Ass'y, RFID. Package LTD
